Wago 750-940
EnOcean-RS-485-Gateway; 868 MHz
- MPN
- 750-940
- Category
- I/O Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Wago 750-940?
The EnOcean® RS-485 Gateway integrates maintenance-free, battery-free and wireless sensors/actuators based on EnOcean® wireless technology (ISO/IEC 14543-3-1x) into intelligent control systems such as the WAGO I/O System.
This gateway communicates with the remote station via RS-485 interface and ESP3 telegrams (EnOcean®) or via Modbus® protocol.

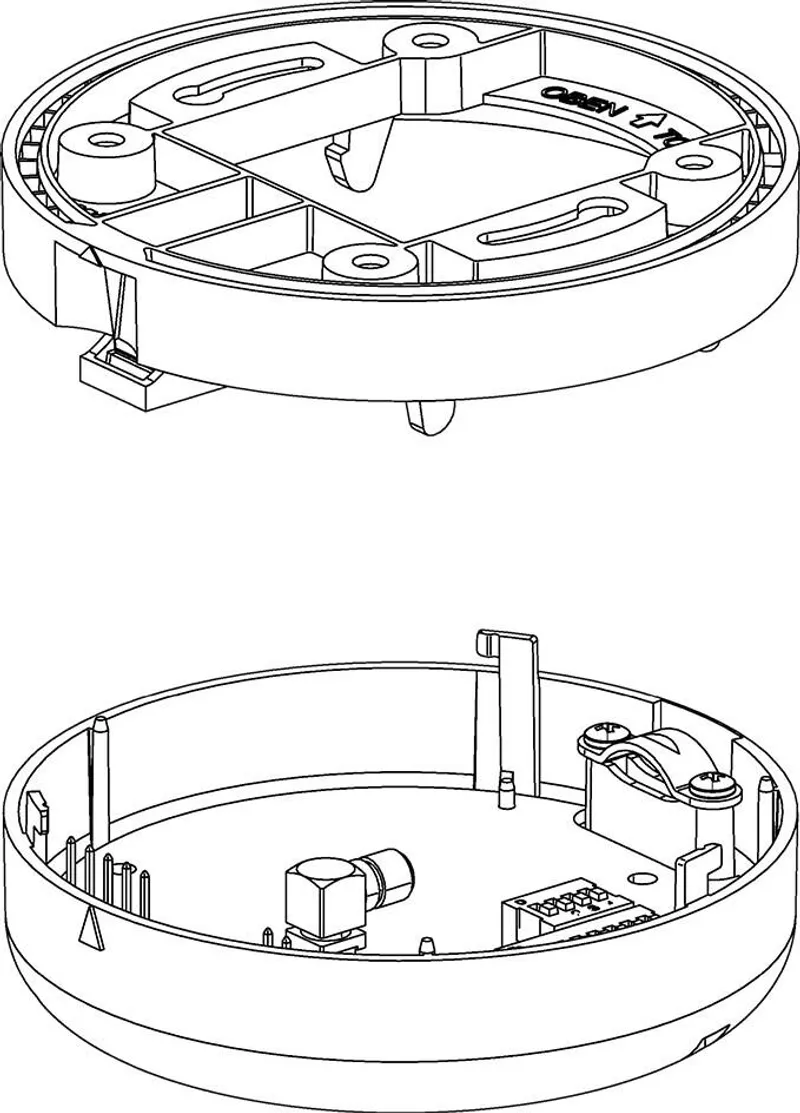

It may be mounted directly to the ceiling or wall. The device can also be mounted on a DIN-rail via an integrated adapter.
The gateway has an internal antenna and also has a connector for an optional external antenna.
Specifications
Technical data
| Communications | RS-485 interface |
| Device-specific | Number of devices that can be connected in series in Modbus mode: max. 10; ESP3 mode: 1:1 connection |
| Radio technology | EnOcean |
| Frequency band | 868 MHz |
| Transmission range | approx. 30 m within buildings; >100 m in open space |
| Antenna | Internal (external antenna optional via SMA socket) |
| Transmission rate | 9.6 … 115.2 kBd |
| Data width | 50 bytes |
| Overvoltage category | III |
Connection data
| Connection technology: communication/fieldbus | 1 x RS-485 connection: 5-pole, 2-conductor compact PCB connectors with PUSH WIRE® (252-155 is included) |
| Connection technology: supply | 1 x 2-pole, 2-conductor compact PCB connectors with PUSH WIRE® (252-152 is included) |
| Connection technology: antenna | 1 x SMA socket for external antenna |
| Connectable conductor materials | Copper |
| Connection type | Communication |
| Solid conductor | 0.4 … 0.8 mm² / 26 … 20 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 inches |
| Connection type | Power supply |
| Solid conductor | 0.4 … 0.8 mm² / 26 … 20 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 inches |
Physical data
| Width | 95 mm / 3.740 inches |
| Height | 36 mm / 1.417 inches |
| Depth | 95 mm / 3.740 inches |
| Diameter | 95 mm |
Material data
| Weight | 97 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -20 … +85 °C |
| Protection type | IP30 |
| Pollution degree | 2 per EN 60664-1, EN 61131-2 |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 + A1 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966154894 |
| Customs tariff number | 84733080000 |
Product Classification
| UNSPSC | 43222628 |
| ETIM 9.0 | EC001604 |
| ETIM 10.0 | EC001604 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 80-43-3 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Peroxide, bis(1-methyl-1-phenylethyl) |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | f38f953b-acc6-4140-9cfc-3cc89b20d806 |
| SCIP notification number (Belgium) | 7efbf432-0309-4ecf-902e-849c230e121d |
| SCIP notification number (Bulgaria) | db79e5c5-c50c-421f-af56-a44f476e877c |
| SCIP notification number (Czech Republic) | ffc70deb-95a2-42e9-88c8-118ddcbe5a41 |
| SCIP notification number (Denmark) | 7e1e2149-d9a8-4aa2-b82f-b374c1720246 |
| SCIP notification number (Finland) | 03ca7456-32c9-432d-b88e-71d6609472fe |
| SCIP notification number (France) | a652e5b9-9cfa-457d-b786-a9ff0fdabdc4 |
| SCIP notification number (Germany) | 8e9f1628-6619-44d9-8934-f2d421821616 |
| SCIP notification number (Hungary) | 4beca8d8-d1eb-4df2-9aa6-950f0fb40a23 |
| SCIP notification number (Italy) | ecb5dcfe-994a-47fd-bb41-1aab19c12e63 |
| SCIP notification number (Netherlands) | 56eeff61-2e4e-4387-b679-b19565e20406 |
| SCIP notification number (Poland) | d2e22828-db60-4780-8021-5e37d79451d7 |
| SCIP notification number (Romania) | 0f2c93a7-04e3-47d6-a93d-5ec70048efa8 |
| SCIP notification number (Sweden) | 7af5f0a7-a7c0-4c8a-bc41-9aec7cea2ad7 |
750-940: frequently asked questions
When can 750-940 be shipped?
750-940 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 750-940 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 750-940 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750-940, subject to availability and destination.
