End Module; 8-way N; Extreme
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 750-600/040-001 be shipped?
750-600/040-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 750-600/040-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 750-600/040-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750-600/040-001, subject to availability and destination.

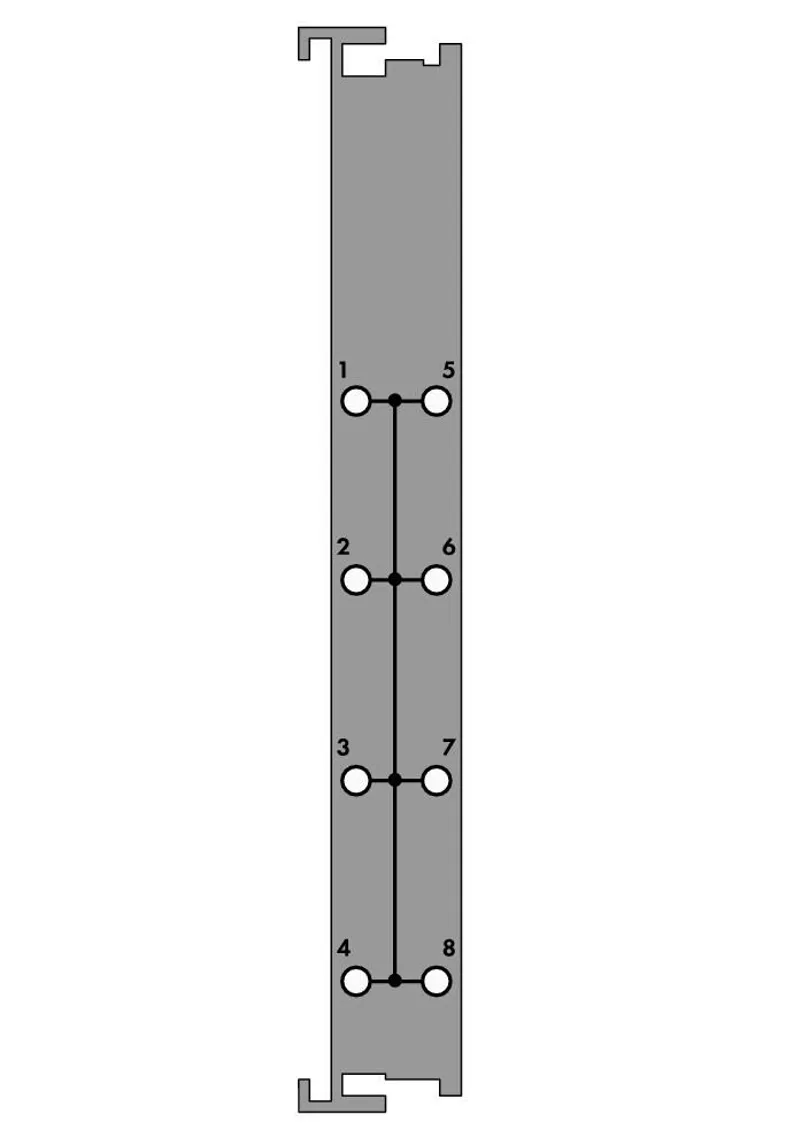

An end module must be snapped onto the assembly at the end of a fieldbus node.<br/>In addition, the eight CAGE CLAMP® connections form a potential group.<br/>The end module completes the internal local data bus, ensuring flawless data transmission.<br/><p><b>The device is ideal for operation in extreme environments thanks to:</b></p><ul><li>An extended temperature range</li><li>Greater immunity to impulse voltages and electromagnetic interference</li><li>Higher vibration and shock resistance</li></ul>
Specifications
Technical data
| Supply voltage (system) | 5 VDC; via data contacts |
| Voltage (potential group) | 0 … 230 VAC/DC; Supply via CAGE CLAMP® contacts |
| Current carrying capacity (supply connections) | 10 A |
| Rated impulse withstand voltage | 5 kV per EN 60870-2-1 / Class VW3, or 6.4 kV per EN 61010-1 |
Connection data
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: field supply | 8 x CAGE CLAMP® |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.94 MJ |
| Weight | 49.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Ambient temperature (installation) | -20 … +70 °C |
| Protection type | IP20 |
| Pollution degree | 2 per EN 60664-1 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | According to type test for marine classification (ABS, BV, DNV, IACS, LR): acceleration: 5g, IEC 60068-2-6, EN 60870-2-2, IEC 60721-3-1, -3, EN 50155, EN 61373 |
| Shock resistance | per IEC 60068-2-27 (10g/16 ms/half-sine/1,000 shocks; 25g/6 ms/half-sine/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966196863 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 32151705 |
| ETIM 9.0 | EC001600 |
| ETIM 10.0 | EC001600 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 4573e29a-c3be-4acd-b2c2-869fdb51c84f |
| SCIP notification number (Belgium) | c4e43730-9d63-4acc-9972-a71ed529e7f6 |
| SCIP notification number (Bulgaria) | 69a0bd29-7104-4919-b09d-596986b3c247 |
| SCIP notification number (Czech Republic) | 9bb6f4fe-631b-439d-9e75-067cb5e57f49 |
| SCIP notification number (Denmark) | caac89ad-437f-4814-933e-e961f9e2c890 |
| SCIP notification number (Finland) | 5792a56c-e380-4253-acb6-d05dedfdf924 |
| SCIP notification number (France) | e82d2897-d4c2-401e-a66e-35d72fea0d46 |
| SCIP notification number (Germany) | d3cf5a81-4819-401f-8a83-deb9cb1a6d00 |
| SCIP notification number (Hungary) | 0e54e9ec-f189-499f-aa6a-f98a40d305b1 |
| SCIP notification number (Italy) | 003d4304-912b-4d0f-b7a9-7717332cea18 |
| SCIP notification number (Netherlands) | ebfacc10-e13c-46d1-910b-ecc5d80f7fbd |
| SCIP notification number (Poland) | 6e4758df-b1d1-4dd7-85c8-3c9389abc78d |
| SCIP notification number (Romania) | ba1e8b54-b7c8-4f47-a1a2-dd3c3ffbae01 |
| SCIP notification number (Sweden) | 91e3a489-8328-4e9a-ae6b-2720e105cfc0 |
