Wago 750-527
4-channel digital output; 30 VAC/VDC; 2.0 A; Solid-state
- MPN
- 750-527
- Category
- I/O Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Wago 750-527?
This digital output module transmits control signals from the automation device to the connected actuators.
The module has four semiconductor switches with very low on-resistance MOSFETs suitable for both AC and DC voltages. The semiconductor outputs are not permanently short-circuit proof so external fusing is required.
The control of the semiconductor outputs is galvanically isolated from the internal system voltage.
The required load voltage is supplied via the power contacts.
The signal states for controlling the four digital outputs are indicated by status LEDs.
Notice:
A suitable supply module (e.g., 750-612) must be provided for AC operation or when using DC voltages >31.2 V!
Specifications
Technical data
| Number of digital outputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Digital |
| Signal type (voltage) | 30 VAC/DC |

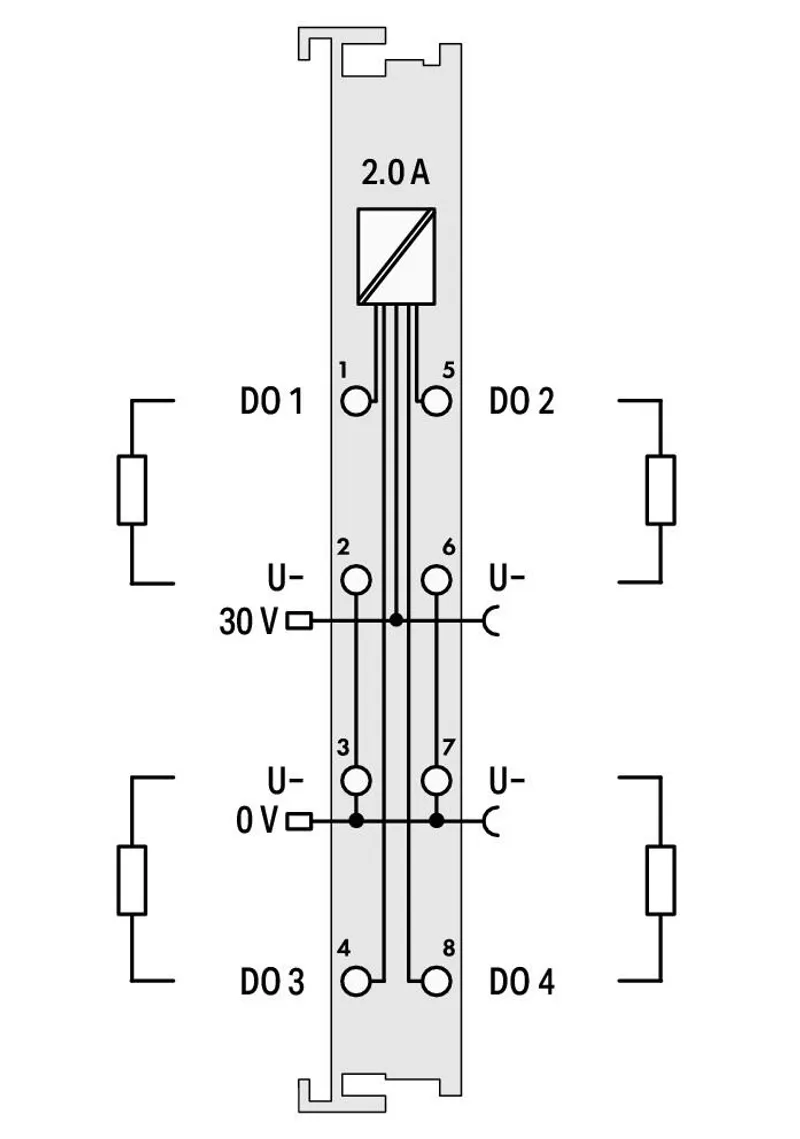

| Actuator connection | 4 x (2-wire) |
| Output characteristic | high-side switching |
| Output current per channel | 2 A |
| Output current (module) | 8 A |
| Output current | requires external fuses |
| Load type | Resistive; inductive (Limit induction voltage peaks externally.) |
| Contact resistance (max.) | 0.04 Ω |
| Contact resistance (typ.) | 0.02 Ω |
| Delay time T_on from 0 to 1 | 1000 µs |
| Delay time T_off from 1 to 0 | 20000 µs |
| Switching frequency (max.) | 1 Hz |
| Inductive load switch-off energy dissipation (max.) | 0.18 J |
| Output data width (internal) max. | 4 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 57 mA |
| Supply voltage (field) | 30 VAC/DC, SELV; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 0 mA |
| Isolation | 500 V system/field |
| Indicators | LED (A, B, E, F) green: Status DO 1 … DO 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
| Overvoltage category | II |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (outputs) |
| Connectable conductor materials | Copper |
| Connection type | Output |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.713 MJ |
| Weight | 50 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Protection class | III |
| Pollution degree | 2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-1, -2; marine applications |
| EMC emission of interference | per EN 61000-6-3, -4; marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966082517 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I, 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | bb5c6f01-2030-4f0d-b3de-1dc108456292 |
| SCIP notification number (Belgium) | d3d45db4-cb1c-4e0a-8831-ddbd466be95f |
| SCIP notification number (Bulgaria) | 81fea41a-a430-4289-9411-07a8d2149d99 |
| SCIP notification number (Czech Republic) | a049cf58-7332-4787-a515-90a66827e0af |
| SCIP notification number (Denmark) | f490eceb-b7d7-4d72-b45a-c73e340e57f5 |
| SCIP notification number (Finland) | 3b1b8f2f-e373-4671-880b-0cbcb5e1f096 |
| SCIP notification number (France) | e5c2b4ec-886e-4089-ad86-d1d920390c8c |
| SCIP notification number (Germany) | 8a13c03d-7678-4f13-8197-f7d36f6346a9 |
| SCIP notification number (Hungary) | ebb2ef68-1783-4784-9ccb-26fcce2b785f |
| SCIP notification number (Italy) | de40bf3c-3b51-43d6-8ac3-3f5ebc8eb6e3 |
| SCIP notification number (Netherlands) | 1113e346-32b8-4e1e-a919-fdc1a03a3820 |
| SCIP notification number (Poland) | f2de0358-7df3-41c4-b94e-f0d8afaa5de9 |
| SCIP notification number (Romania) | 4e139b96-f476-4171-808a-f5ba72dda53f |
| SCIP notification number (Sweden) | b325e016-9077-4c8e-a9ad-5577bf947d62 |
