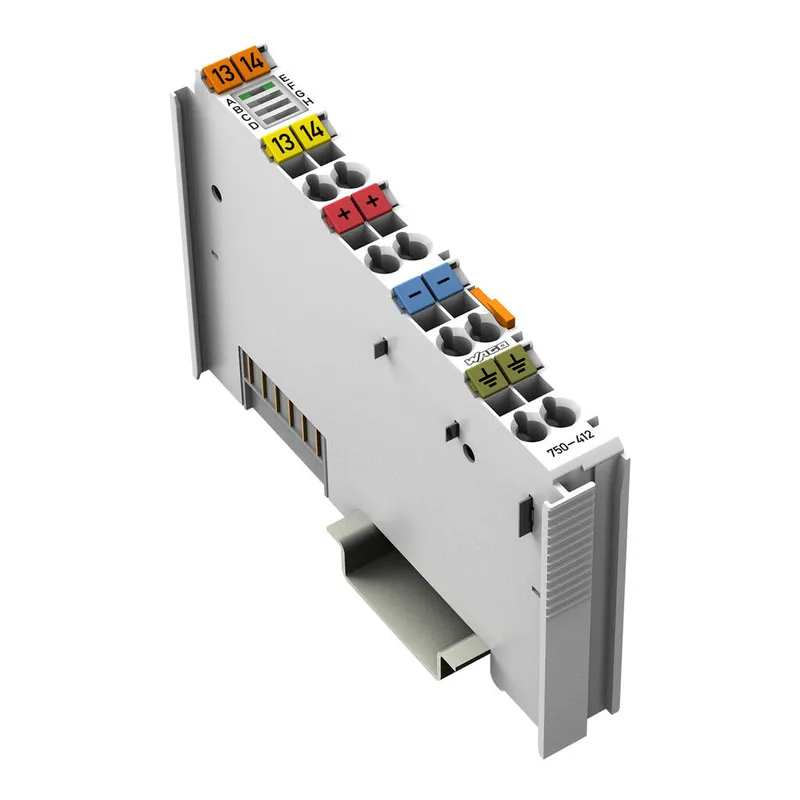

Wago 750-412
2-channel digital input; 48 VDC; 3 ms
- MPN
- 750-412
- Category
- I/O Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 750-412?
This digital input module receives control signals from field devices (e.g., sensors).
Each input module has a noise-rejection filter with a time constant.
Field and system levels are electrically isolated.
Notice: An additional supply module must be added for 48 VDC supply!
Specifications
Technical data
| Number of digital inputs | 2 |
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 48 VDC |
| Sensor supply | 48 VDC |
| Sensor connection | 2 x (2-wire, 3-wire, 4-wire) |
| Input characteristic | high-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (1) typ. | 3.8 mA |
| Voltage range for signal (0) | −6 … +10 VDC |
| Voltage range for signal (1) | 34 … 60 VDC |
| Input data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 2.5 mA |
| Supply voltage (field) | 48 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Indicators | LED (A, C) green: Status DI 1, DI 2 |
| Number of incoming power jumper contacts | 3 |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
Safety and protection
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
| Pluggable connector | fixed |
Material data
| Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.118 MJ |
| Weight | 46 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454682620 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 7c041494-3d46-4a07-adda-eac9a0508f7a |
| SCIP notification number (Belgium) | fc74fe33-08e2-483c-874c-a6cd0d358a93 |
| SCIP notification number (Bulgaria) | 695ec655-1546-4cb4-a6c5-1654d3cb54b1 |
| SCIP notification number (Czech Republic) | c1ea5172-78ca-42d3-ae7e-5c57c87463e9 |
| SCIP notification number (Denmark) | 469368db-05fa-4614-9a51-3f6191835c8a |
| SCIP notification number (Finland) | aad4a0d4-296b-45ed-95b1-e21489f53e32 |
| SCIP notification number (France) | 6b2a17ab-b917-4da5-aafc-cb45ab94ab22 |
| SCIP notification number (Germany) | 22767ce1-2eeb-41f1-b8f2-1e54ed8942e3 |
| SCIP notification number (Hungary) | d917d4aa-5d91-4375-88ab-af8dc7bc0678 |
| SCIP notification number (Italy) | c2752958-4231-4020-b257-87698af2bba4 |
| SCIP notification number (Netherlands) | af3834f3-fc5f-4179-8715-71b1ac7849db |
| SCIP notification number (Poland) | 6e3519cc-c9fc-4a77-a457-d1ed6715df6a |
| SCIP notification number (Romania) | 4eb3fbec-3642-4367-9d7b-c123e491618a |
| SCIP notification number (Sweden) | 31abb057-4ebf-49ec-a118-f3bdac6ea653 |
