Wago 706-7753/304-200

System cable; for -I/O-SYSTEM, 750 Series; 2 x 8 analog inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²

MPN
706-7753/304-200
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-7753/304-200?

Short description:

WAGO's Interface Cables provide fast and easy connection of WAGO I/O Modules equipped with a 20-pole pluggable connector. The following WAGO I/O Modules and Interface Adapters are compatible:

750-1500 (16 DO) -- > 857-981 (DO)

750-1502 (8 DO/8 DI) --> 857-981 (DO) and 857-982 (DI)

The cables are available in 1-, 2- and 3-meter lengths; each has one 20-pole or two 14-pole pluggable connectors at both ends.

They are suitable for system wiring when paired with 857-981 and 857-982 Interface Adapters.

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Inputs/outputs2 x 8 analog inputs or outputs
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Connection data

Cable typeLiYY

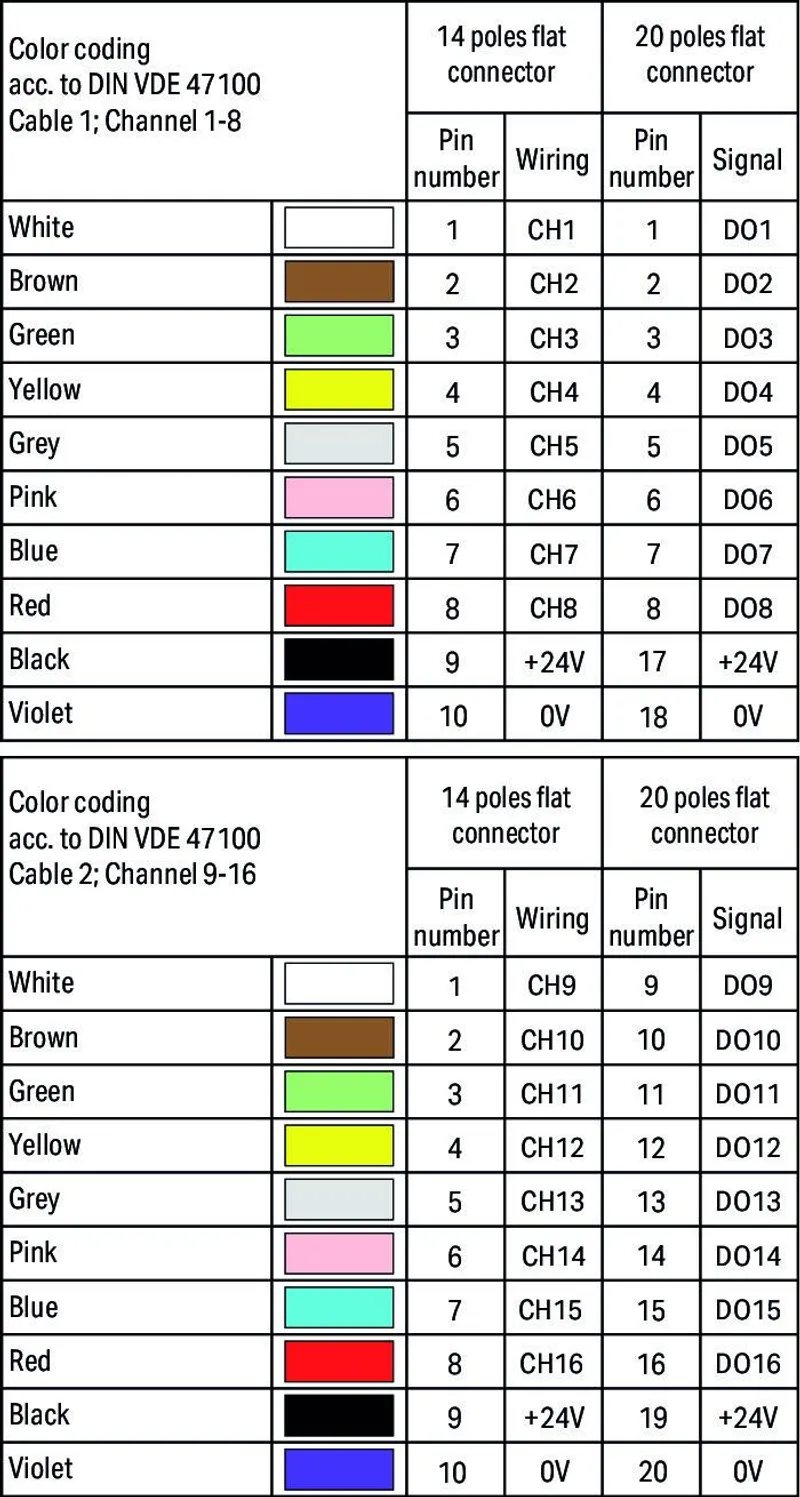

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 120
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

ConnectorPluggable connector per DIN 41651; female connector
Pole number14
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 3

ConnectorPluggable connector per DIN 41651; female connector
Pole number14
Connection typeSystem

Physical data

Cable length2 m

Material data

Weight181 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

Product Group30 (WAGO France)
PU (SPU)1 pcs
Packaging typebox
Country of originFR
GTIN4050821034186
Customs tariff number85444290900

Product Classification

UNSPSC26121604
eCl@ss 10.027-06-03-11
eCl@ss 9.027-06-03-11
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
