Wago 706-5030/301-200

System cable; for GE Fanuc 9030; 2x 8 digital inputs or outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm²

MPN
706-5030/301-200
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-5030/301-200?

System cable; for GE Fanuc 9030; 2x 8 digital inputs or outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm² 706-5030/301-200

Specifications

Notes

NoteIf less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L.

Electrical data

Inputs/outputs2 x 8 digital inputs or outputs; for higher voltages
Operating voltage≤ 250 VAC/VDC
Current per wire (max.)0.75 A

Compatibility - GE Fanuc

GE Fanuc 9030IC693 MAR590, IC693 MDL230, IC693 MDL231, IC693 MDL930, IC693 MDR390

Connection data

Cable typeLiYY

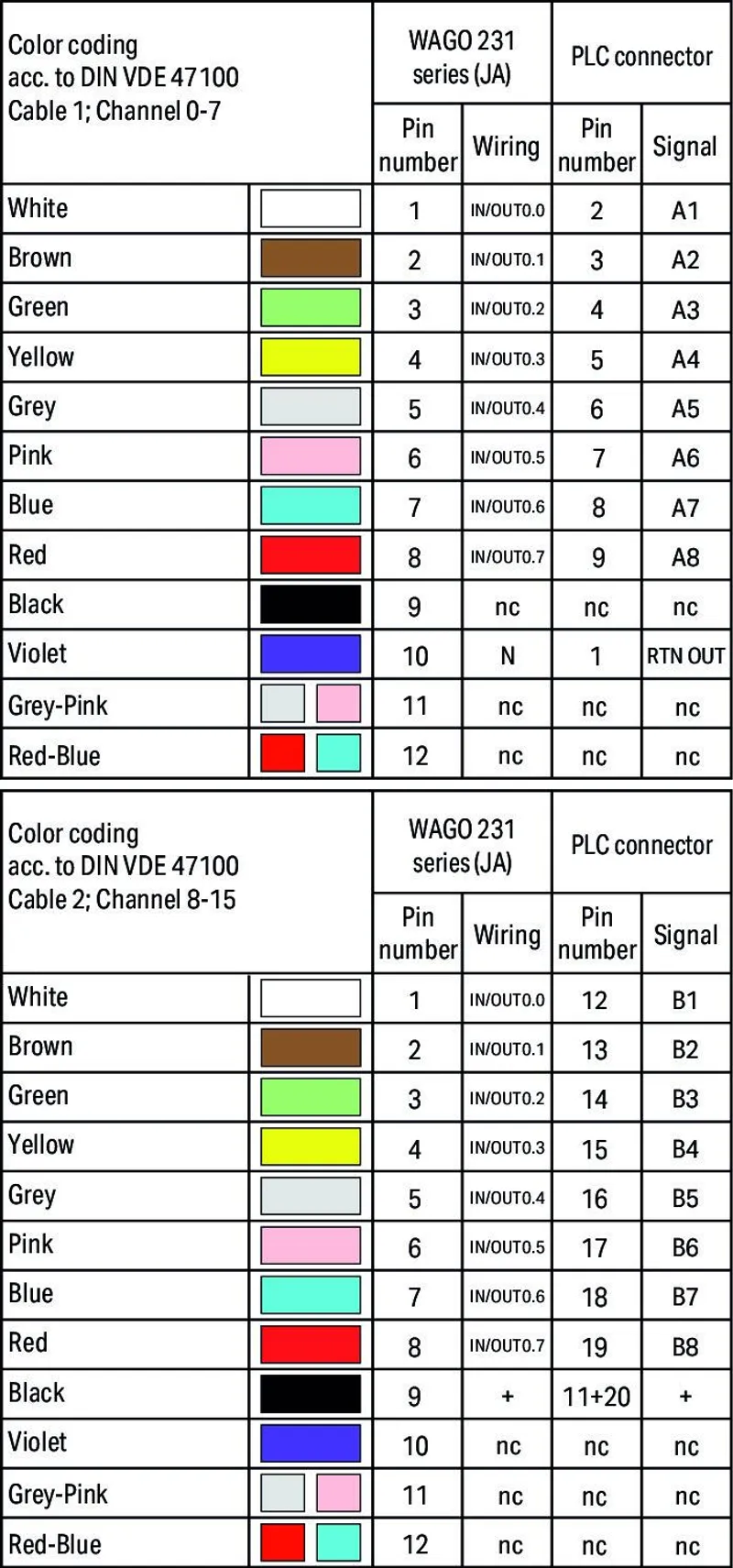

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorWAGO 231 Series
Pole number 110
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 2

ConnectorWAGO 231 Series
Pole number10
Connection typeSystem
Wire cross-section0.34 mm²

Connection data - Connection 3

ConnectorGeFanuc IC 693 ACC 311
Pole number20
Connection typeSystem

Physical data

Cable length2 m

Material data

Weight660 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebag
Country of originFR
GTIN4055143986342
Customs tariff number85444290900

Product Classification

UNSPSC26121629
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-5030/301-200: frequently asked questions

When can 706-5030/301-200 be shipped?

706-5030/301-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-5030/301-200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-5030/301-200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-5030/301-200, subject to availability and destination.
