System cable; for Rockwell Compact Logix; 6 analog inputs or outputs (current); Length: 3 m; Conductor cross-section: 0.25 mm² 706-4769/600-300
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1 A. |
| Inputs/outputs | 6 analog inputs or outputs; current |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 2 A |
| Rockwell Compact Logix | 1769 - IF4XOF2 (F) |
| Cable type | LiYCY |

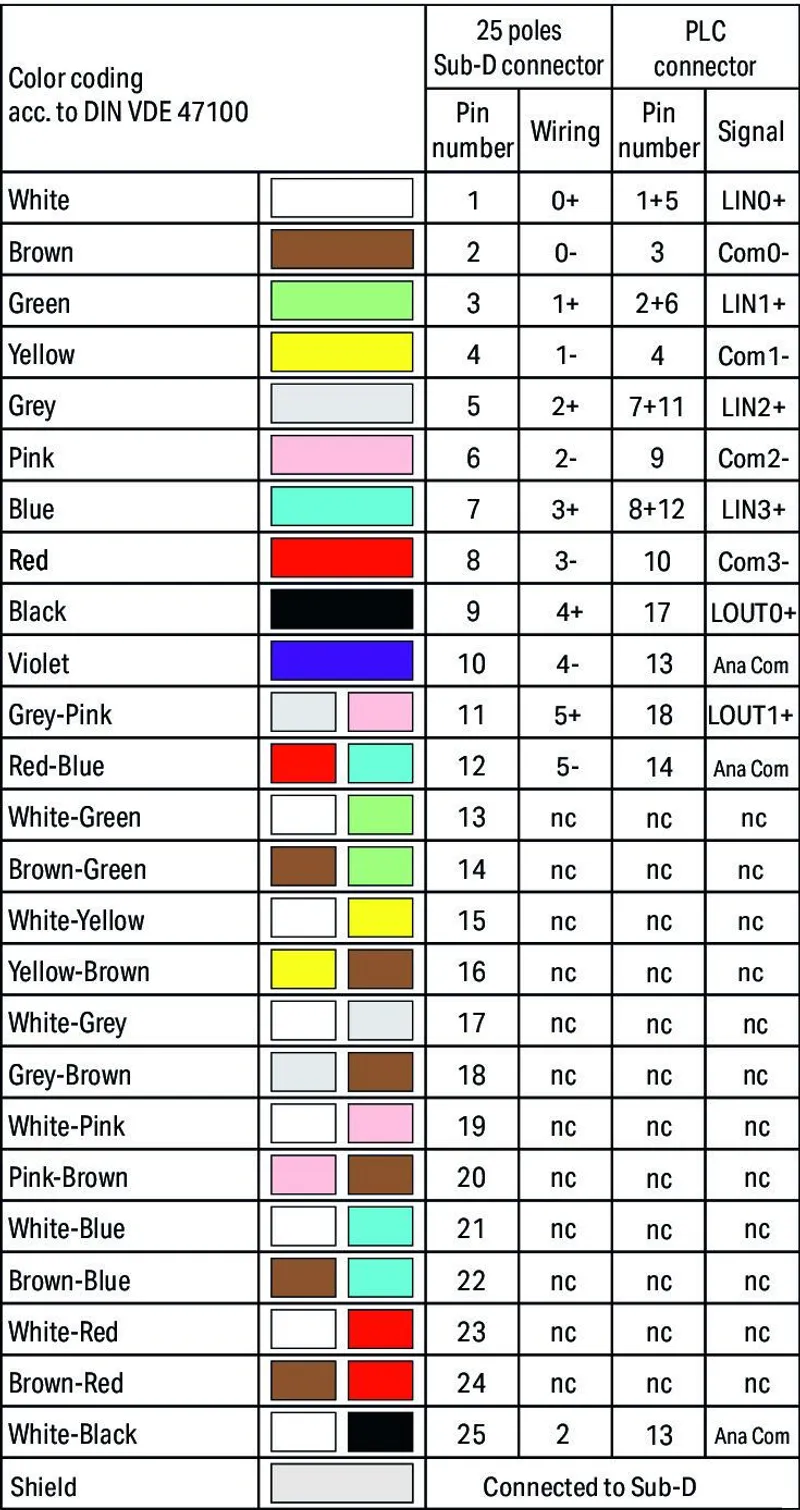

| Color code | per DIN VDE 47100 |
| Pluggable connector | D-subminiature female connector |
| Pole number 1 | 25 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Connector | Rockwell RTBN18 |
| Pole number | 18 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Cable length | 3 m |
| Weight | 1.1 g |
| Ambient temperature (operation) | -20 … +50 °C |
| PU (SPU) | 1 pcs |
| Packaging type | box |
| GTIN | 4055143048576 |
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
No matching specifications
706-4769/600-300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for 706-4769/600-300 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-4769/600-300, subject to availability and destination.
