System cable; for Rockwell Compact Logix; 8 analog outputs; Length: 2 m; Conductor cross-section: 0.25 mm² 706-4769/502-200
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1 A. |
| Inputs/outputs | 8 analog outputs |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 2 A |
| Rockwell Compact Logix | 1769 - OF8C, 1769 - OF8V |
| Cable type | LiYCY |

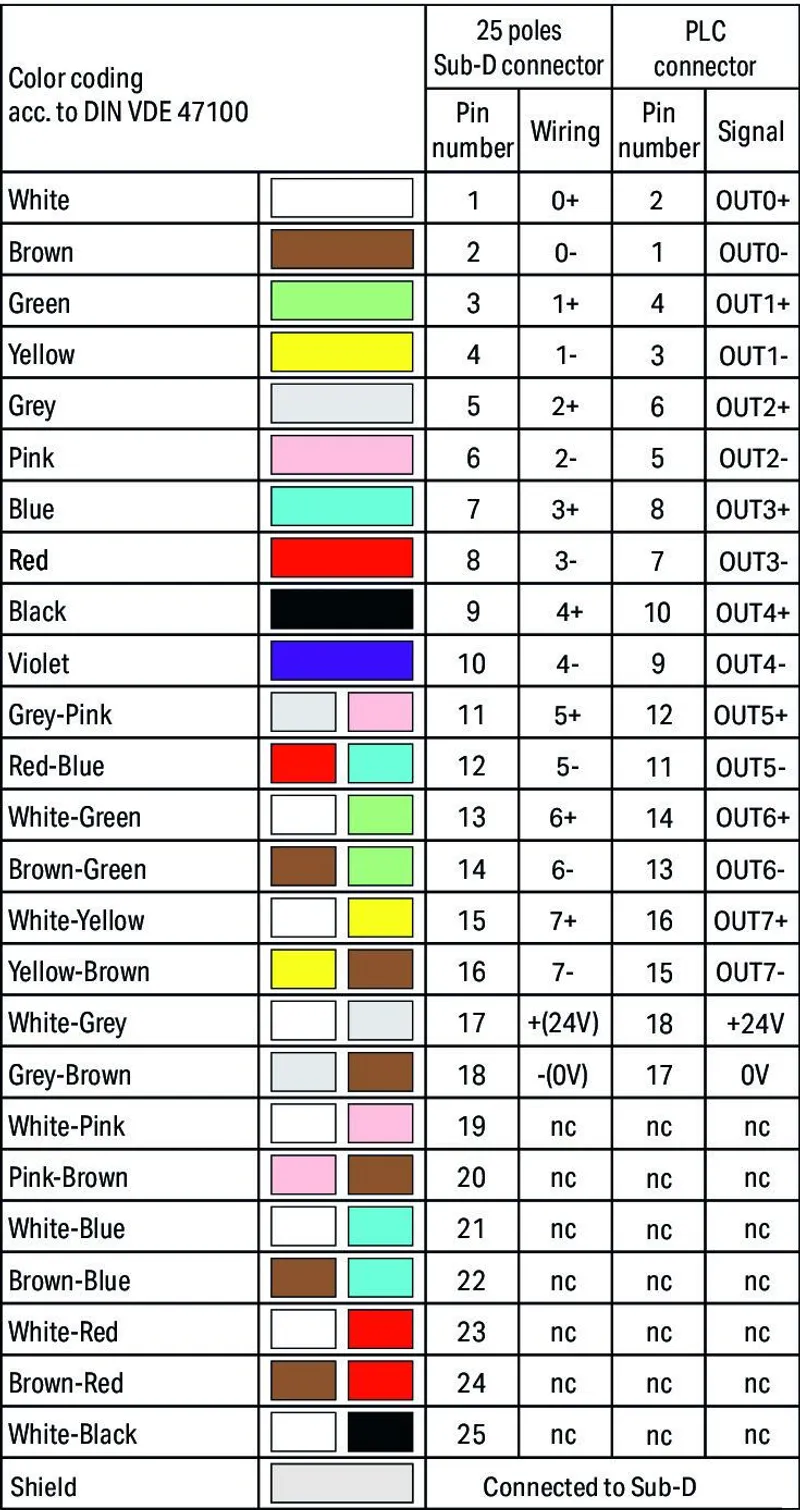

| Color code | per DIN VDE 47100 |
| Pluggable connector | D-subminiature female connector |
| Pole number 1 | 25 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Connector | D-subminiature female connector |
| Pole number | 18 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Connector | Rockwell RTBN18 |
| Connection type | System |
| Cable length | 2 m |
| Weight | 1.1 g |
| Ambient temperature (operation) | -20 … +50 °C |
| PU (SPU) | 1 pcs |
| Packaging type | box |
| GTIN | 4045454883386 |
| Customs tariff number | 85444290900 |
| UNSPSC | 26121604 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
