What is the Wago 706-4756/405-300?

System cable; for Rockwell Control Logix; 8 analog inputs (voltage), var. 1; Length: 3 m; Conductor cross-section: 0.25 mm² 706-4756/405-300

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 1 A.

Electrical data

Inputs/outputs8 analog inputs; voltage
Operating voltage≤ 125 VAC/VDC
Current per wire (max.)2 A

Compatibility - Rockwell

Rockwell Control Logix1756 - IF8H

Connection data

Cable typeLiYCY

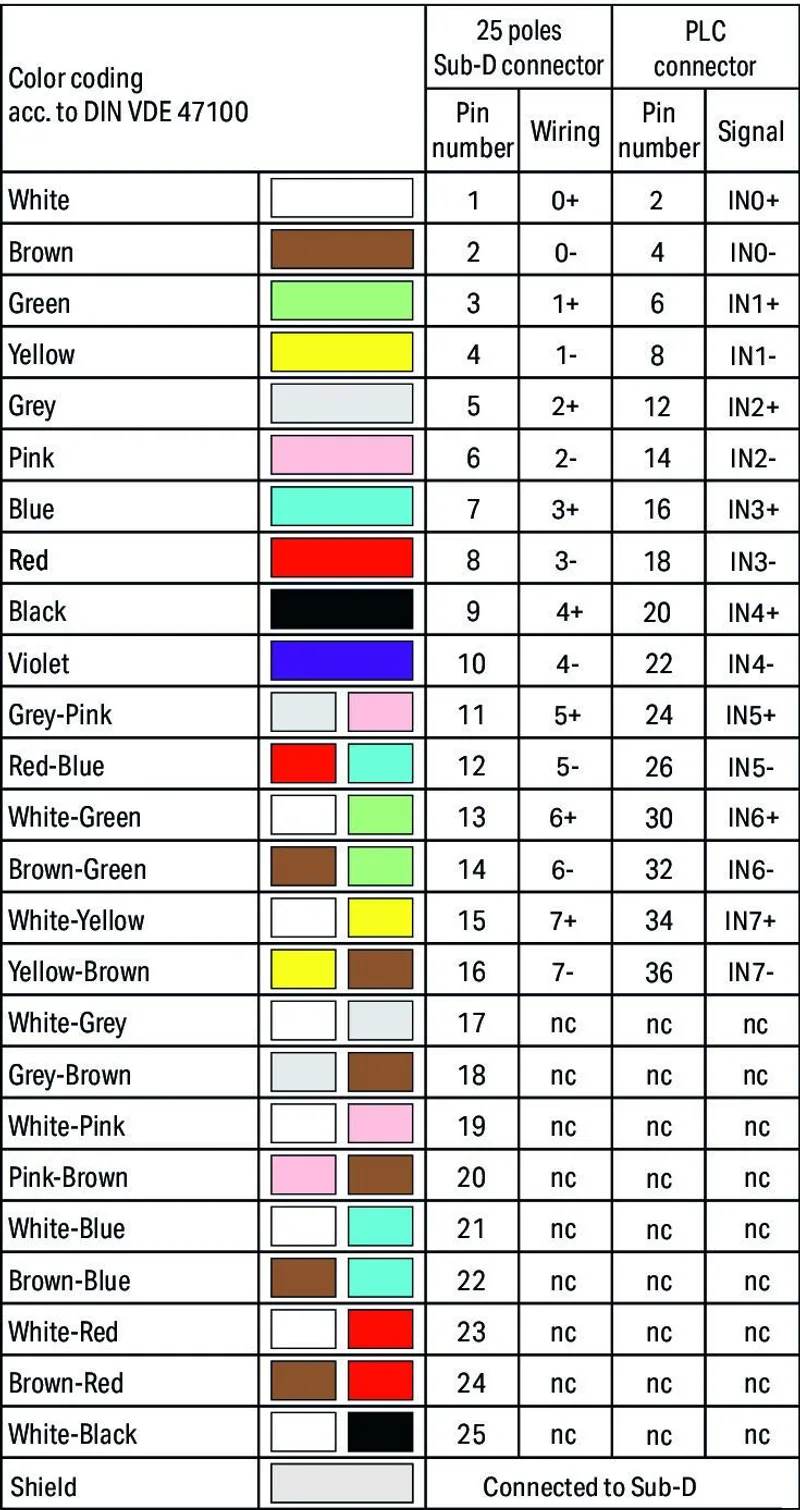

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorD-subminiature female connector
Pole number 125
Connection typeSystem
Wire cross-section0.25 mm²

Connection data - Connection 2

ConnectorAllen Bradley 1756-TBS6H/A
Pole number36
Connection typeSystem
Wire cross-section0.25 mm²

Physical data

Cable length3 m

Material data

Weight1.1 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebox
GTIN4055143046602

Product Classification

UNSPSC26121604
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
