System cable; for Schneider Modicon Quantum; 2 x 16 digital inputs or outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm² 706-3140/300-200
| Note | If less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. |
| Inputs/outputs | 2 x 16 digital inputs or outputs; for higher voltages |
| Operating voltage | ≤ 250 VAC/VDC |
| Current per wire (max.) | 0.75 A |
| Schneider Modicon Quantum | 140 DAI 340 00, 140 DAI 353 00, 140 DAI 440 00, 140 DAI 453 00, 140 DAI 540 00, 140 DAI 543 00, 140 DAI 553 00, 140 DAI 740 00, 140 DAI 753 00, 140 DAO 840 00, 140 DAO 840 10, 140 DRA 840 00 |
| Cable type | LiYY |

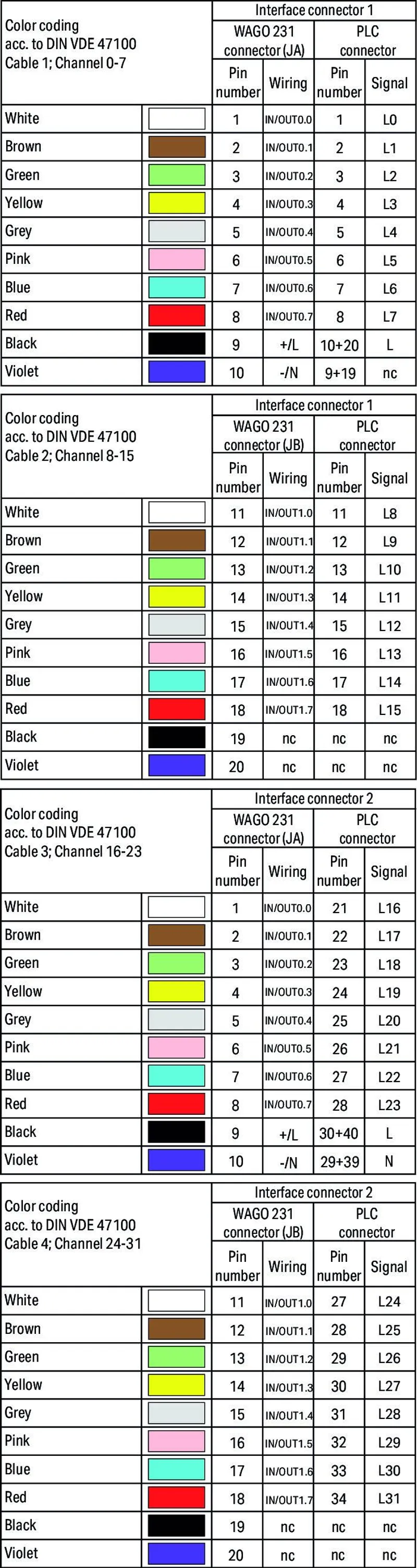

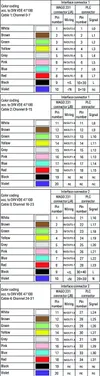

| Color code | per DIN VDE 47100 |
| Pluggable connector | WAGO 231 Series |
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
| Connector | WAGO 231 Series |
| Pole number | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
| Connector | WAGO 231 Series |
| Pole number | 10 |
| Connection type | System |
| Connector | WAGO 231 Series |
| Pole number | 10 |
| Connection type | System |
| Connector 5 | Schneider 140XTS00200 |
| Pole number | 40 |
| Connection type | System |
| Cable length | 2 m |
| Weight | 1408 g |
| Ambient temperature (operation) | -20 … +50 °C |
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | FR |
| GTIN | 4055143980241 |
| Customs tariff number | 85444290900 |
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
No matching specifications
706-3140/300-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for 706-3140/300-200 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-3140/300-200, subject to availability and destination.
