Wago 706-3057/1300-200

System cable; for Schneider TSX; 16 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²; UR components

MPN
706-3057/1300-200
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-3057/1300-200?

Short description:

WAGO's Interface Cables provide fast and easy connection of WAGO I/O Modules equipped with a 20-pole pluggable connector (750‐1400, ‐1402, ‐1500, ‐1501, ‐1502) to the appropriate interface or relay modules (16‐channel) featuring a 20-pole pluggable connector.

The cables are available in 1-, 2- and 3-meter lengths; each has one 20-pole pluggable connector at both ends.

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Inputs/outputs16 digital inputs or outputs
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Connection data

Cable typeLiYY

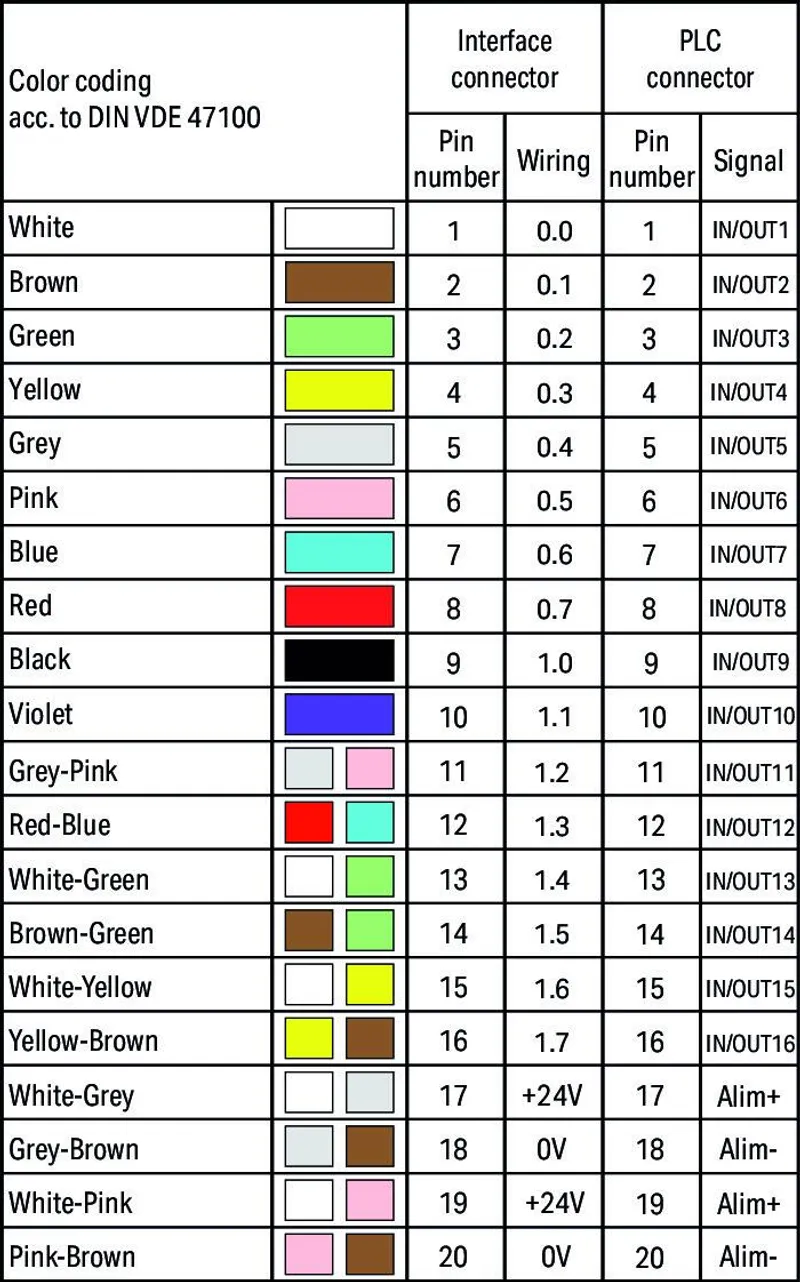

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 120
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

ConnectorPluggable connector per DIN 41651; female connector
Pole number20
Connection typeSystem
Wire cross-section0.14 mm²

Physical data

Cable length2 m

Material data

Weight10 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

Product Group30 (WAGO France)
PU (SPU)1 pcs
Packaging typebag
Country of originQU
GTIN4050821008729
Customs tariff number85444290900

Product Classification

UNSPSC26121604
eCl@ss 10.027-06-03-11
eCl@ss 9.027-06-03-11
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-3057/1300-200: frequently asked questions

When can 706-3057/1300-200 be shipped?

706-3057/1300-200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-3057/1300-200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-3057/1300-200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-3057/1300-200, subject to availability and destination.
