Wago 706-2500/603-200

System cable; for Siemens S7-1500; 4 analog inputs and 2 analog outputs, voltage; Length: 2 m; Conductor cross-section: 0.25 mm²

MPN
706-2500/603-200
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2500/603-200?

System cable; for Siemens S7-1500; 4 analog inputs and 2 analog outputs, voltage; Length: 2 m; Conductor cross-section: 0.25 mm² 706-2500/603-200

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 1 A.

Electrical data

Inputs/outputs4 analog inputs and 2 analog outputs; voltage
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)2 A

Compatibility - Siemens

Siemens S7-15006ES7 534-7QE00-0AB0

Connection data

Cable typeLiYCY

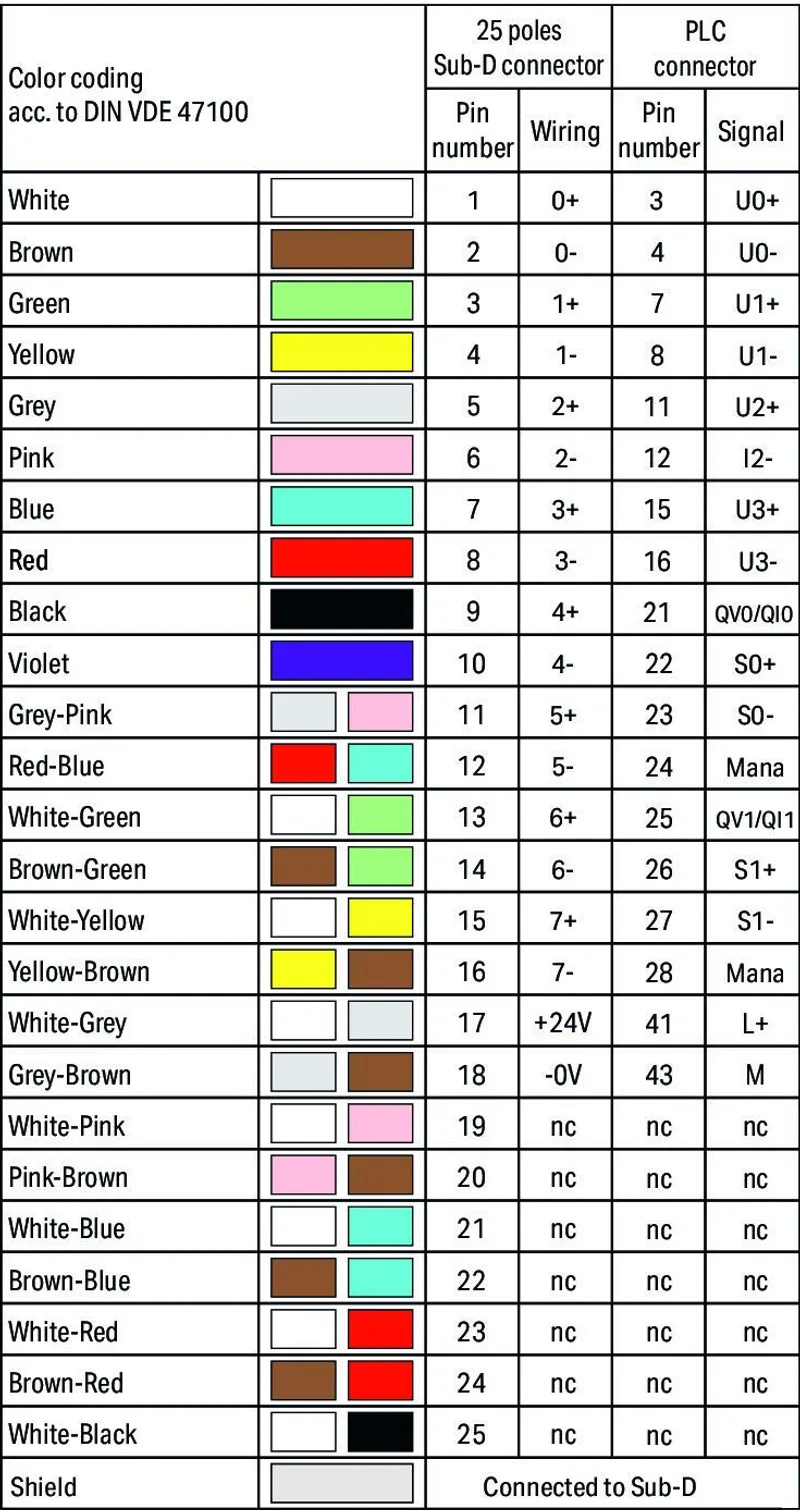

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorD-subminiature female connector
Pole number 125
Connection typeSystem
Wire cross-section0.25 mm²

Connection data - Connection 2

ConnectorSiemens 6ES7-592-1AM00-0XB0
Pole number40
Connection typeSystem
Wire cross-section0.25 mm²

Physical data

Cable length2 m

Material data

Weight567 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebag
GTIN4055143595568
Customs tariff number85444290900

Product Classification

UNSPSC26121604
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
