Wago 706-2500/409-300

System cable; for Siemens S7-1500; 8 analog inputs or outputs; D-subminiature; Length: 3 m

MPN
706-2500/409-300
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2500/409-300?

System cable; for Siemens S7-1500; 8 analog inputs or outputs; D-subminiature; Length: 3 m 706-2500/409-300

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 1 A.

Electrical data

Inputs/outputs8 analog inputs or outputs
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)2 A

Connection data

Cable typeLiYCY

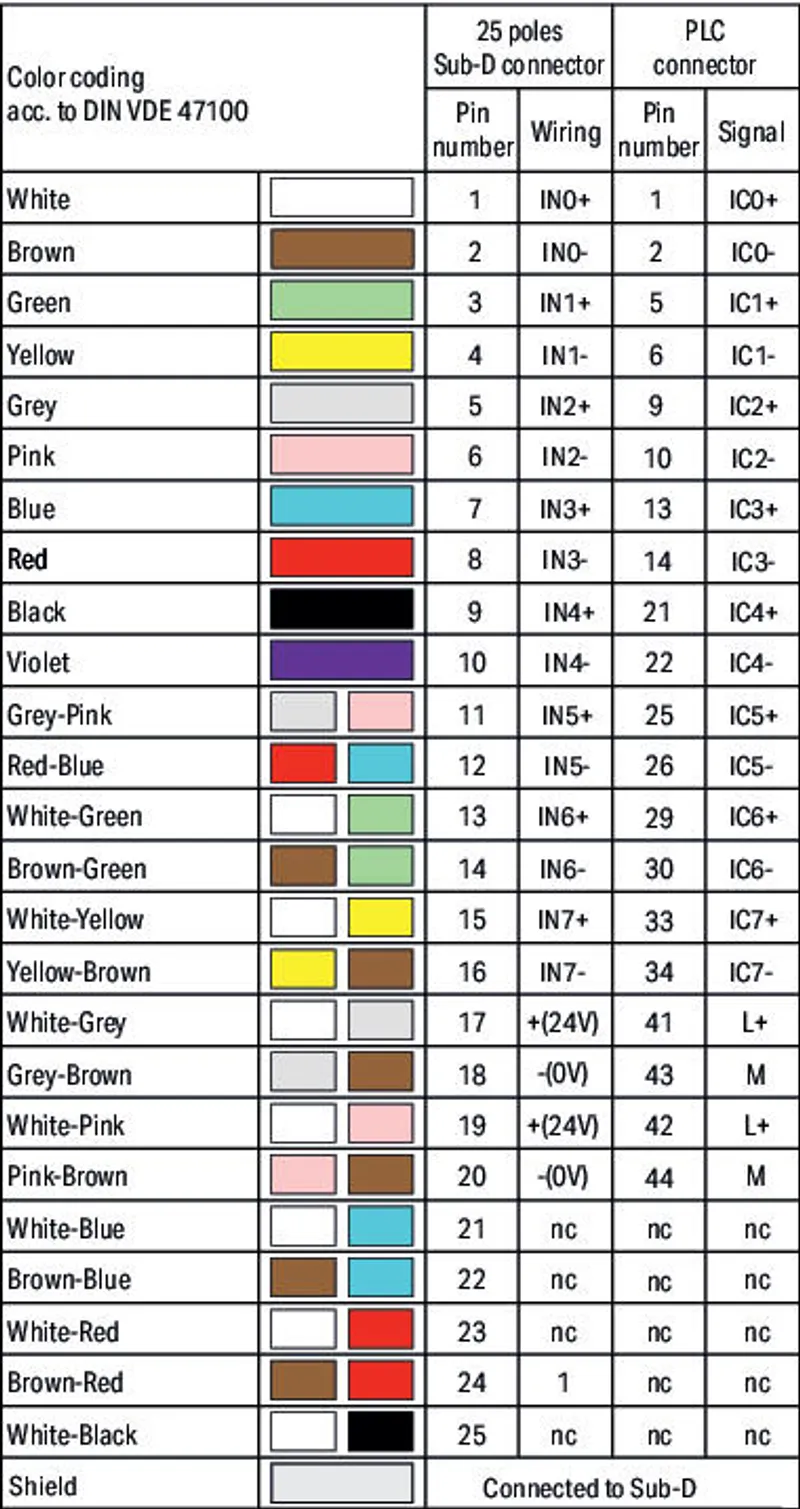

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorD-sub female connector
Pole number 125
Connection typeSystem
Wire cross-section0.25 mm²

Connection data - Connection 2

ConnectorSiemens 6ES7-592-1BM00-0XB0
Pole number40
Connection typeSystem
Wire cross-section0.25 mm²

Physical data

Cable length3 m

Material data

Weight716 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typeBag
Country of originFR
GTIN4066966262728
Customs tariff number85444290900

Product Classification

UNSPSC26121604
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
