System cable; for Siemens S7-300; 8 analog outputs (current); Length: 3 m; Conductor cross-section: 0.25 mm²
System cable; for Siemens S7-300; 6 analog inputs or outputs (voltage); Length: 1 m; Conductor cross-section: 0.25 mm²
System cable; for Siemens S7-300; 6 analog inputs or outputs (voltage); Length: 1 m; Conductor cross-section: 0.25 mm² 706-2300/602-100
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1 A. |
| Inputs/outputs | 6 analog inputs or outputs; voltage |
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 2 A |
| Siemens S7-300 | 6ES7 334-0CE01-0AA0 |
| Cable type | LiYCY |

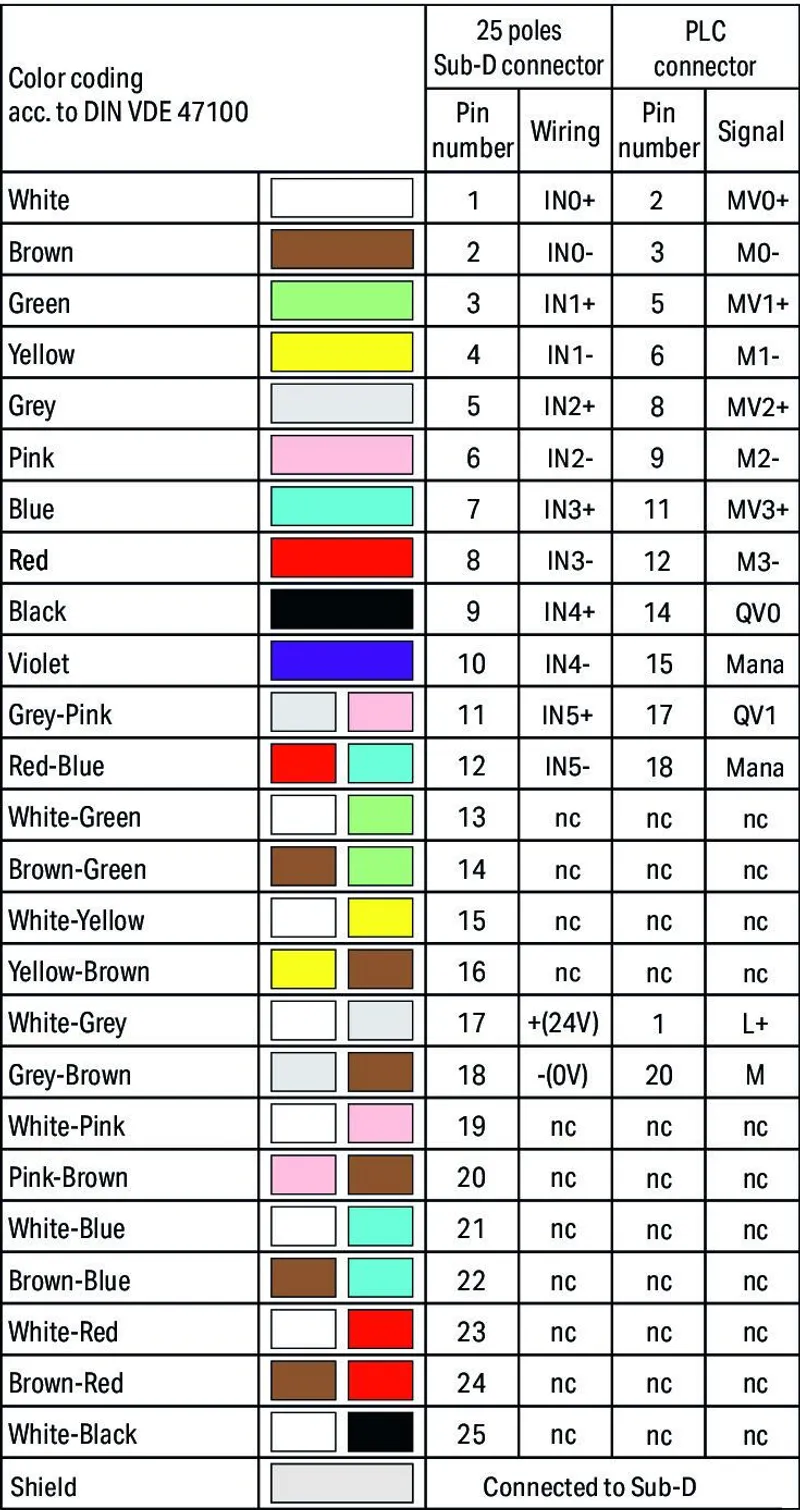

| Color code | per DIN VDE 47100 |
| Pluggable connector | D-subminiature female connector |
| Pole number 1 | 25 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Connector | Siemens 6ES7-392-1BJ00-0AA0 |
| Pole number | 20 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
| Cable length | 1 m |
| Weight | 257 g |
| Ambient temperature (operation) | -20 … +50 °C |
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | FR |
| GTIN | 4055143976794 |
| Customs tariff number | 85444290900 |
| UNSPSC | 26121629 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
