Wago 706-2300/502-300

System cable; for Siemens S7-300; 8 analog outputs (current); Length: 3 m; Conductor cross-section: 0.25 mm²

MPN
706-2300/502-300
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2300/502-300?

System cable; for Siemens S7-300; 8 analog outputs (current); Length: 3 m; Conductor cross-section: 0.25 mm² 706-2300/502-300

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 1 A.

Electrical data

Inputs/outputs8 analog outputs; current
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)2 A

Compatibility - Siemens

Siemens S7-3006ES7 332-5HF00-0AB0

Connection data

Cable typeLiYCY

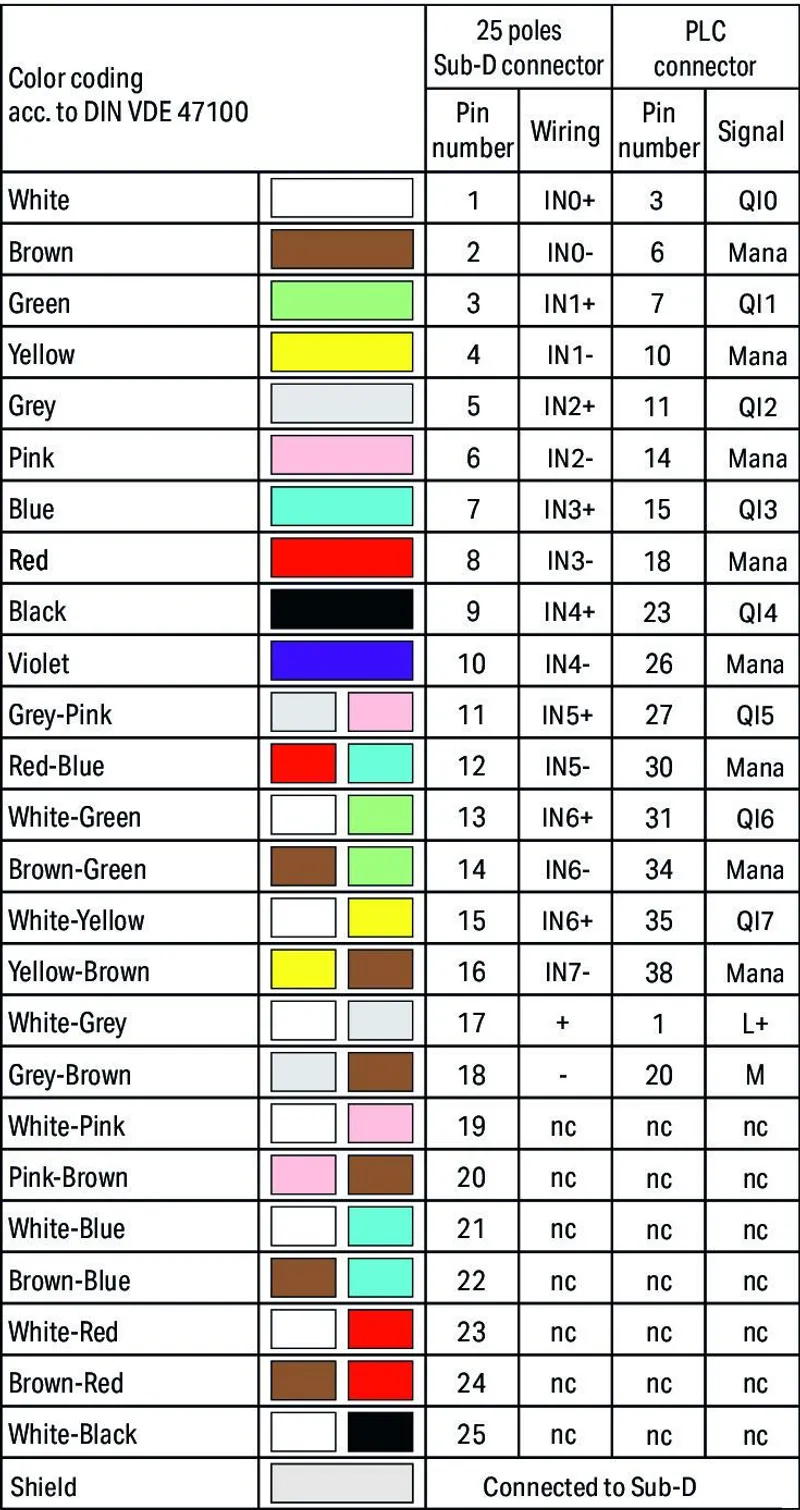

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorD-subminiature female connector
Pole number 125
Connection typeSystem
Wire cross-section0.25 mm²

Connection data - Connection 2

ConnectorSiemens 6ES7-392-1BJ00-0AA0
Pole number40
Connection typeSystem
Wire cross-section0.25 mm²

Physical data

Cable length3 m

Material data

Weight405 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

Product Group30 (WAGO France)
PU (SPU)1 pcs
Packaging typenot specified
Country of originFR
GTIN4045454875053
Customs tariff number85444290900

Product Classification

UNSPSC26121604
eCl@ss 10.027-24-22-20
eCl@ss 9.027-24-22-20
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
