Wago 706-2300/405-100

System cable; for Siemens S7-300; 8 analog inputs (voltage), var. 1; Length: 1 m; Conductor cross-section: 0.25 mm²

MPN
706-2300/405-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2300/405-100?

System cable; for Siemens S7-300; 8 analog inputs (voltage), var. 1; Length: 1 m; Conductor cross-section: 0.25 mm² 706-2300/405-100

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 1 A.

Electrical data

Inputs/outputs8 analog inputs; voltage
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)2 A

Compatibility - Siemens

Siemens S7-3006ES7 331-7NF00-0AB0

Connection data

Cable typeLiYCY

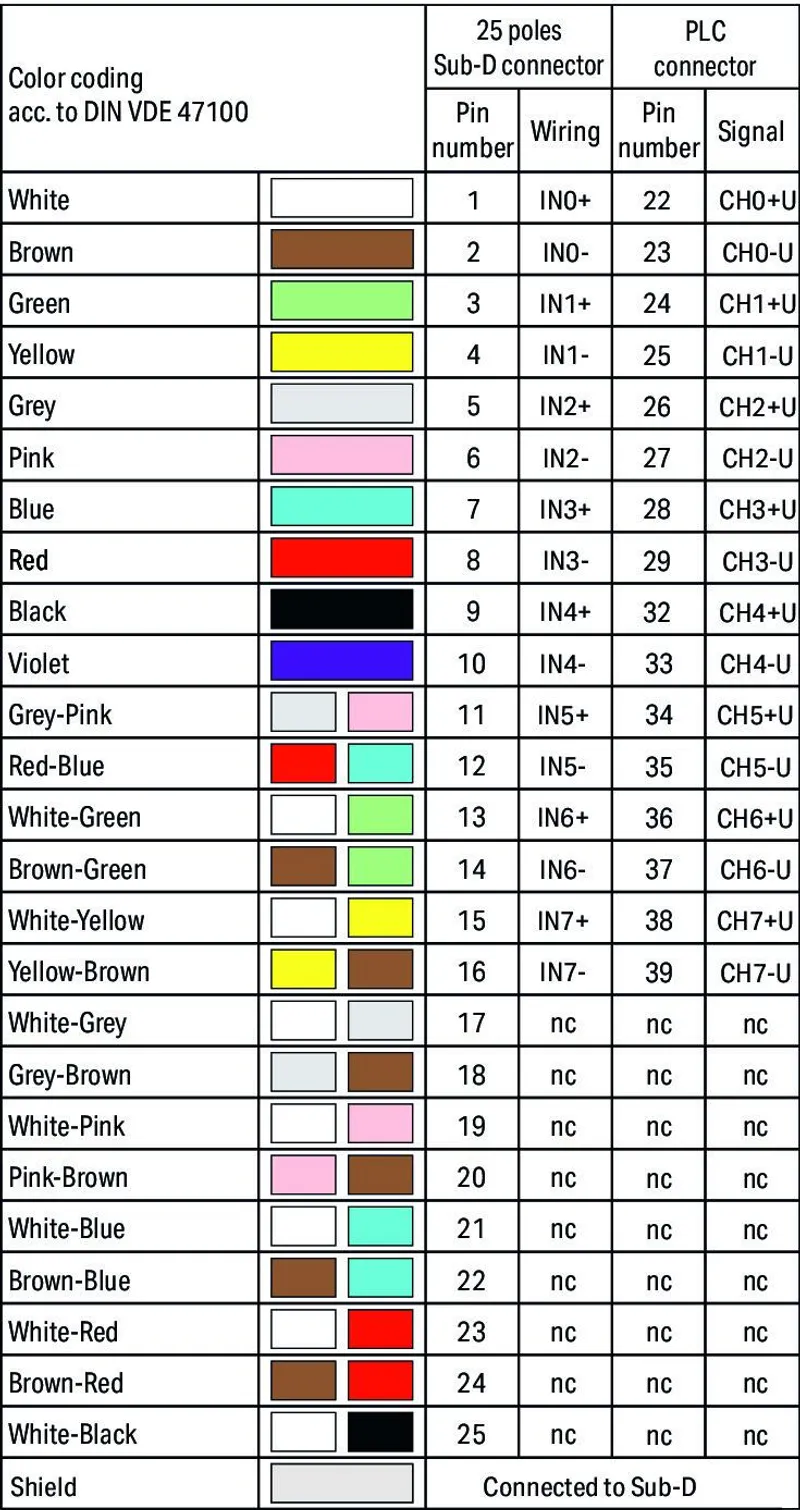

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorD-subminiature female connector
Pole number 125
Connection typeSystem
Wire cross-section0.25 mm²

Connection data - Connection 2

ConnectorSiemens 6ES7-392-1BM00-0AA0
Pole number40
Connection typeSystem
Wire cross-section0.25 mm²

Physical data

Cable length1 m

Material data

Weight276 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebag
Country of originFR
GTIN4055143697972
Customs tariff number85444290900

Product Classification

UNSPSC26121604
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-2300/405-100: frequently asked questions

When can 706-2300/405-100 be shipped?

706-2300/405-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-2300/405-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-2300/405-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-2300/405-100, subject to availability and destination.
