Wago 706-2300/200-100

System cable; for Siemens S7-300; 2 x 16 digital outputs; Length: 1 m; Conductor cross-section: 0.14 mm²

MPN
706-2300/200-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-2300/200-100?

System cable; for Siemens S7-300; 2 x 16 digital outputs; Length: 1 m; Conductor cross-section: 0.14 mm² 706-2300/200-100

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Inputs/outputs2 x 16 digital outputs
Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Compatibility - Siemens

Siemens S7-3006ES7 322-1BP00-0AA0

Connection data

Cable typeLiYY

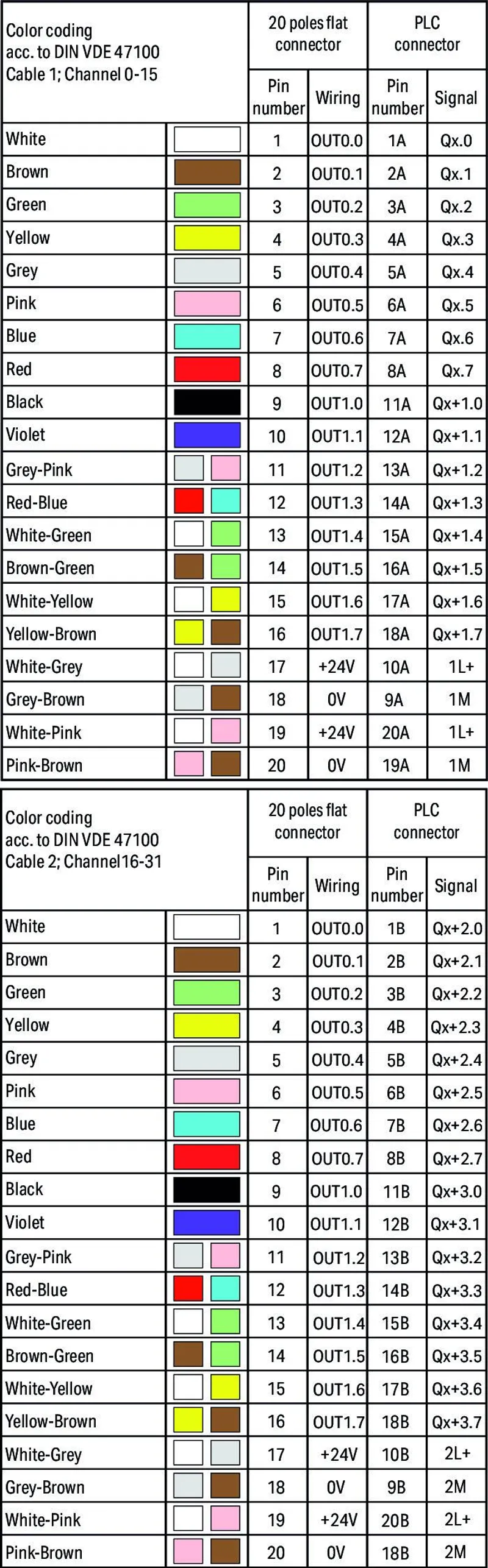

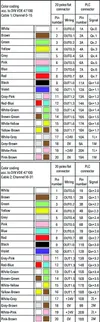

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 120
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

ConnectorPluggable connector per DIN 41651; female connector
Pole number20
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 3

ConnectorFujitsu FCN-367-J40/AU/H
Pole number40
Connection typeSystem

Physical data

Cable length1 m

Material data

Weight200 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

Product Group30 (WAGO France)
PU (SPU)1 pcs
Packaging typenot specified
Country of originFR
GTIN4045454880194
Customs tariff number85444290900

Product Classification

UNSPSC26121604
eCl@ss 10.027-24-22-20
eCl@ss 9.027-24-22-20
ETIM 9.0EC000237
ETIM 10.0EC000237
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-2300/200-100: frequently asked questions

When can 706-2300/200-100 be shipped?

706-2300/200-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-2300/200-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-2300/200-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-2300/200-100, subject to availability and destination.
