Wago 706-100/334-100

Connection cable; 34-pole; Pluggable connector per DIN 41651; open-ended; Length: 1 m; Conductor cross-section: 0.14 mm²

MPN
706-100/334-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 706-100/334-100?

Connection cable; 34-pole; Pluggable connector per DIN 41651; open-ended; Length: 1 m; Conductor cross-section: 0.14 mm² 706-100/334-100

Specifications

Notes

NoteWhen using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical data

Operating voltage≤ 35 VAC/VDC
Current per wire (max.)1 A

Connection data

Cable typeLiYY

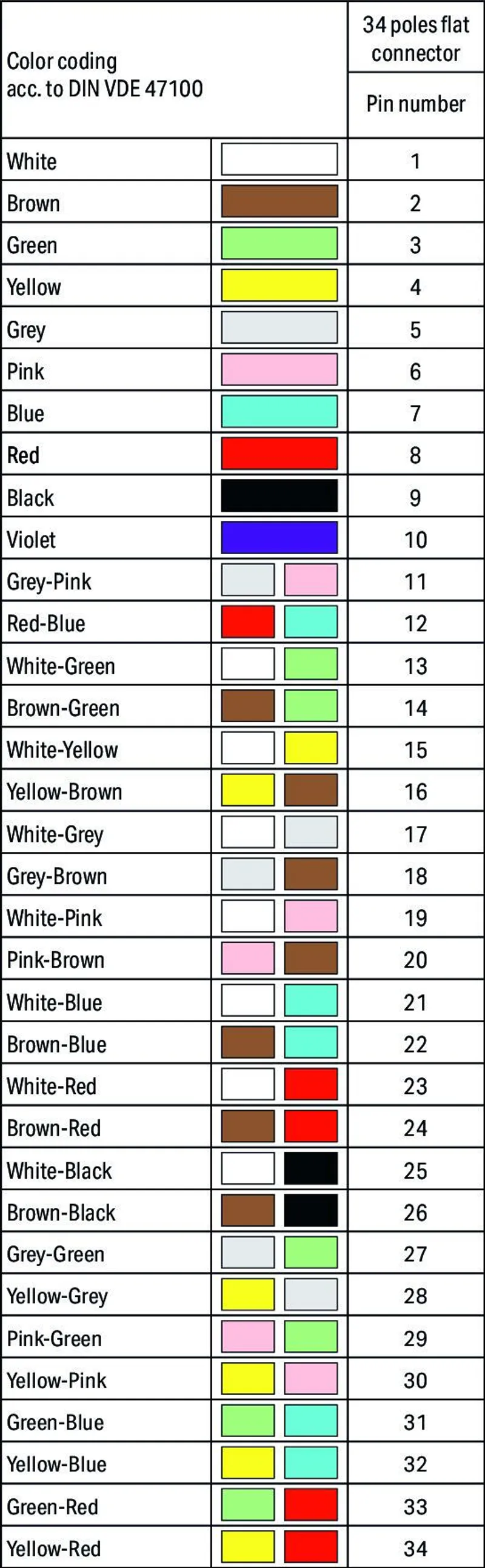

Color codeper DIN VDE 47100

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; female connector
Pole number 134
Connection typeSystem
Wire cross-section0.14 mm²

Connection data - Connection 2

Connectoropen-ended
Connection typeopen-ended
Wire cross-section0.14 mm²

Physical data

Cable length1 m

Material data

Weight180 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C

Commercial data

PU (SPU)1 pcs
Packaging typebox
Country of originFR
GTIN4050821777748
Customs tariff number85444290900

Product Classification

UNSPSC26121629
ETIM 9.0EC001855
ETIM 10.0EC001855
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption

706-100/334-100: frequently asked questions

When can 706-100/334-100 be shipped?

706-100/334-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 706-100/334-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 706-100/334-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 706-100/334-100, subject to availability and destination.
