Wago 2604-3503

What is the Wago 2604-3503?

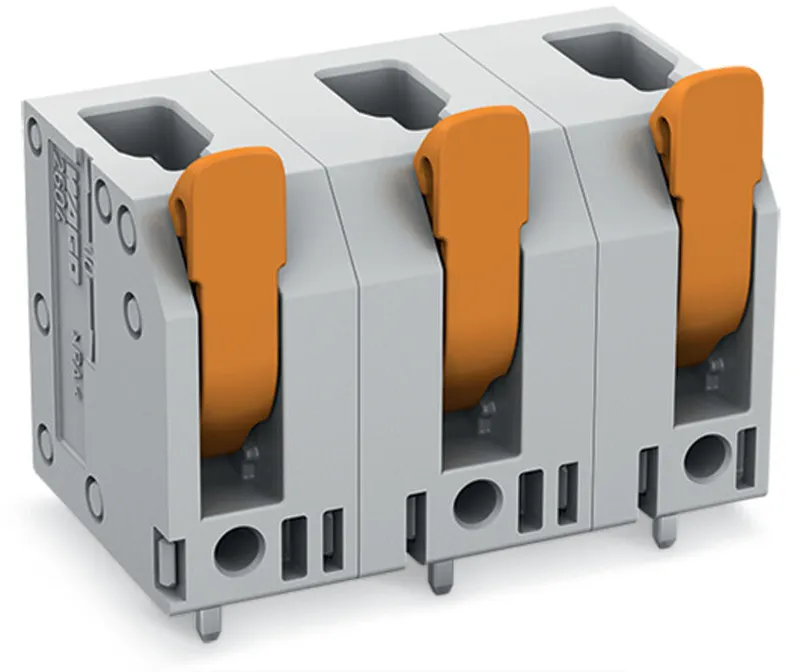

PCB terminal block, 2604 Series, solder pin dimensions 0.8 x 1 mm

Quick and easy connections are guaranteed with this PCB terminal block (item number 2604-3503). It offers the flexibility needed for different mounting types. This PCB terminal block has a rated voltage of 1000 V and can handle currents up to 32 A, making it ideal for high-load applications. Ensure that the strip lengths are between 9 mm and 11 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The dimensions are 30.4 x 25.3 x 16.7 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is ideal for conductor cross sections ranging from 0.2 mm² to 4 mm². It has one level. You can connect three potentials / three poles using the three clamping points. The clamping spring is made of chrome-nickel spring steel (CrNi), the gray housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. This PCB terminal block is operated with a lever. THT is used to assemble the PCB terminal block. Insert the conductor into the board at an angle of 90°.. The solder pins are organized over the entire terminal strip (in-line). They are 0.8 x 1 mm and 4 mm in length. Each potential has two solder pins.
