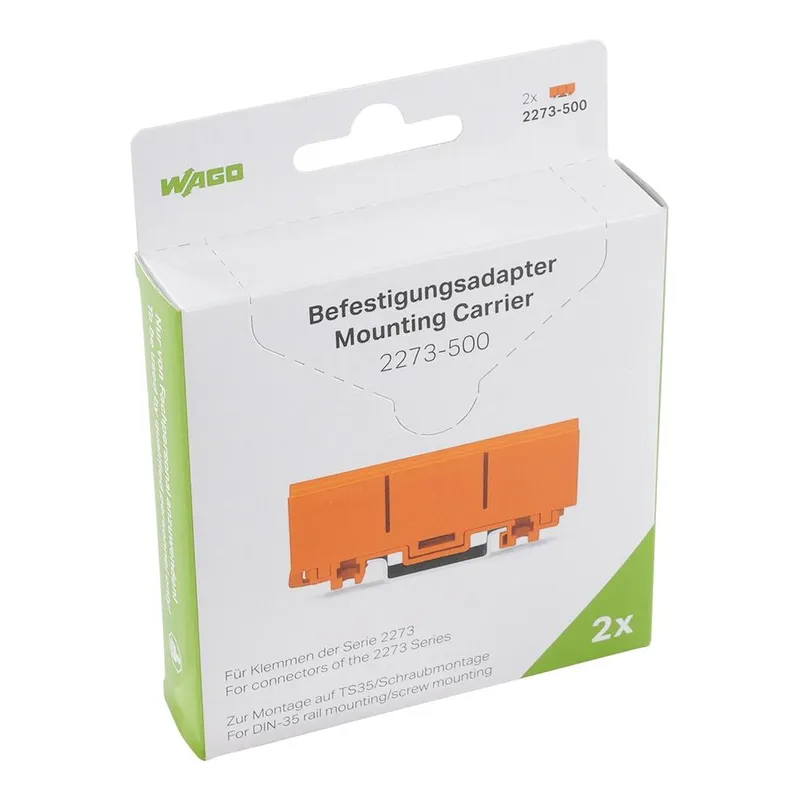

Mounting carrier; for single- and double-row con.; 2273 Series; for DIN-35 rail mounting/screw mounting; orange
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Installation Terminal Blocks and Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2273-500/995-002 be shipped?
2273-500/995-002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2273-500/995-002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2273-500/995-002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2273-500/995-002, subject to availability and destination.
<h2>Montagematerial Serie 2273, orange</h2><br/><br/>Das Montagematerial (Artikelnummer 2273-500/995-002) ermöglicht eine fehlerfreie Elektroinstallation.<br/>
Specifications
Notes
| Note | One single carrier can hold up to 24 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.Additional benefits:Mount carrier onto DIN-35 rail or via screws – easily and quicklyAccommodate three 2.5 mm² (12 AWG) 2273 Series Connectors in a single carrierEasily exchange connectorsLarge marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen |
Physical data
| Width | 18.5 mm / 0.728 inches |
| Height | 72.5 mm / 2.854 inches |
| Depth from upper-edge of DIN-rail | 21.5 mm / 0.846 inches |
Mechanical data
| Mounting type | DIN-35 rail, Screw mount |
| Suitable | for single- and double-row connectors (2273 Series) |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | orange |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.31 MJ |
| Weight | 10.3 g |
Commercial data
| PU (SPU) | 24 (2) pcs |
| Packaging type | Blister foil |
| Country of origin | DE |
| GTIN | 4066966002058 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121402 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
