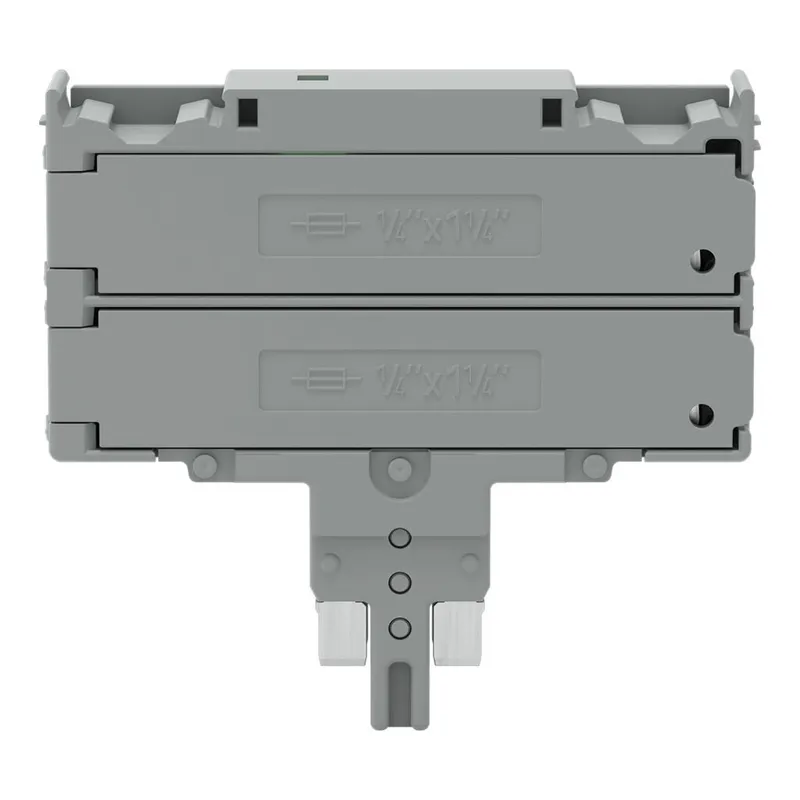

Wago 2003-931
Double fuse plug; for glass cartridge fuse ¼" x 1¼"; without blown fuse indication; 10.4 mm wide; gray
- MPN
- 2003-931
- Category
- Rail-Mount Terminal Blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Wago 2003-931?
Fuse plug, 2003 Series, gray
Enjoy error-free electrical installations with this fuse plug (item number 2003-931). Dimensions: (10.4 x 45.8 x 41.9) mm (width x height x depth).
Specifications
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 250 V |
| Rated current | 10 A |
| Operation status indicator | None |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per IEC/EN – Notes
| Ratings (note) | Electrical ratings are given by the fuse. |
Electrical data - Ratings per UL
| Rated voltage UL (Use Group B) | 250 V |
| Rated current UL (Use Group B) | 10 A |
| Rated voltage UL (Use Group C) | 250 V |
| Rated current UL (Use Group C) | 10 A |
Electrical data - Power Loss
| Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
Electrical data - General information
| Fuse type | Cylindrical fuse; ¼" x 1¼" |
Physical data
| Width | 10.4 mm / 0.409 inches |
| Height | 45.8 mm / 1.803 inches |
| Depth | 41.9 mm / 1.65 inches |
Mechanical data
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.169 MJ |
| Weight | 12.1 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 22 (TOPJOB S) |
| PU (SPU) | 25 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821270393 |
| Customs tariff number | 85366990990 |
Product Classification
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
