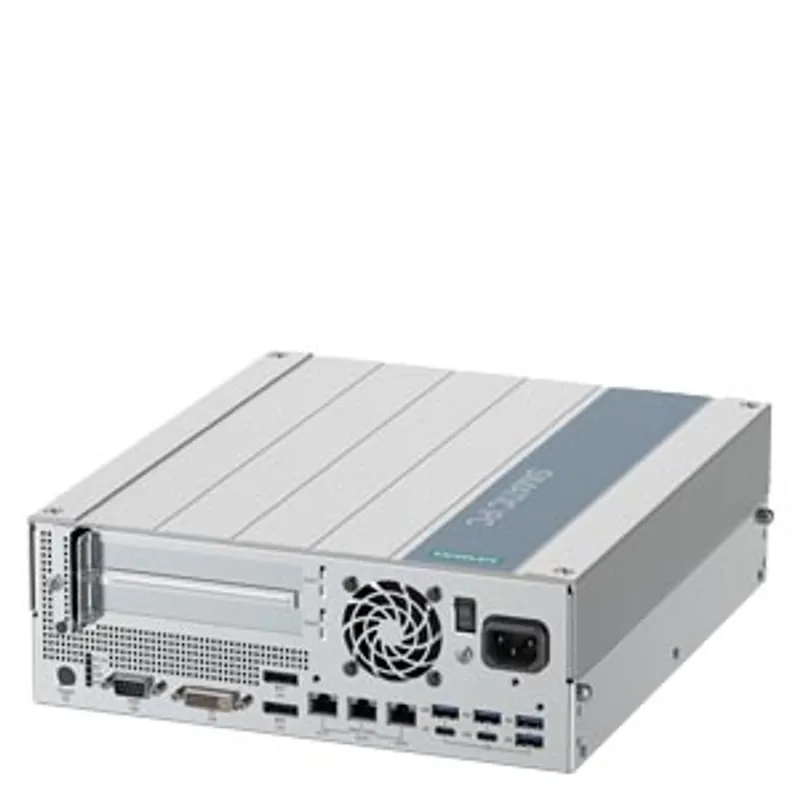

Siemens 9MC0110-1EG20-0AA3
Brownfield Connectivity – starter kit (UK) consisting of: SIMATIC IPC627E (box PC)
- MPN
- 9MC0110-1EG20-0AA3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 9MC0110-1EG20-0AA3?
Brownfield Connectivity – starter kit (UK) consisting of: SIMATIC IPC627E (box PC), Brownfield Connectivity Gateway, Brownfield Analytics, Installation Wizard, 3 BFC Premium Plus perpetual, 3 Brownfield Analytics – Operations perpetual and 3 Brownfield Analytics – Condition perpetual licenses, as well as a power supply cable for the British market. Start optimizing your production by analyzing three machines and then expand your system to up to 60 machines.
Specifications
General information
| Product type designation | BFC Starter Kit |
Installation type/mounting
| Mounting | Wall mounting, portrait mounting |
| Design | Box PC, built-in unit |
Supply voltage
| Type of supply voltage | 100 - 240 V AC |
| Line frequency — Rated value 50 Hz | Yes |
| Line frequency — Rated value 60 Hz | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
Processor
| Processor type | Core i7-8700, 6C/12T, 3.2 GHz |
| Chipset | Intel C246 |
Graphic
| Graphics controller | Intel UHD Graphics 630 (Core i); Intel UHD Graphics 610 (Celeron) |
| Graphics card | onboard: 2x DP, 1x DVI-D |
Drives
| Hard disk | 2.5" SATA ≥ 320 GB |
| SSD | Yes; SSD M.2 NVMe 512 GB; SSD 2.5" SATA 480 / 960 GB; RAID1 2x SSD 2.5" SATA 480 / 960 GB in removable drive bay |
Storage
| Type of memory | DDR4-2666 DIMM |
| Main memory | 4 / 8 / 16 / 32 / 64 GB |
| Capacity of main memory, max. | 32 Gbyte |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. | 512 kbyte; 128 KB can be stored in the buffer time |
Hardware configuration
| Slots — Number of PCI slots | 2; Optional |
| Slots — Number of PCI slots | 5; Optional |
Interfaces
| Number of industrial Ethernet interfaces | 3; 3x Ethernet (RJ45) |
| serial interface | 1x COM |
| Video interfaces — Graphics interface | 2x DisplayPort; 1x DVI-D |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes |
Interrupts/diagnostics/status information
| LED status display | 1x power, 3x user |
Integrated Functions
| Monitoring functions — Temperature monitoring | Yes |
| Monitoring functions — Fan | Yes |
| Monitoring functions — Monitoring function via network | Optional |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes; UL 61010-2-201 Second Edition; CAN/CSA-C22.2 No. 61010-2-201 Second Edition |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| FCC | Yes |
| BSMI | Yes |
| Use in hazardous areas — cULus Class I Zone 2, Division 2 | Yes; Optional |
| Marine approval — American Bureau of Shipping (ABS) | Yes; Only with SSD |
| Marine approval — Bureau Veritas (BV) | Yes; Only with SSD |
| Marine approval — Det Norske Veritas (DNV) | Yes; Only with SSD |
| Marine approval — Korean Register of Shipping (KRS) | Yes; Only with SSD |
| Marine approval — Lloyds Register of Shipping (LRS) | Yes; Only with SSD |
| Marine approval — Nippon Kaiji Kyokai (Class NK) | Yes; Only with SSD |
| Marine approval — Chinese Classification Society (CCS) | Yes; Only with SSD |
Ambient conditions
| Ambient temperature during operation — min. | 5 °C |
| Ambient temperature during operation — max. | 55 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | tested according to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm; 58 Hz to 500 Hz 9.8 m/s² (1 g) |
Operating systems
| pre-installed operating system | SIMATIC Industrial OS |
| without operating system | No; SIMATIC Industrial OS |
Software
| Pre-installed software | Brownfield Connectivity Gateway, Brownfield Analytics |
Dimensions
| Width | 314 mm |
| Height | 93 mm; For variant 5x PCI(e): 155 mm |
| Depth | 301 mm; incl. mounting rail |
