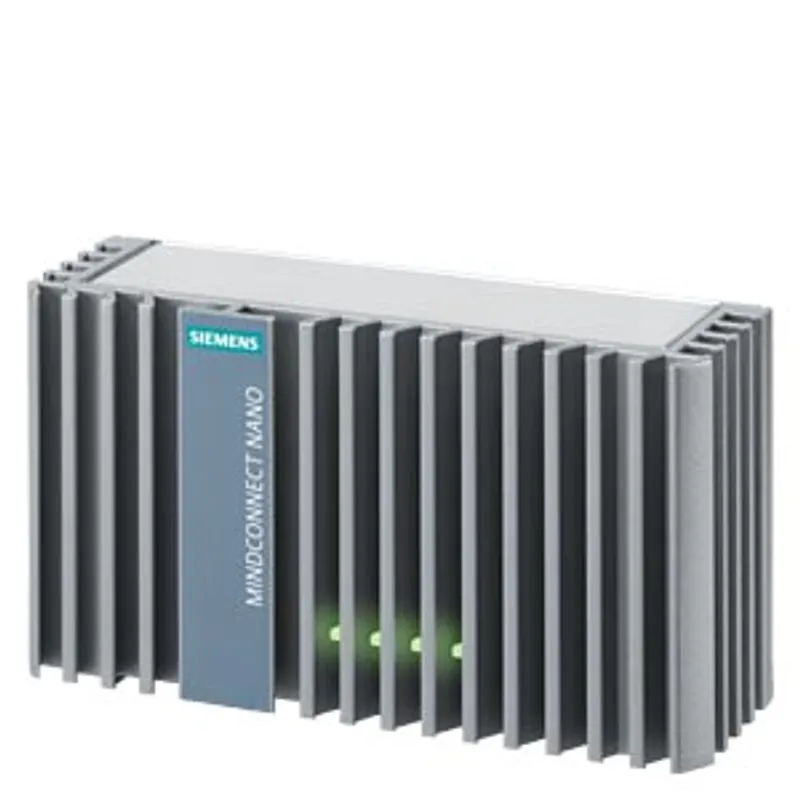

Siemens 9AC2112-8BA12-0KA1
- MPN
- 9AC2112-8BA12-0KA1
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 9AC2112-8BA12-0KA1?
MindConnect Nano is a Device for data acquisition via dif- ferent protocols and permits the transfer of this data to InsightsHub. The device supports the transmission of encrypted data over a secure Internet connection, to enable cloud-based Application and Services MindConnect Nano, according to the product data sheet containing special conditions, can only be used in connection with InsightsHub.
Specifications
General information
| Product function — Proxy functionality | Yes |
Installation type/mounting
| Mounting | DIN rail, wall mounting, portrait mounting |
| Design | IoT Gateway, built-in unit |
Supply voltage
| Type of supply voltage | 24 V DC |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
Processor
| Processor type | Intel Celeron N2807 |
Drives
| Hard disk | CFast 4 GB |
Storage
| Type of memory | DDR |
Hardware configuration
| Slots — Number of PCI slots | 1; PCIe (disabled) |
Interfaces
| Video interfaces — Graphics interface | 1x DisplayPort (disabled) |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes; Gigabit Ethernet; 2x RJ45 with 2 independent MAC/IP addresses |
Integrated Functions
| Monitoring functions — Fan | No |
Degree and class of protection
| IP (rear) | IP40 |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| UL approval — UL 508 | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| FCC | Yes |
| Dust protection | Protection against foreign bodies > 1 mm |
Ambient conditions
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Dimensions
| Width | 191 mm |
| Height | 100 mm |
| Depth | 60 mm |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
9AC2112-8BA12-0KA1: frequently asked questions
When can 9AC2112-8BA12-0KA1 be shipped?
9AC2112-8BA12-0KA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 9AC2112-8BA12-0KA1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 9AC2112-8BA12-0KA1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9AC2112-8BA12-0KA1, subject to availability and destination.
