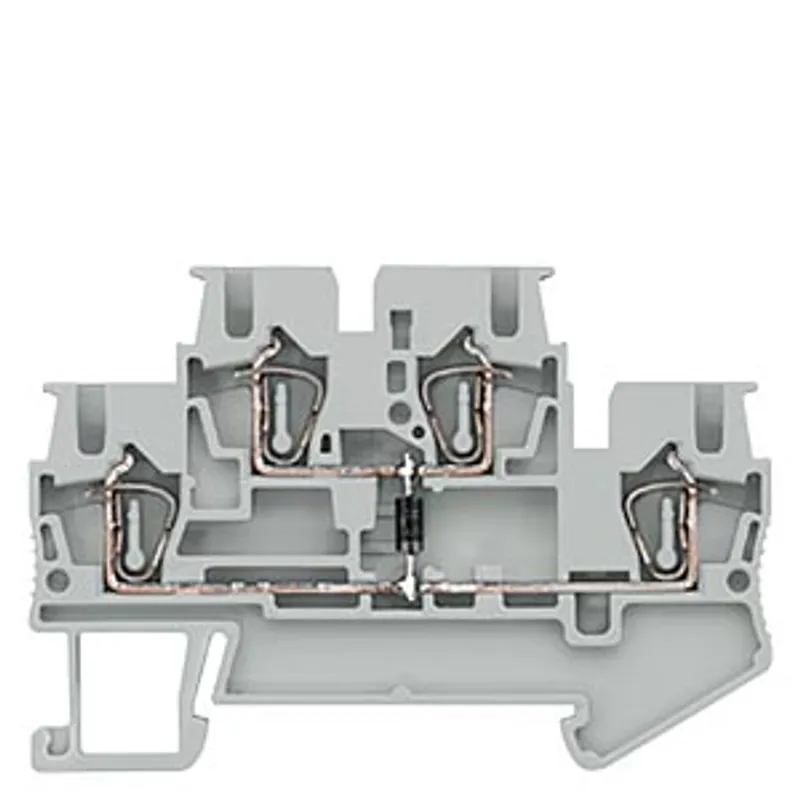

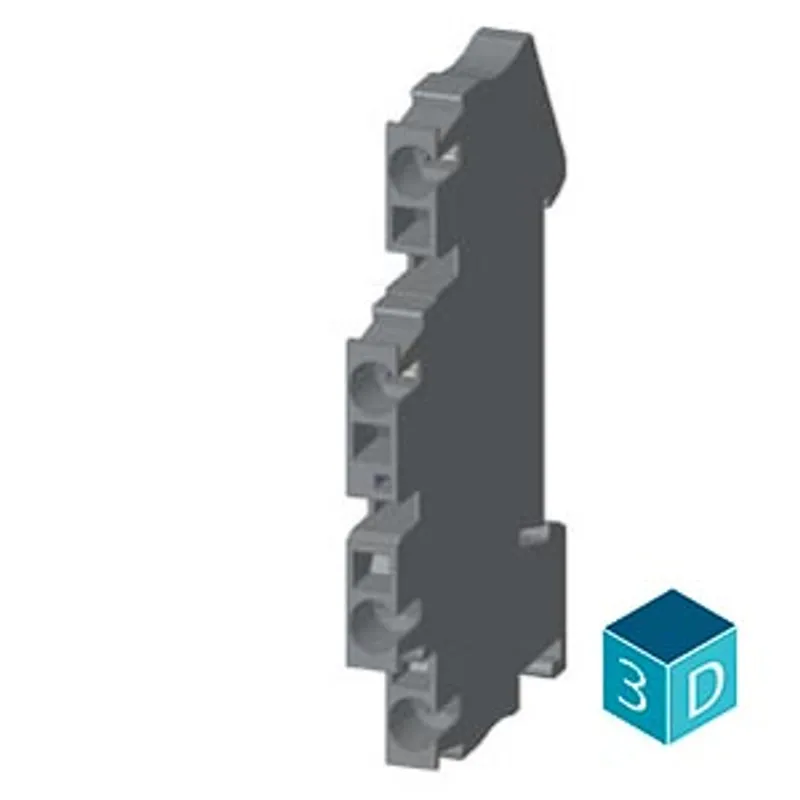

Siemens 8WH2020-5DF00
Terminal, spring-loaded terminal, two-tier, diode terminal, 2.5 mm², gray
- MPN
- 8WH2020-5DF00
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH2020-5DF00?
Terminal, spring-loaded terminal, two-tier, diode terminal, 2.5 mm², gray
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | diode terminal |
| design of terminal terminal levels internally linked | No |
General technical data
| component type | diode |
| insulation material | others |
| terminal contact spacing | 5.2 mm |
| operating voltage rated value | 500 V |
Protection class
| combustibility class according to UL 94 | V0 |
Appearance
| color | grey |
Product details
| product component required end cover plate | Yes |
Number
| number of terminal levels | 2 |
| number of terminal points per terminal level | 4 |
Connections
| connectable conductor cross-section solid — minimum | 0.08 mm² |
| connectable conductor cross-section solid — maximum | 4 mm² |
| connectable conductor cross-section stranded — maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.14 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.08 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 2.5 mm² |
| type of connection 1 | spring-loaded terminals |
| type of connection 2 | spring-loaded terminal |
| position of the terminal | top |

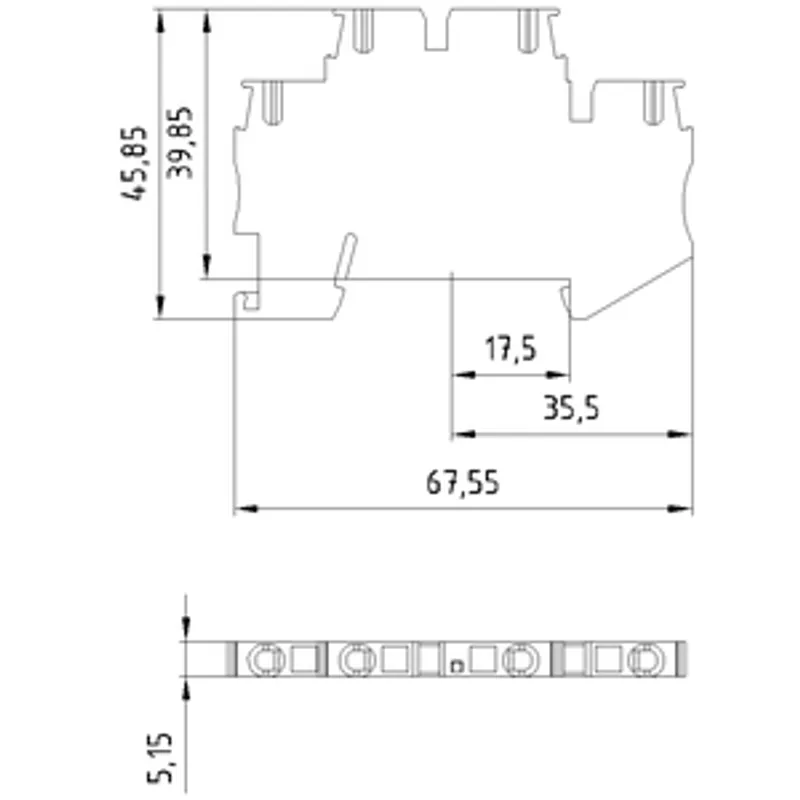

Mechanical Design
| height with lowest-profile installation | 67.58 mm |
| depth | 45.9 mm |
| length | 67.5 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 10 g |
Environmental conditions
| ambient temperature during operation — maximum | -165 °C |
