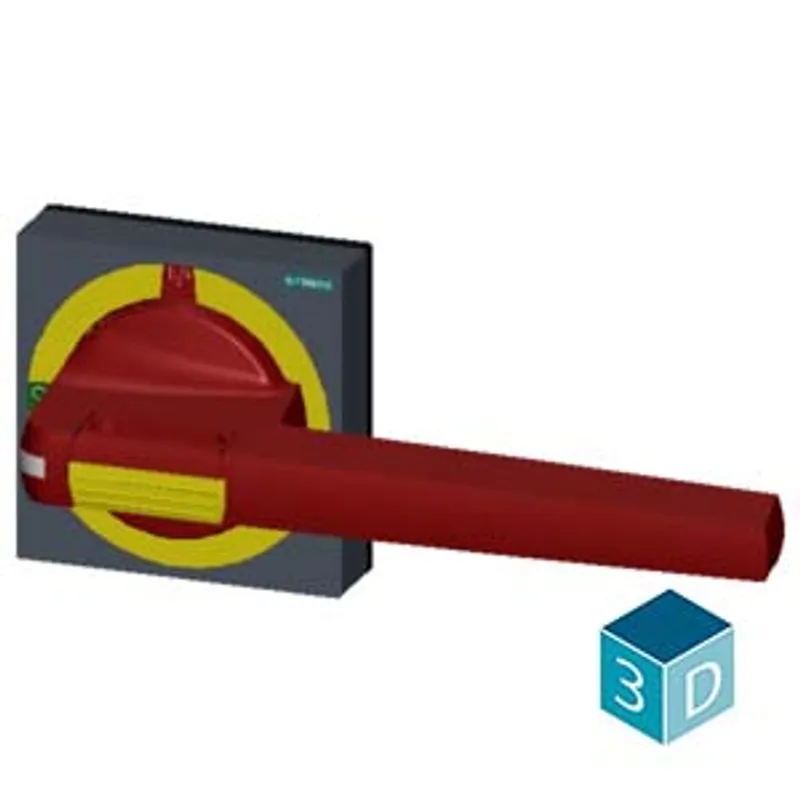

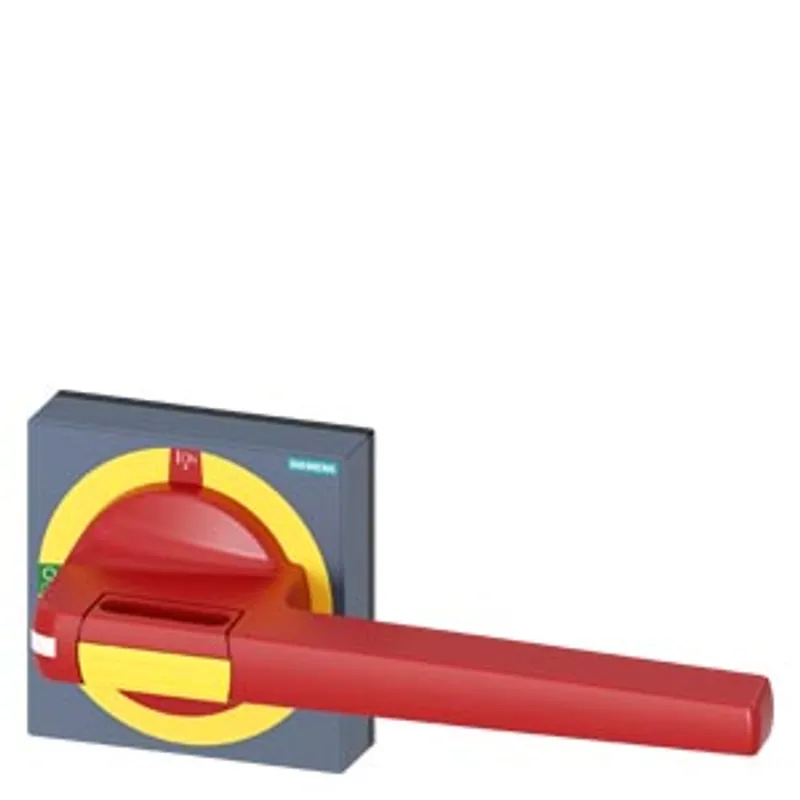

Siemens 8UD1861-4AD05

Handle with masking plate EMERGENCY-STOP size 100x 100, for shaft 12x 12, 0-I

MPN: 8UD1861-4AD05

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8UD1861-4AD05?

handle with masking plate EMERGENCY-STOP size 100x 100, for shaft 12x 12, 0-I, handle size 200mm accessory for 3KD size 5 3KF size 5

Specifications

Model

product brand name	SENTRON
product designation	handle with masking plate
design of the product	EMERGENCY OFF
design of handle	Red-yellow
design of the door lock system	Door interlocking
size of cross-section of the shaft of door-coupling rotary operating mechanism	12x12 mm
size format of the masking frame of door-coupling rotary operating mechanism	100x 100 mm
length of handle	200 mm
protection class IP	IP65
suitability for use	for 3KD size 5, 3KF size 5

Product details

product description	without lighting
product feature interlock	Yes
product component — extension shaft	No
product component — handle for emergency-OFF function	Yes
product feature lockable	Yes

Accessories

accessories	Handle with masking frame
display version for switch position indicator	0-I

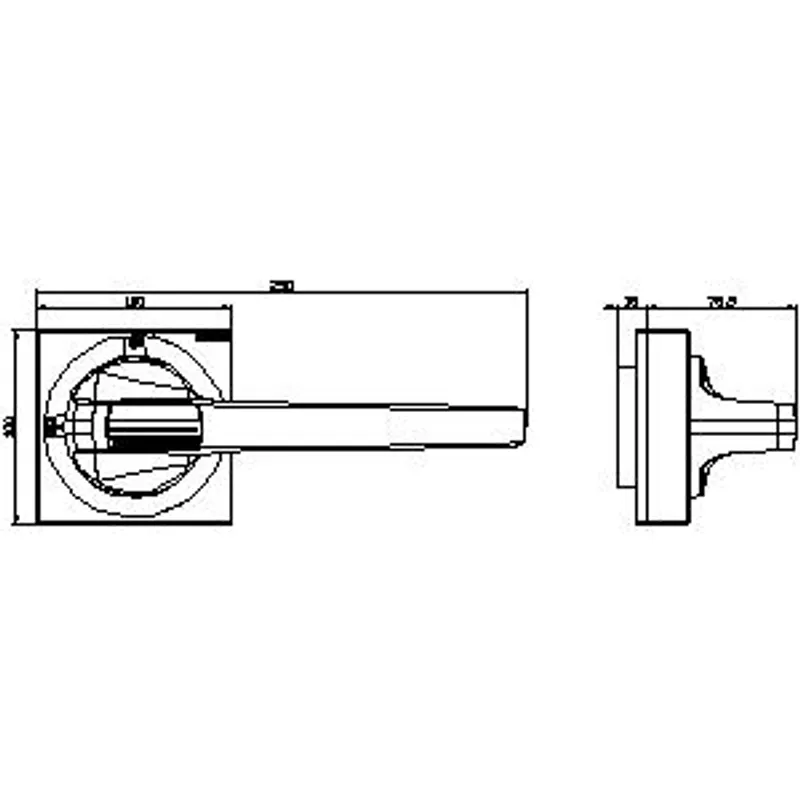

Mechanical Design

height	144 mm
width	98 mm
depth	450 mm
Net Weight	727 g
