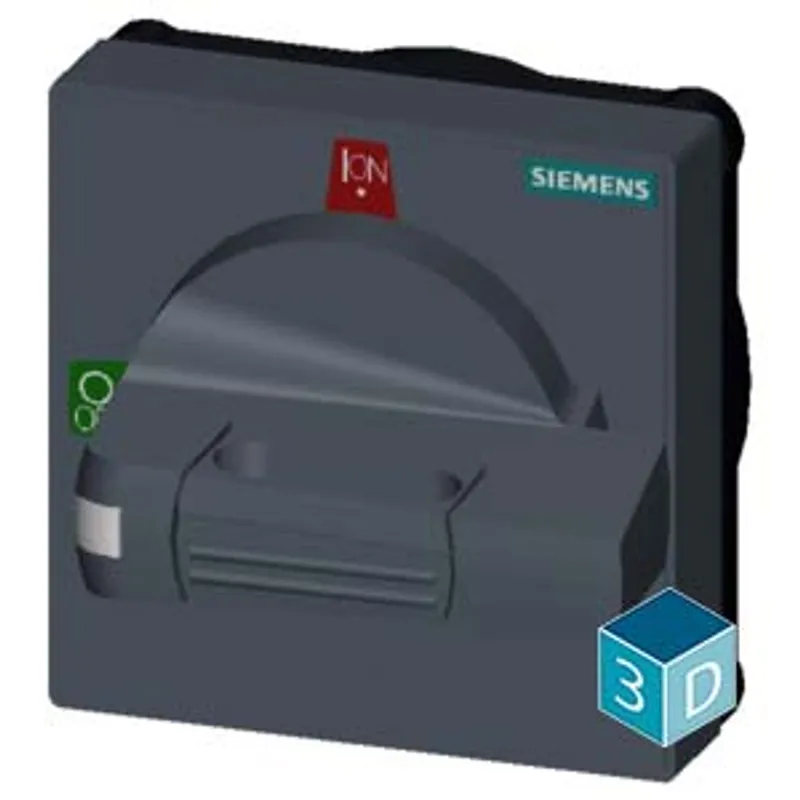

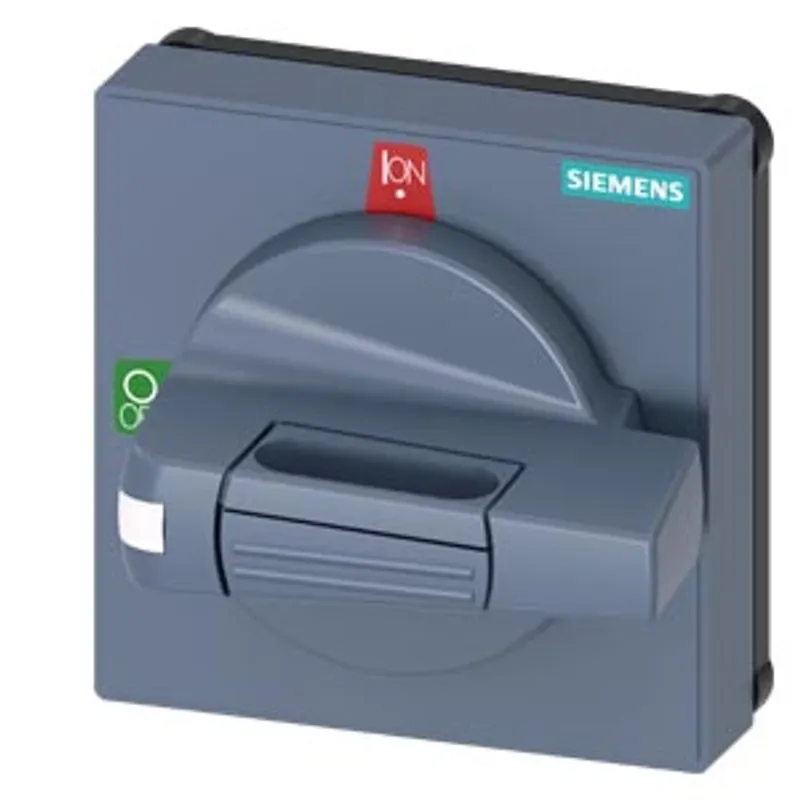

Siemens 8UD1771-2AD01

Handle with masking frame standard Size 75x 75, for shaft 6x6 and 8x 8, 0-I

MPN: 8UD1771-2AD01
Category: Accessories and Spare Parts

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8UD1771-2AD01?

Handle with masking frame standard Size 75x 75, for shaft 6x6 and 8x 8, 0-I, Handle size 45 mm Accessory for 3KD size 1 and 2, 3KF size 1, 3LD5 UL

Specifications

Model

product brand name	SENTRON
product designation	handle with masking plate
design of the product	standard
design of handle	Gray
design of the door lock system	Door interlocking
size of cross-section of the shaft of door-coupling rotary operating mechanism	8x8 mm
size format of the masking frame of door-coupling rotary operating mechanism	75x 75 mm
length of handle	45 mm
protection class IP	IP65
suitability for use	for 3KD size 1 and 2, 3KF size 1

Product details

product description	without lighting
product feature interlock	Yes
product component — extension shaft	No
product component — handle for emergency-OFF function	No
product feature lockable	Yes

Accessories

accessories	Handle with masking frame
display version for switch position indicator	0-I

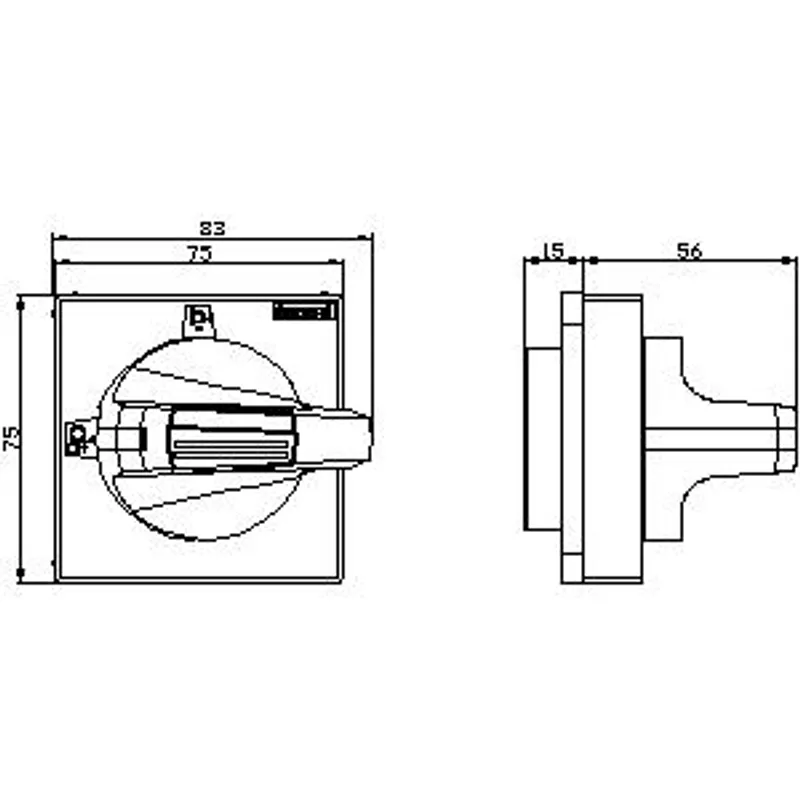

Mechanical Design

height	84 mm
width	84 mm
depth	80 mm
Net Weight	169 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8UD1771-2AD01PDF
