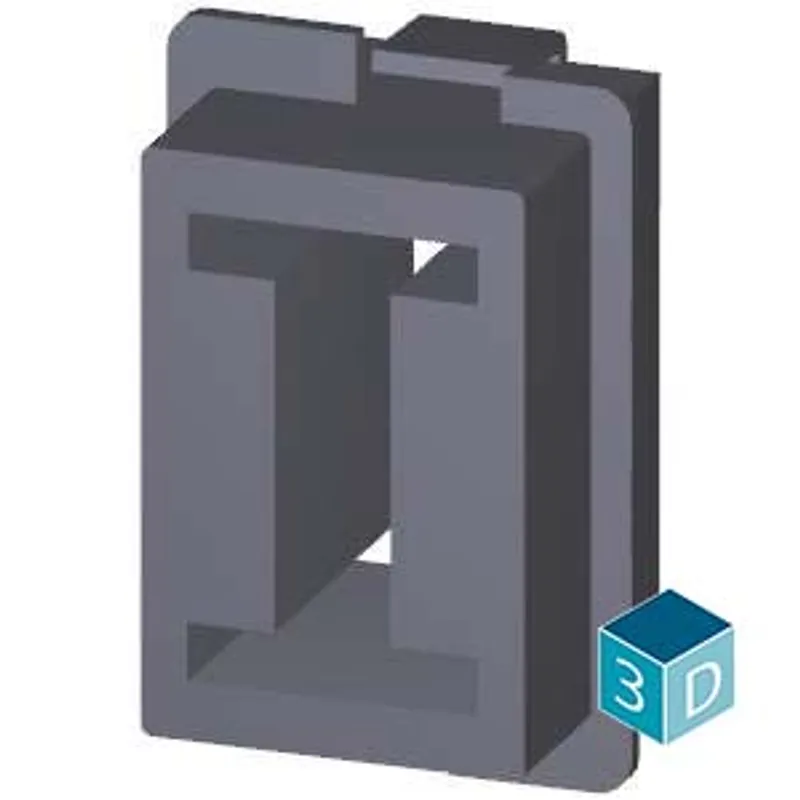

Siemens 8PQ5000-0BA05

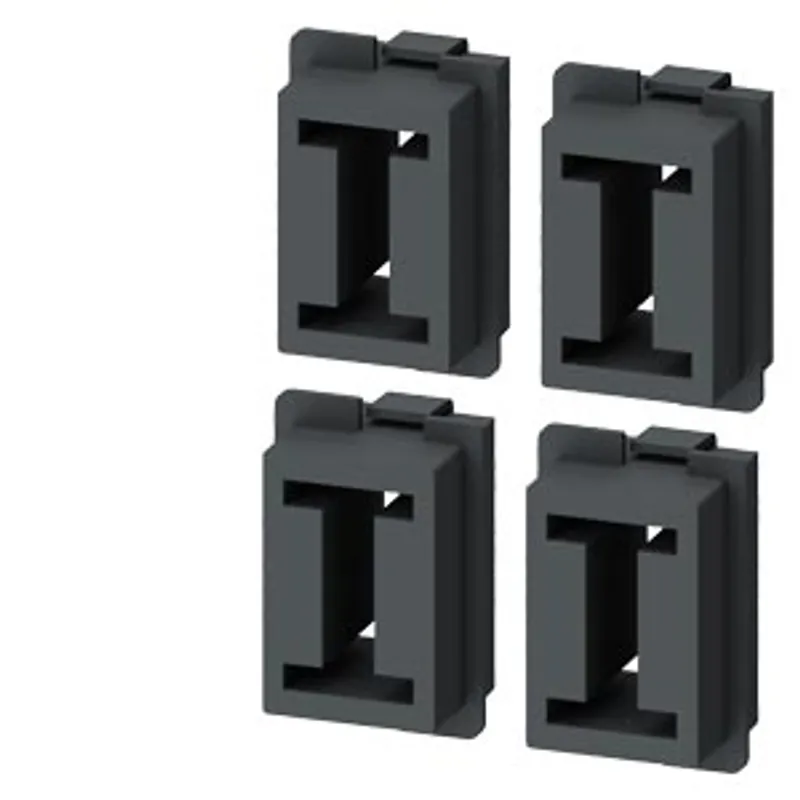

Connecting terminal 1 set = 4 units
- MPN
- 8PQ5000-0BA05
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ5000-0BA05?
Connecting terminal 1 set = 4 units
Specifications
Model
| product brand name | SIVACON S4 |
| product designation | connection terminals |
| design of the product | without copper |
| design of the surface | other |
General technical data
| design of pole | 1 |
| design | individual part |
| suitability for use | for cable terminals |
| RAL color number | 9 004 |
| color | black |
Product details
| product component — cable entry | Yes |
| product component — lock | No |
Mechanical Design
| height | 40 mm |
| width | 60 mm |
| depth | 33 mm |
| installation width for cabinet installation | 60 mm |
| installation depth for cabinet installation | 33 mm |
| shape of inner subdivisions — shape 2a | No |
| shape of inner subdivisions — shape 2b | No |
| shape of inner subdivisions — shape 3a | Yes |
| shape of inner subdivisions — shape 3b | Yes |
| shape of inner subdivisions — shape 4a | No |
| shape of inner subdivisions — shape 4b | No |
| mounting position | horizontal |
| Net Weight | 133.5 g |
| material | plastic |
Certificates
| reference code according to IEC 81346-2 | UC |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8PQ5000-0BA05: frequently asked questions
When can 8PQ5000-0BA05 be shipped?
8PQ5000-0BA05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8PQ5000-0BA05 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8PQ5000-0BA05 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8PQ5000-0BA05, subject to availability and destination.
