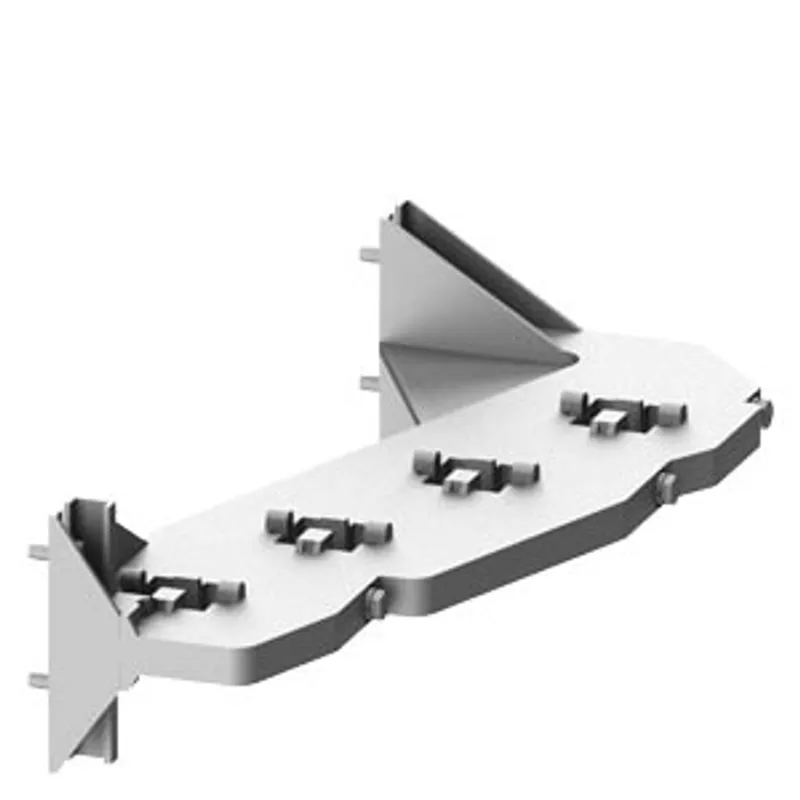

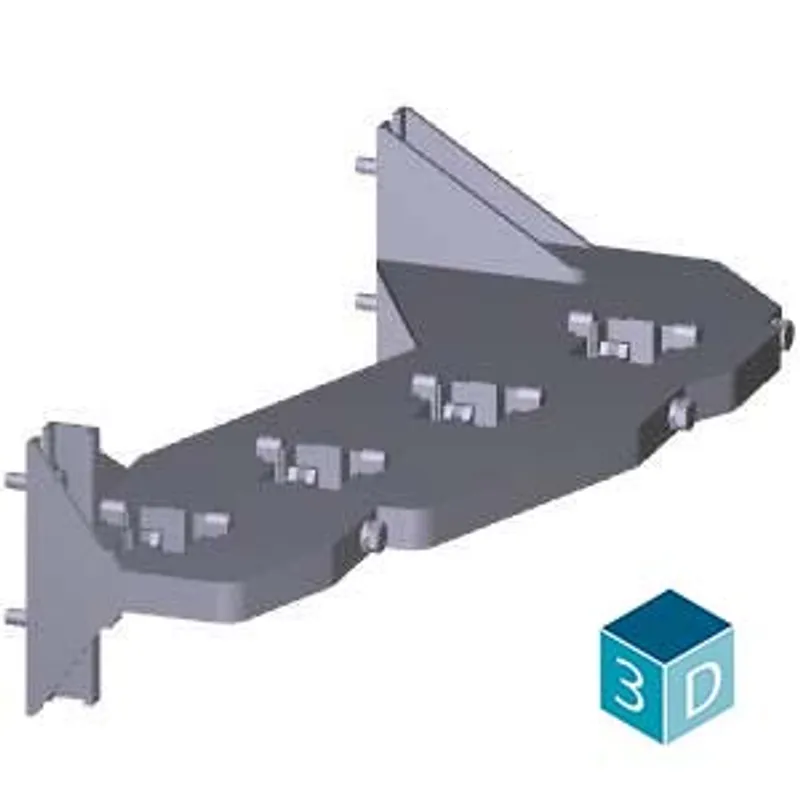

Siemens 8PQ4000-0BA32
Vertical busbar support cascaded, 2 x 30 x 10 mm
- MPN
- 8PQ4000-0BA32
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ4000-0BA32?
Vertical busbar support cascaded, 2 x 30 x 10 mm
Specifications
Model
| product brand name | SIVACON S4 |
| design of the product | cascaded |
General technical data
| number of poles | 4 |
Main circuit
| operational current rated value maximum | 1 190 A |
| type of connectable conductor cross-sections for copper conductor stranded | 30x10 |
Mechanical Design
| height | 165 mm |
| width | 375 mm |
| depth | 100 mm |
| busbar center-to-center spacing | 80 mm |
| Net Weight | 878 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8PQ4000-0BA32: frequently asked questions
When can 8PQ4000-0BA32 be shipped?
8PQ4000-0BA32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8PQ4000-0BA32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8PQ4000-0BA32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8PQ4000-0BA32, subject to availability and destination.
