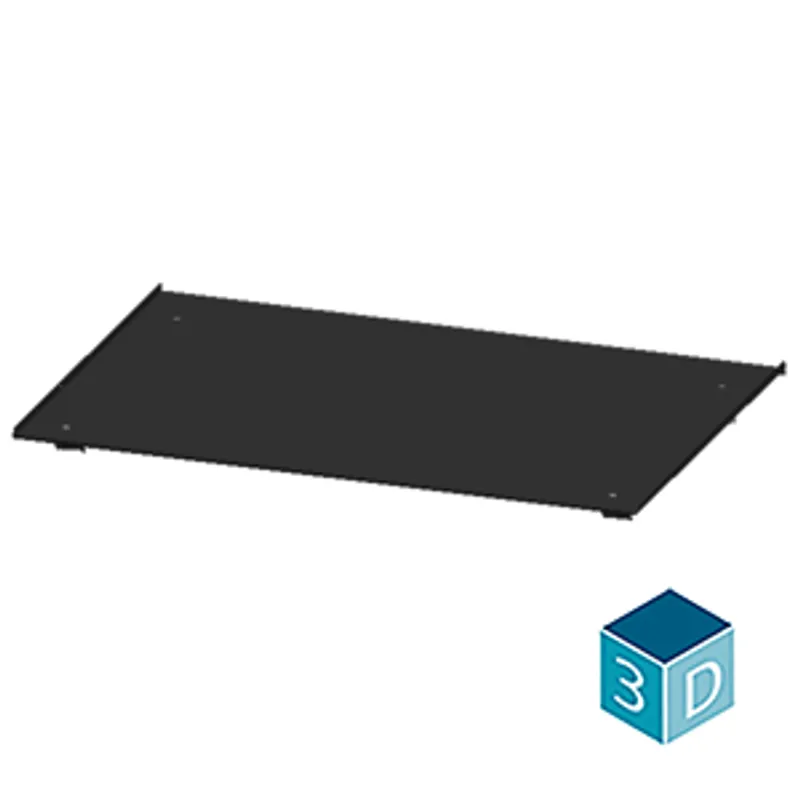

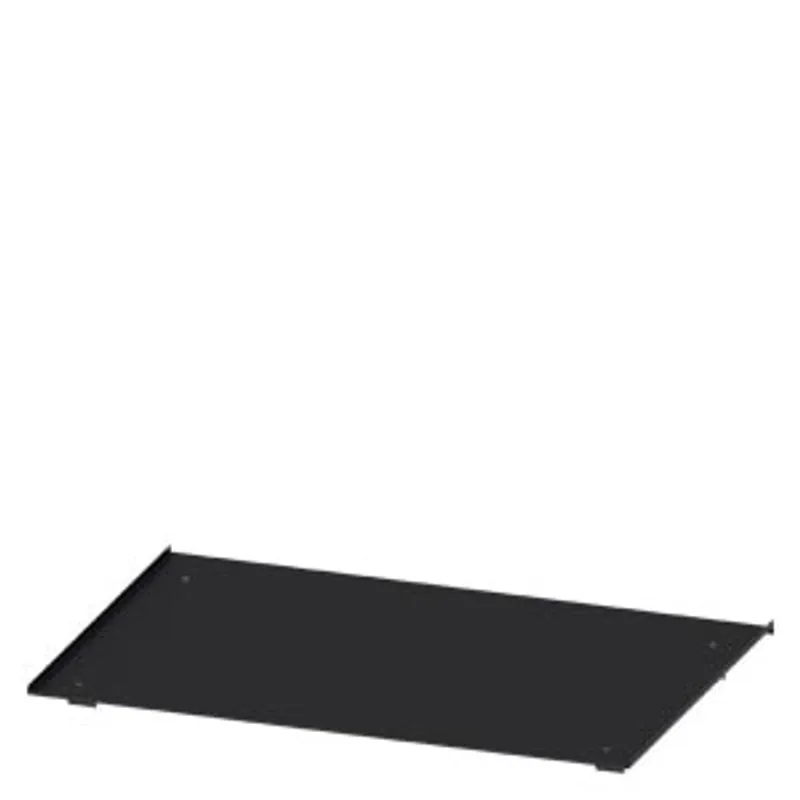

Siemens 8PQ2302-6BA08
IPX3 roof add-on plate, main busbar: top, D: 600 mm W: 1200 mm
- MPN
- 8PQ2302-6BA08
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ2302-6BA08?
IPX3 roof add-on plate, main busbar: top, D: 600 mm W: 1200 mm
Specifications
Model
| product brand name | SIVACON S4 |
| product designation | top plate attachment |
| design of the surface | Powder-coated |
| design of the product EMC version | No |
Protection class
| protection class IP | IPX3 |
Suitability
| suitability for use for outside use | No |
Appearance
| RAL color number | 5 020 |
| color | blue green basic |
Product details
| product component — cable entry | No |
| product component — ventilation | No |
Mechanical Design
| height | 90 mm |
| width | 1 200 mm |
| depth | 600 mm |
| ventilation cross section outlet can be used | 0 cm² |
| Net Weight | 10 kg |
| material | sheet-steel |
