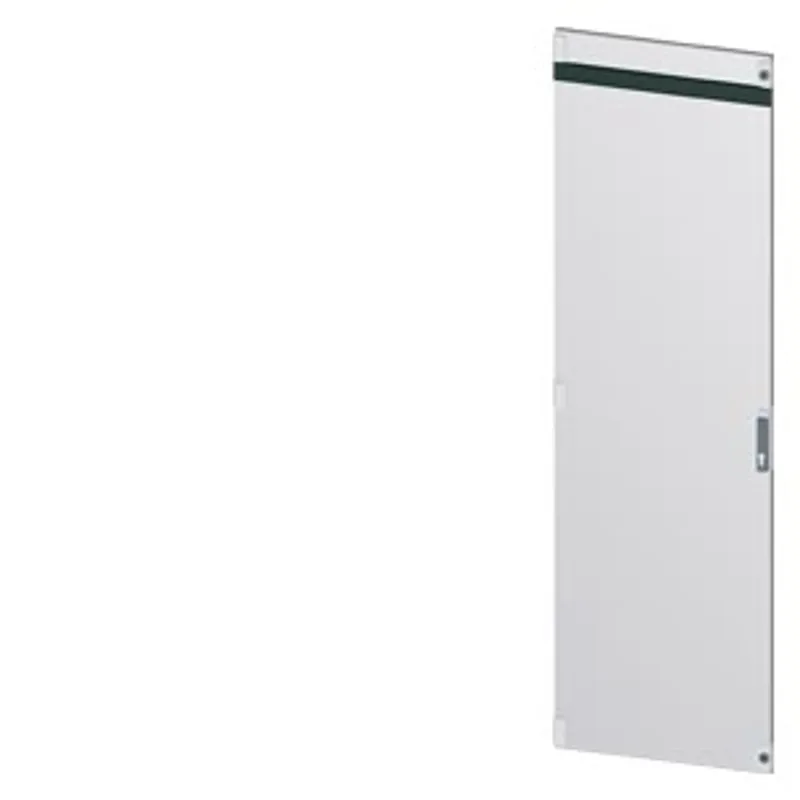

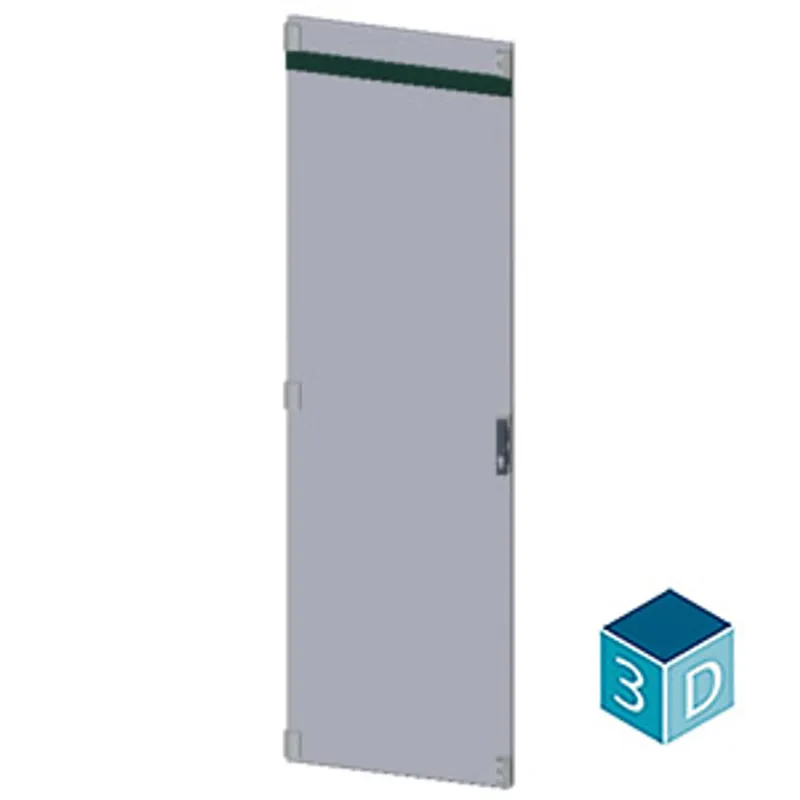

Siemens 8PQ2197-6BA01
Door IP55, W: 600 mm lock: rotary handle for profile semicylinder hinge: left
- MPN
- 8PQ2197-6BA01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8PQ2197-6BA01?
Door IP55, W: 600 mm lock: rotary handle for profile semicylinder hinge: left
Specifications
Model
| product brand name | SIVACON S4 |
| product designation | Door |
| design of the surface | Powder-coated |
| design of the product EMC version | No |
Protection class
| protection class IP | IP55 |
| operating resource protection class | 1 |
Appearance
| color | light grey |
Product details
| product component — ventilation | No |
| product component — viewing door | No |
| product component — door for disconnector lock | No |
| accessories included | no |
Mechanical Design
| height | 2 000 mm |
| width | 600 mm |
| depth | 25 mm |
| opening direction of the door | left |
| ventilation cross section inlet can be used | 0 cm² |
| ventilation cross section outlet can be used | 0 cm² |
| Net Weight | 21.277 kg |
| material | sheet-steel |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8PQ2197-6BA01: frequently asked questions
When can 8PQ2197-6BA01 be shipped?
8PQ2197-6BA01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8PQ2197-6BA01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8PQ2197-6BA01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8PQ2197-6BA01, subject to availability and destination.
