Home / Siemens / Doors / Siemens 8PQ2197-1BA14

Siemens

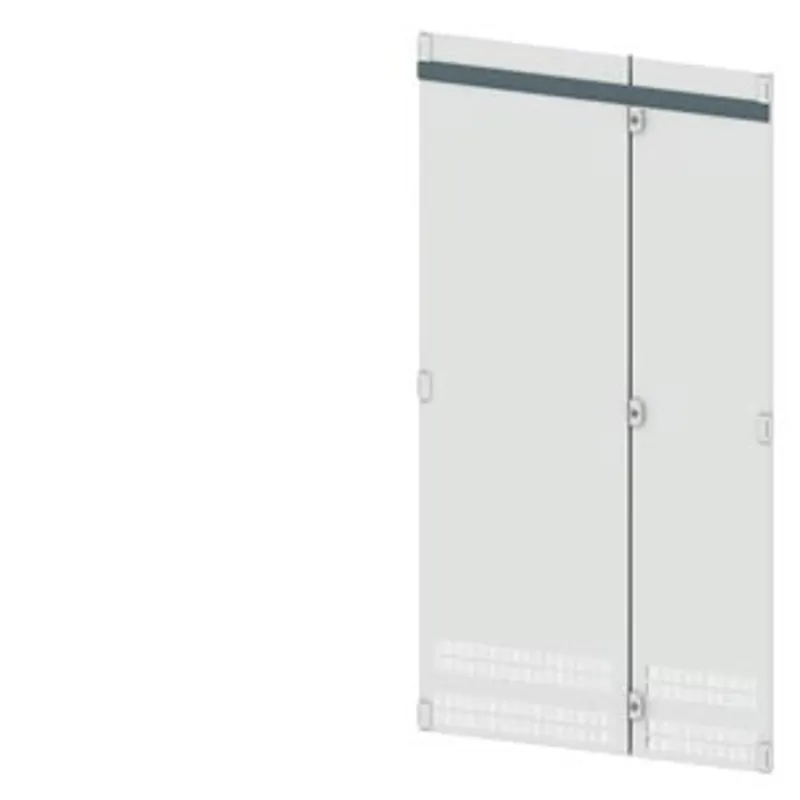

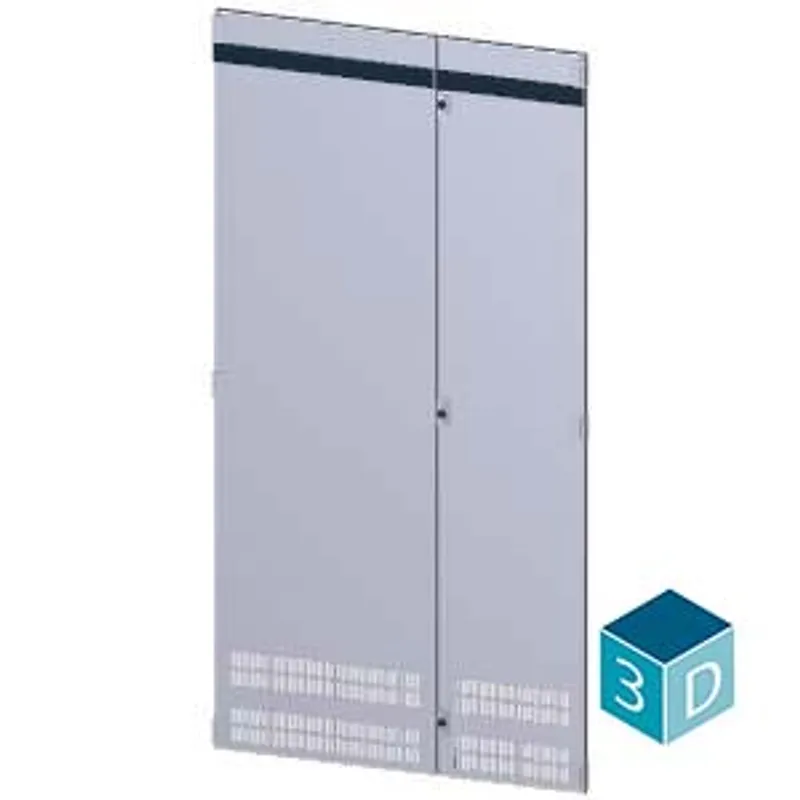

Siemens 8PQ2197-1BA14

Double door IP40, lock: double-bit, W: 1000 mm

MPN: 8PQ2197-1BA14
Category: Doors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 8PQ2197-1BA14?

Double door IP40, lock: double-bit, W: 1000 mm

Specifications

Model

product brand name	SIVACON S4
product designation	Double door
design of the product	IP40
design of the surface	Powder-coated
design of the product EMC version	No

Protection class

protection class IP	IP40
operating resource protection class	1

Appearance

color

light grey

Product details

product component — ventilation	Yes
product component — viewing door	No
product component — door for disconnector lock	No
accessories included	no

Mechanical Design

height	2 000 mm
width	1 000 mm
depth	25 mm
opening direction of the door	left / right
ventilation cross section inlet can be used	422 cm²
ventilation cross section outlet can be used	0 cm²
Net Weight	32.2 kg
material	sheet-steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8PQ2197-1BA14PDF

8PQ2197-1BA14: frequently asked questions
