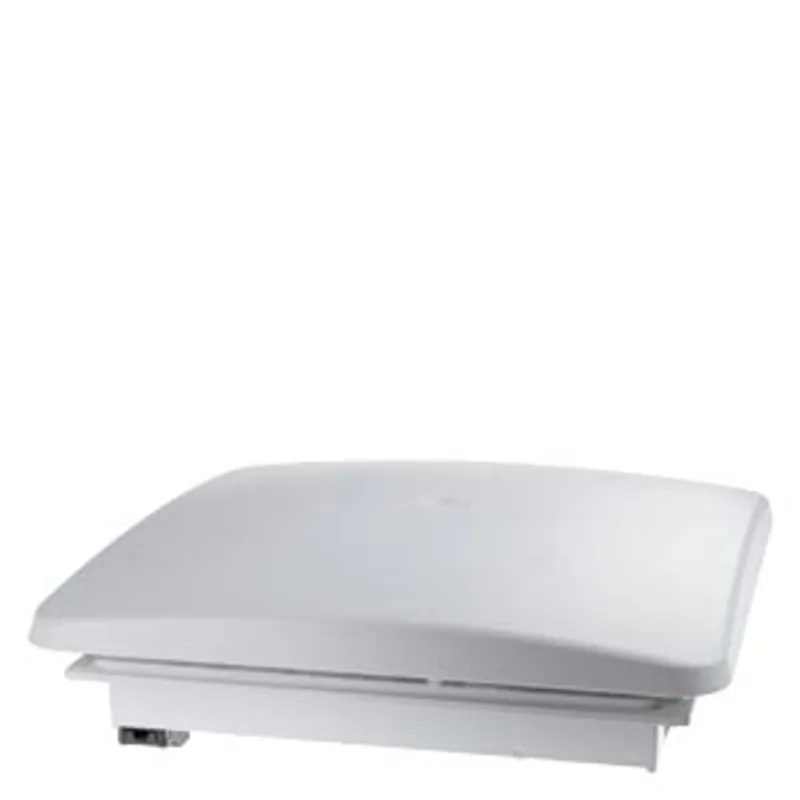

Siemens 8MR6423-5VL64
Roof fan, Extract: W: 292 mm, H: 292 mm, RAL 7035, IP54, Airflow: 232 m3/h, Ue AC: 230 V
- MPN
- 8MR6423-5VL64
- Category
- Air-Conditioning
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8MR6423-5VL64?
Roof fan, Extract: W: 292 mm, H: 292 mm, RAL 7035, IP54, Airflow: 232 m3/h, Ue AC: 230 V
Specifications
Model
| product brand name | SIVACON |
| product designation | Roof fans |
| type of ventilation | ventilation |
| fan design withdrawable fan | No |
| design of the product EMC version | No |
General technical data
| A-rated sound power level maximum | 46 dB |
| consumed active power rated value | 68 W |
| cutout width | 292 mm |
| cutout height | 292 mm |
| operating period | 27 500 h |
| rotor speed at 50 Hz rated value | 2 650 1/min |
| rotor speed at 60 Hz rated value | 3 100 1/min |
| type of voltage of the operating voltage | AC |
| consumed current maximum | 0.64 A |
| operating voltage — at AC at 50 Hz rated value maximum | 230 V |
| operating voltage — at AC at 60 Hz rated value maximum | 230 V |
Protection class
| protection class IP | IP54 |
Appearance
| RAL color number | 7 035 |
| color | light grey |
Product details
| product component fan | Yes |
Number
| number of ventilators | 4 |
Mechanical Design
| height | 361 mm |
| width | 361 mm |
| depth | 114 mm |
| installation location | roof |
| fastening method | snap-on mounting |
| fastening method — 19-inch installation | No |
| fastening method — wall mounting | No |
| Net Weight | 4.705 kg |
| material | plastic |
| ambient temperature during operation — minimum | -10 °C |
| ambient temperature during operation — maximum | 55 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8MR6423-5VL64: frequently asked questions
When can 8MR6423-5VL64 be shipped?
8MR6423-5VL64 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8MR6423-5VL64 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8MR6423-5VL64 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8MR6423-5VL64, subject to availability and destination.
