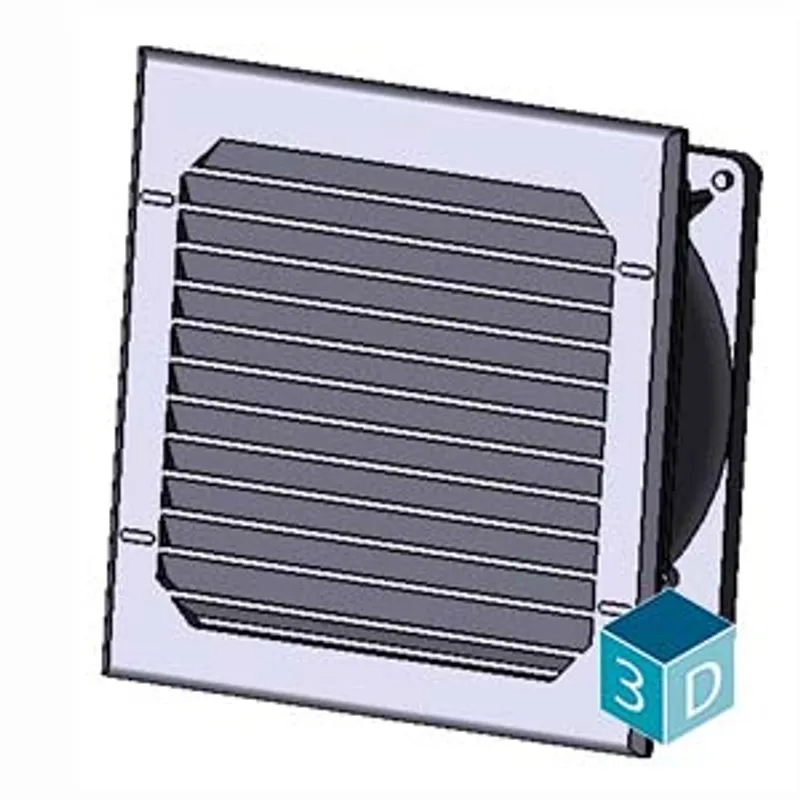

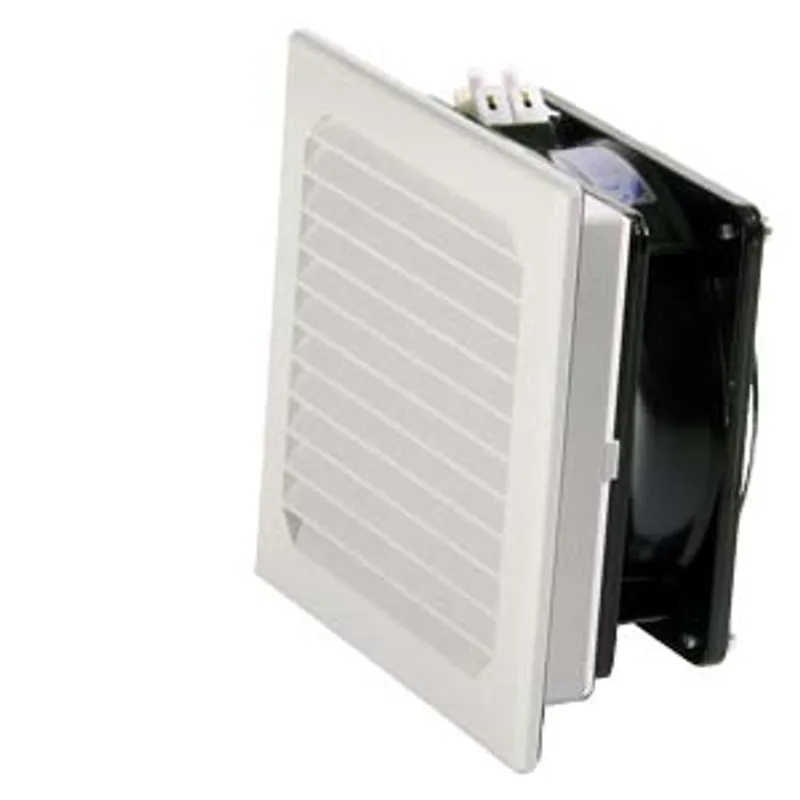

Siemens 8MR6423-2LV25
Filter fan, Extract: W: 125 mm, H: 125 mm, RAL 7032, IP54, Airflow: 63 m3/h, Ue AC: 230 V
- MPN
- 8MR6423-2LV25
- Category
- Air-Conditioning
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8MR6423-2LV25?
Filter fan, Extract: W: 125 mm, H: 125 mm, RAL 7032, IP54, Airflow: 63 m3/h, Ue AC: 230 V
Specifications
Model
| product brand name | SIVACON |
| product designation | filter fan |
| type of ventilation | ventilation |
| fan design withdrawable fan | No |
| design of the product EMC version | No |
General technical data
| A-rated sound power level maximum | 42 dB |
| consumed active power rated value | 20 W |
| cutout width | 125 mm |
| cutout height | 125 mm |
| operating period | 27 500 h |
| rotor speed at 50 Hz rated value | 2 650 1/min |
| rotor speed at 60 Hz rated value | 3 100 1/min |
| type of voltage of the operating voltage | AC |
| operating voltage — at AC at 50 Hz rated value maximum | 230 V |
| operating voltage — at AC at 60 Hz rated value maximum | 230 V |
Protection class
| protection class IP | IP54 |
Appearance
| RAL color number | 7 032 |
| color | pebble grey |
Product details
| product component fan | No |
Number
| number of ventilators | 1 |
Mechanical Design
| height | 148 mm |
| width | 148 mm |
| depth | 70 mm |
| installation location | Control cabinet side panels, door, vertical |
| fastening method | snap-on mounting |
| fastening method — 19-inch installation | No |
| fastening method — wall mounting | Yes |
| Net Weight | 807 g |
| material | plastic |
| ambient temperature during operation — minimum | -10 °C |
| ambient temperature during operation — maximum | 55 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8MR6423-2LV25: frequently asked questions
When can 8MR6423-2LV25 be shipped?
8MR6423-2LV25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8MR6423-2LV25 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8MR6423-2LV25 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8MR6423-2LV25, subject to availability and destination.
