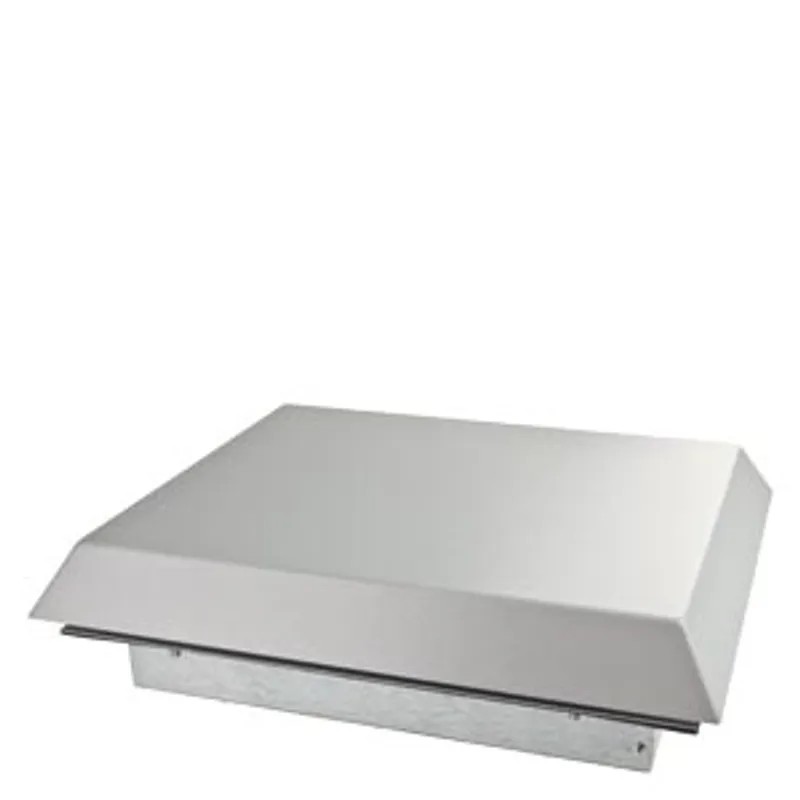

Siemens 8MR6323-5DL40
Roof fan, Extract: W: 345 mm, H: 265 mm, RAL 7035, IP44, Airflow: 405 m3/h, Ue AC: 230 V
- MPN
- 8MR6323-5DL40
- Category
- Air-Conditioning
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8MR6323-5DL40?
Roof fan, Extract: W: 345 mm, H: 265 mm, RAL 7035, IP44, Airflow: 405 m3/h, Ue AC: 230 V
Specifications
Model
| product brand name | SIVACON |
| product designation | Roof fans |
| type of ventilation | ventilation |
| fan design withdrawable fan | No |
| design of the product EMC version | No |
General technical data
| A-rated sound power level maximum | 62 dB |
| consumed active power rated value | 40 W |
| cutout width | 345 mm |
| cutout height | 265 mm |
| operating period | 40 000 h |
| rotor speed at 50 Hz rated value | 1 430 1/min |
| rotor speed at 60 Hz rated value | 1 700 1/min |
| type of voltage of the operating voltage | AC |
| consumed current maximum | 0.21 A |
| operating voltage – at AC at 50 Hz rated value maximum | 230 V |
| operating voltage – at AC at 60 Hz rated value maximum | 230 V |
Protection class
| protection class IP | IP44 |
Appearance
| RAL color number | 7 035 |
| color | light grey |
Product details
| product component fan | Yes |
Number
| number of ventilators | 1 |
Mechanical Design
| height | 340 mm |
| width | 420 mm |
| depth | 108 mm |
| installation location | Control cabinet roof |
| fastening method | screw fixing |
| fastening method – 19-inch installation | No |
| fastening method – wall mounting | No |
| Net Weight | 7.527 kg |
| material | metal |
| ambient temperature during operation – minimum | -10 °C |
| ambient temperature during operation – maximum | 60 °C |
