Home / Siemens / Siemens 8MR2170-2KD

Siemens

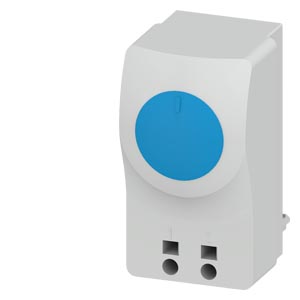

Siemens 8MR2170-2KD

Small compact thermostat NO (cooling) +32 bis +140 °F

MPN: 8MR2170-2KD

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 8MR2170-2KD?

small compact thermostat NO (cooling) +32 bis +140 °F

Specifications

Model

product brand name	SIVACON
product designation	Small thermostat
design of the product	NO contact
type of sensor	Thermal bimetal
design of the switching function	NO contact
design of the switching contact	Snap-action contact

General technical data

mechanical service life (operating cycles) typical	100 000
mounting type	clip for 35 mm DIN rail

Voltage

type of voltage of the operating voltage	AC
inrush current typical	16 A
operating voltage at AC rated value	250 V

Protection class

protection class IP

IP20

Main circuit

operational current rated value

10 A

Product details

product component — digital display	No
product component — hygrostat	No

Connections

type of connection technology

2-pole terminal 2.5 mm2

Mechanical Design

height	41 mm
width	60 mm
depth	33 mm
fastening method	terminal mounting
mounting position	any
Net Weight	48 g
material of the enclosure	plastic

Environmental conditions

relative humidity reference value	90 %
ambient temperature during operation — minimum	-45 °C
ambient temperature during operation — maximum	80 °C
ambient temperature during storage — minimum	-45 °C
ambient temperature during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR2170-2KDPDF
