Siemens

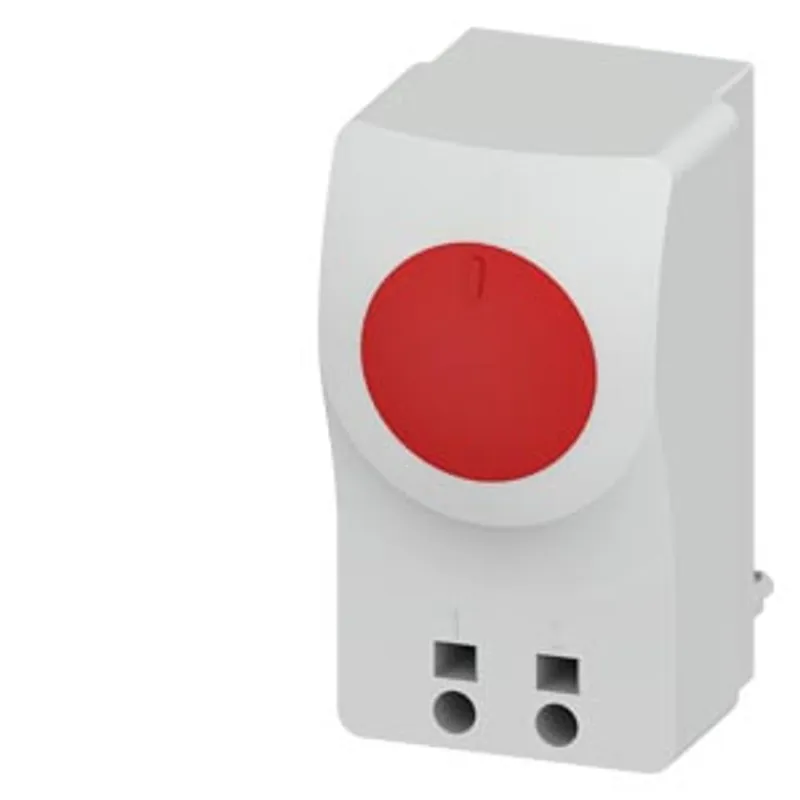

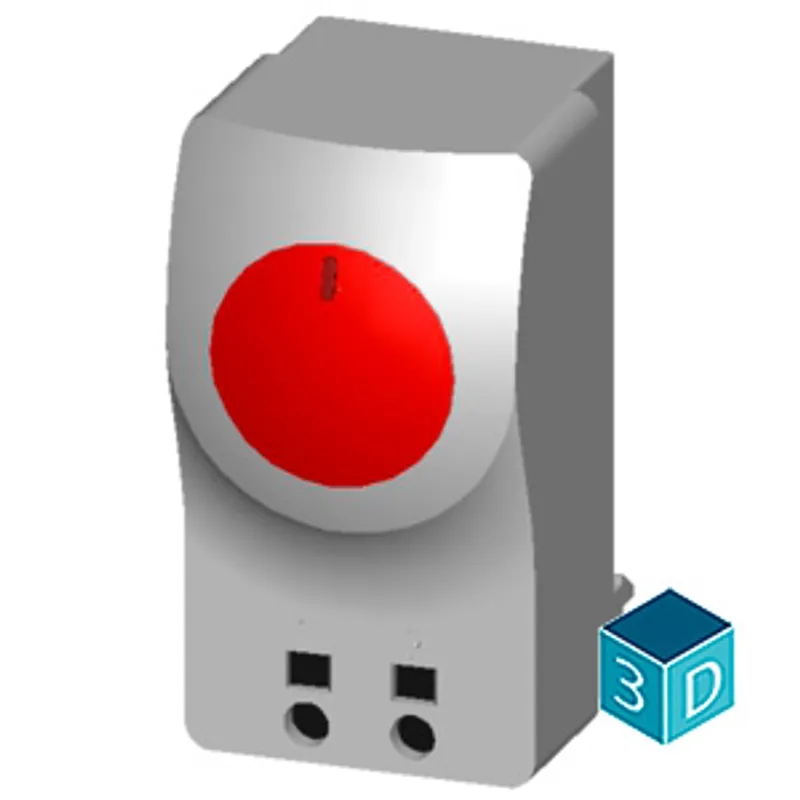

Siemens 8MR2170-1KB

Small compact thermostat NC (heating) -10 bis +50 °C

MPN: 8MR2170-1KB

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8MR2170-1KB?

small compact thermostat NC (heating) -10 bis +50 °C

Specifications

Model

product brand name	SIVACON
product designation	Small thermostat
design of the product	NC contact
type of sensor	Thermal bimetal
design of the switching function	NC contact
design of the switching contact	Snap-action contact

General technical data

mechanical service life (operating cycles) typical	100 000
mounting type	clip for 35 mm DIN rail

Voltage

type of voltage of the operating voltage	AC
inrush current typical	16 A
operating voltage at AC rated value	250 V

Protection class

protection class IP

IP20

Main circuit

operational current rated value

10 A

Adjustable parameters

adjustable temperature — initial value	-10 °C
adjustable temperature — full-scale value	50 °C

Product details

product component — digital display	No
product component — hygrostat	No

Connections

type of connection technology

2-pole terminal 2.5 mm2

Mechanical Design

height	41 mm
width	60 mm
depth	33 mm
fastening method	terminal mounting
mounting position	any
Net Weight	50 g
material of the enclosure	plastic

Environmental conditions

relative humidity reference value	90 %
ambient temperature during operation — minimum	-45 °C
ambient temperature during operation — maximum	80 °C
ambient temperature during storage — minimum	-45 °C
ambient temperature during storage — maximum	80 °C
