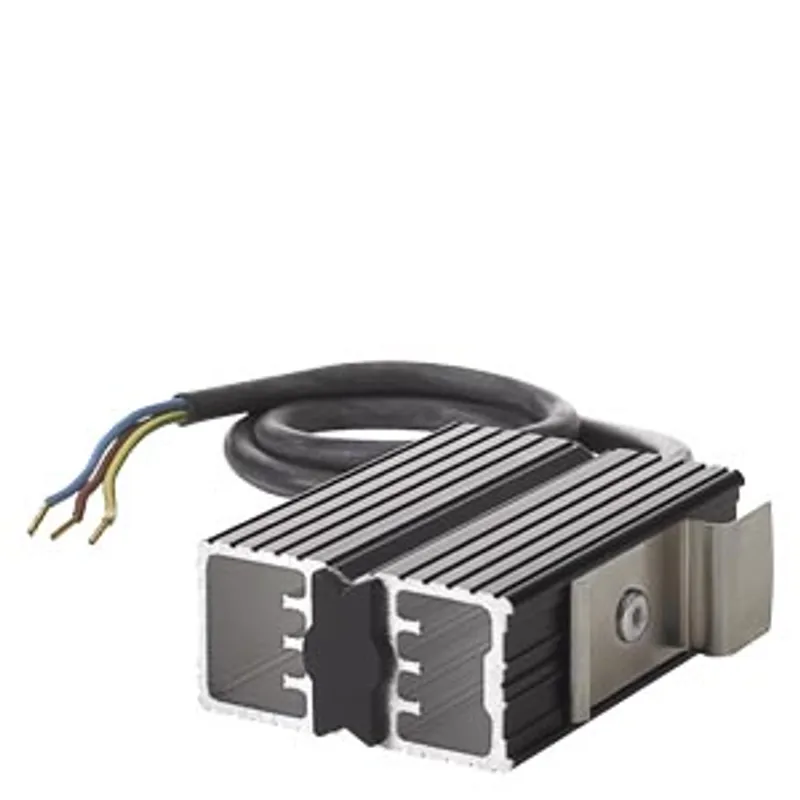

Siemens 8MR2110-3B

Semiconductor heater, small, HGK 047 110-250 V, 30 W

MPN: 8MR2110-3B

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8MR2110-3B?

Semiconductor heater, small, HGK 047 110-250 V, 30 W

Specifications

Model

product brand name	SIVACON
product designation	heater unit
design of the product	Small semiconductor

General technical data

consumed active power rated value	30 W
operating temperature — minimum	-45 °C
operating temperature — maximum	70 °C

Voltage

type of voltage of the operating voltage	AC/DC
continuous heating power at 20 °C	30 W
inrush current typical	3 A
operating voltage — rated value minimum	250 V
operating voltage — rated value maximum	250 V
operating voltage — at AC at 50 Hz rated value minimum	110 V
operating voltage — at AC at 50 Hz rated value maximum	250 V
operating voltage — at AC at 60 Hz rated value minimum	110 V
operating voltage — at AC at 60 Hz rated value maximum	250 V
operating voltage — at DC rated value minimum	110 V
operating voltage — at DC rated value maximum	250 V

Protection class

protection class IP

IP44

Main circuit

operational current of the slow-blow fuse link

2 A

Product details

product component — blower	No
product component — thermostat	No

Connections

type of connection technology

3 x 0.5 mm² x 300 mm line (silicon)

Mechanical Design

height	70 mm
width	50 mm
depth	25 mm
fastening method	Clip for 35 mm DIN rail
mounting position	air flow direction vertical (air exits on top/connection at bottom)
Net Weight	144 g

Environmental conditions

relative humidity reference value	90 %
ambient temperature during storage — minimum	-45 °C
ambient temperature during storage — maximum	70 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR2110-3BPDF

8MR2110-3B: frequently asked questions

When can 8MR2110-3B be shipped?

8MR2110-3B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8MR2110-3B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8MR2110-3B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8MR2110-3B, subject to availability and destination.
