Siemens 8MF2896-4E

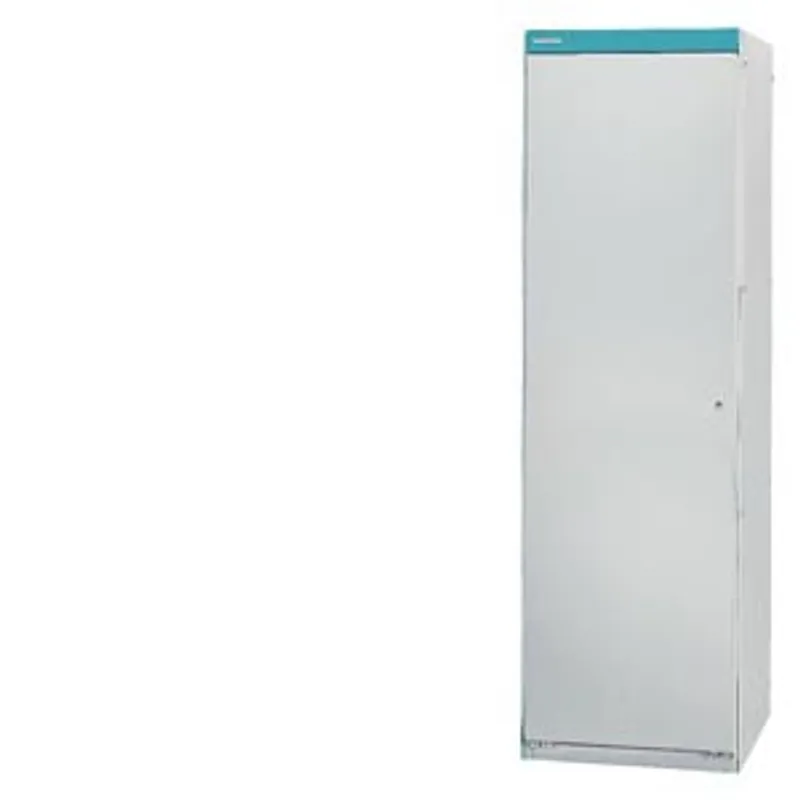

Standard cabinet 8MF2 HxWxD=1800x 900x 600 Installation: single non-ventilated, assembled, welded IP40
- MPN
- 8MF2896-4E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8MF2896-4E?
standard cabinet 8MF2 HxWxD=1800x 900x 600 Installation: single non-ventilated, assembled, welded IP40
Specifications
Model
| product brand name | SIVACON |
| product designation | standard system cubicle |
| design of the product | Non-ventilated |
| type of installation | stand-alone installation |
| design of the surface | powdered |
| design of the product EMC version | No |
| design of the control cabinet PC design | No |
| design of the control cabinet console design | No |
Protection class
| protection class IP | IP40 |
| suitability for installation for inch dimensions | 10-inch, 17-inch, 19-inch, 21-inch, 23-inch, 24-inch |
| suitability for installation for metric dimensions | M8 |
| suitability for use for outside use | No |
Appearance
| RAL color number | 7 035 |
| color | pebble grey |
| product component – removable frame | No |
| product component – ventilation door | No |
| product component – mounting plate | No |
| product component – rear door | No |
| product component – pitched roof | No |
| product component – viewing door | No |
| product component – height-adjustable mounting plate | No |
| number of locking devices | 1 |
| number of doors | 1 |
Mechanical Design
| height | 1 800 mm |
| width | 900 mm |
| depth | 600 mm |
| number of modular height units for installation height | 34 |
| fastening method | standing |
| fastening method 19-inch installation | Yes |
| Net Weight | 110 kg |
| material | steel |
