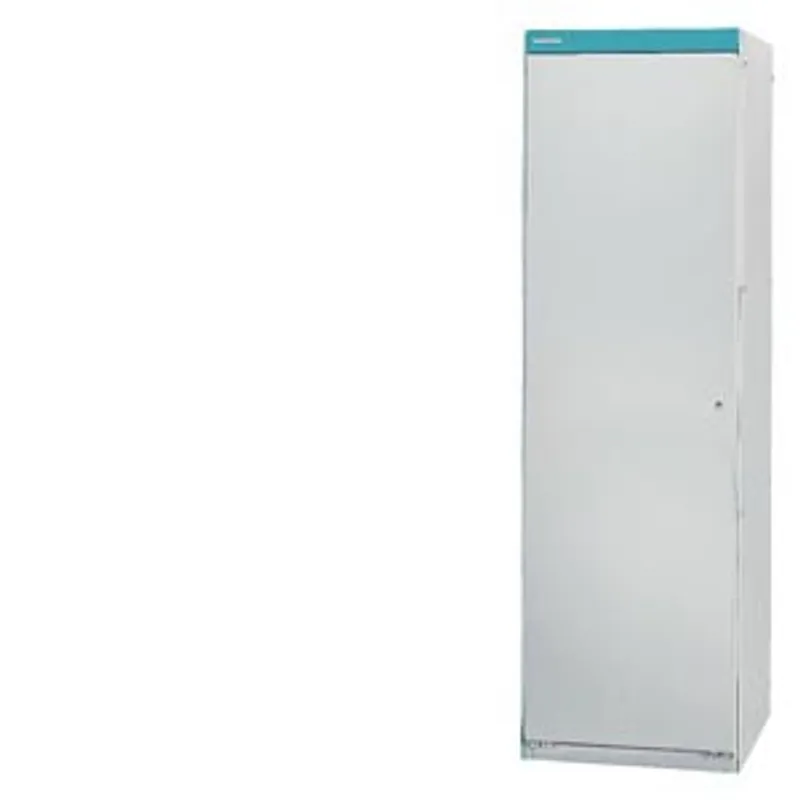

Siemens 8MF2064-4EN
SICUBE 8MF 2000 EMC cabinet
- MPN
- 8MF2064-4EN
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 8MF2064-4EN?
SICUBE 8MF 2000 EMC cabinet, welding version NI HxWxD=2000x 600x 400 mm for stand-alone installation with side panels, IP40
Specifications
Model
| product brand name | SICUBE |
| product designation | EMC cubicle |
| type of installation | stand-alone installation |
| design of the surface | frames and enclosure parts nickel-coated, enclosure parts powder-coated on the outside |
| design of the product EMC version | Yes |
| design of the control cabinet PC design | No |
| design of the control cabinet console design | No |
Protection class
| protection class IP | IP40 |
| suitability for installation for inch dimensions | 10-inch, 17-inch, 19-inch, 21-inch, 23-inch, 24-inch |
| suitability for installation for metric dimensions | M8 |
| suitability for use for outside use | No |
Appearance
| RAL color number | 7 035 |
| color | pebble grey |
| product component – removable frame | No |
| product component – ventilation door | No |
| product component – mounting plate | No |
| product component – rear door | No |
| product component – pitched roof | No |
| product component – viewing door | No |
| product component – height-adjustable mounting plate | No |
| number of locking devices | 1 |
| number of doors | 1 |
Mechanical Design
| height | 2 000 mm |
| width | 600 mm |
| depth | 400 mm |
| number of modular height units for installation height | 38 |
| fastening method | standing |
| fastening method 19-inch installation | Yes |
| Net Weight | 93.51 kg |
| material | steel |
