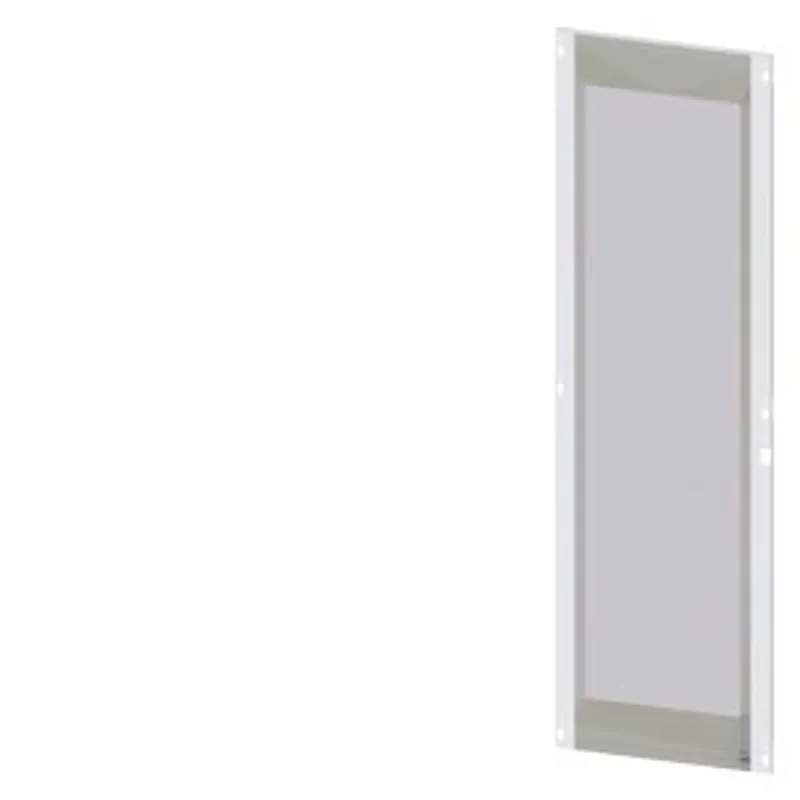

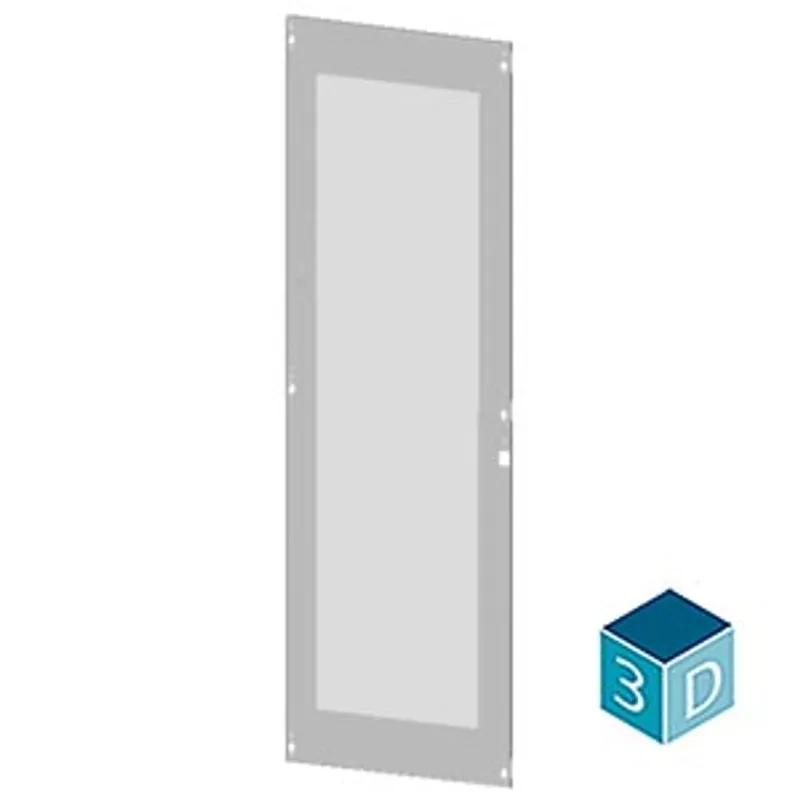

Siemens 8LK2197-6AC83

Glass door, IP54, rotary handle, W: 600 mm, hinge: left

MPN: 8LK2197-6AC83
Category: Doors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8LK2197-6AC83?

Glass door, IP54, rotary handle, W: 600 mm, hinge: left

Specifications

Model

product brand name	ALPHA 3200 Eco
product designation	glass door
design of the surface	Powder-coated
design of the product EMC version	No

Protection class

protection class IP	IP54
operating resource protection class	1

Appearance

color

light grey

Product details

product component — ventilation	No
product component — viewing door	Yes
product component — door for disconnector lock	No
accessories included	no

Mechanical Design

height	2 000 mm
width	600 mm
depth	25 mm
opening direction of the door	left
mounting position	vertical
ventilation cross section inlet can be used	0 cm²
ventilation cross section outlet can be used	0 cm²
Net Weight	9.303 kg
material	sheet-steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8LK2197-6AC83PDF
