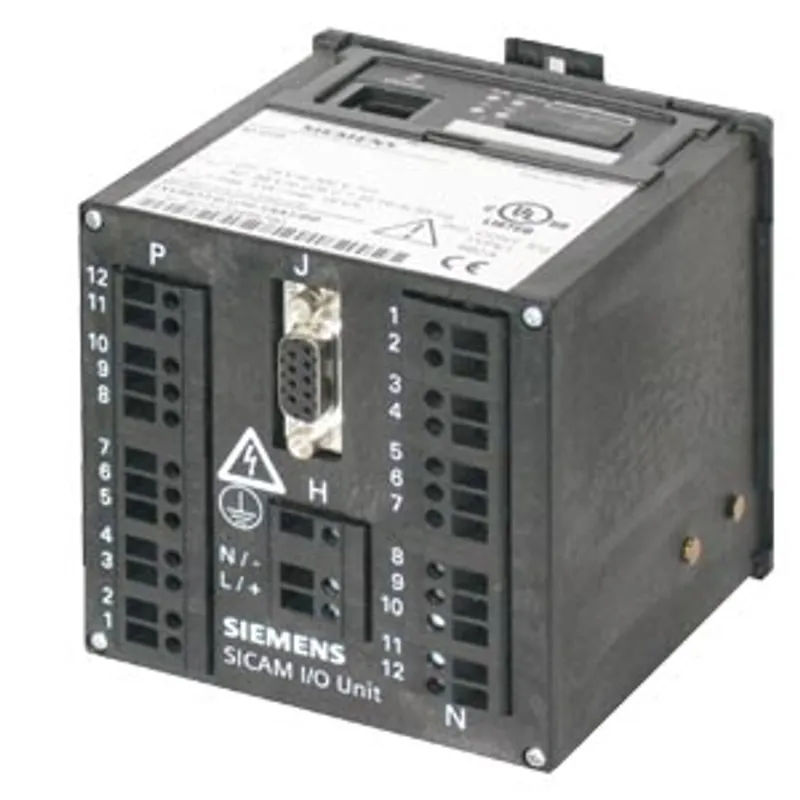

Siemens 7XV5673-0JJ00-2AA1
SICAM I/O Unit with 6 binary inputs and outputs
- MPN
- 7XV5673-0JJ00-2AA1
- Category
- 7XV5673 - SICAM I/O-Unit
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7XV5673-0JJ00-2AA1?
SICAM I/O Unit with 6 binary inputs and outputs, Use for binary signal transmission or as I/O Add-on of a device, integrated Ethernet switch, Wide range power supply: 24 - 240 V DC, 100 - 230 V AC, for installation on standard mounting rail, Degree of protection IP20, Ethernet interface with Modbus TCP/UDP binary signal transmission or IEC 61850 (GOOSE, MMS, Reporting)
Specifications
Measuring functions
| sampling frequency / per sampling cycle | 1 000 Hz |
File formats
| type of data transmission / via CSV | Yes |
Supply voltage
| supply voltage / at AC | 100 ... 230 V |
| supply voltage / at DC | 24 ... 250 V |
| type of voltage / of the supply voltage | AC/DC |
Inputs / Outputs
| number of digital inputs | 6 |
| number of digital outputs | 6 |
Communication
| protocol / is supported / IEC 61850 | Yes |
| protocol / is supported / Modbus TCP | Yes |
| protocol / is supported / Modbus RTU | No |
| protocol / is supported / Modbus UDP | Yes |
| protocol / is supported / SNMP | Yes |
| communication function / Modbus RTU as master | No |
| number of ports / of the Ethernet interface | 1 |
| number of ports / maximum / note | 2 ports for using the 7KE6000-8GD00-0BA2 adaptor |
Cybersecurity
| service / as web server / HTTP | Yes |
Time synchronization
| type of time synchronization | internal, NTP, Modbus RTU, Modbus TCP |
Mechanical Design
| width | 96 mm |
| height | 96 mm |
| depth | 100 mm |
| weight | 550 g |
| fastening method / DIN-rail mounting | Yes |
| type of electrical connection | screw terminal |
| connectable conductor cross-section | 2.5 mm² |
Degree of protection / protection class
| protection class IP / on the front | IP20 |
| protection class IP / rear side | IP20 |
Environmental conditions
| ambient temperature / during operation | -25 ... +70 °C |
| ambient temperature / during storage | -25 ... +70 °C |
Approval certification
| certificate of suitability / CE marking | Yes |
| certificate of suitability / UL approval | Yes |
