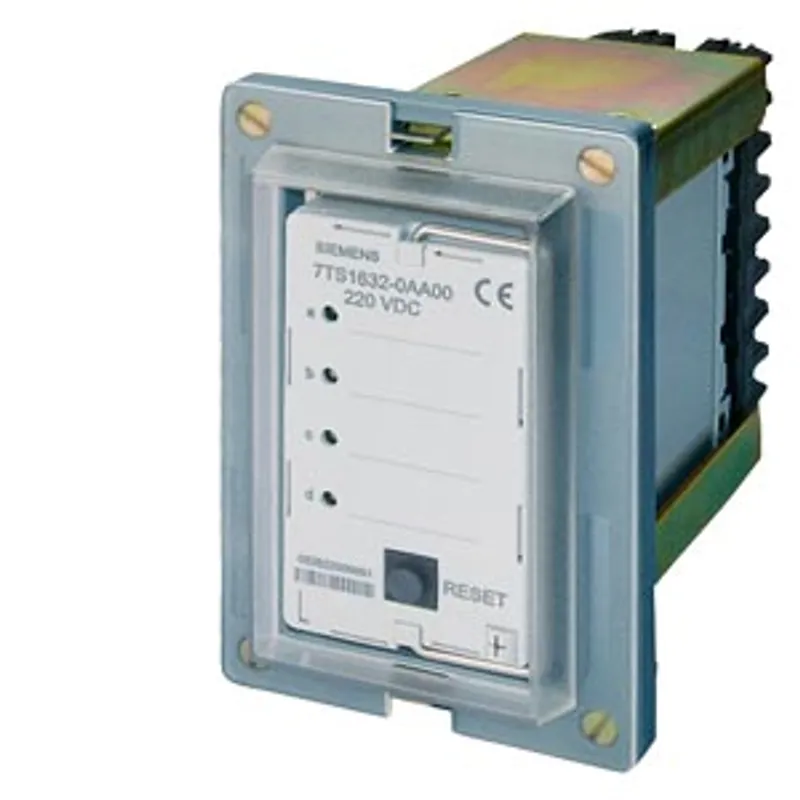

Siemens 7TS1642-0AA00-1
ANNUNCIATION RELAY WITH 4 LED INDICATIONS AND RESET PUSH BUTTON AUXILIARY VOLTAGE: 220V DC RELAIS WITH SOCKET…
- MPN
- 7TS1642-0AA00-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7TS1642-0AA00-1?
ANNUNCIATION RELAY WITH 4 LED INDICATIONS AND RESET PUSH BUTTON AUXILIARY VOLTAGE: 220V DC RELAIS WITH SOCKET 7XP9010-2 FOR FLUSH MOUNTING
Specifications
General technical data
| type of voltage | DC |
| continuous current | 8 A |
| switching behavior | monostable |
| type of switching contact | bifurcated contact |
| design of the switching function / positively driven | Yes |
| response time | 5 ms |
Product details
| product component / LED | Yes |
Product Functions
| manual RESET | Yes |
Supply voltage
| supply voltage / at DC / rated value | 220 V |
Inputs / Outputs
| number of NC contacts | 0 |
| number of NO contacts | 4 |
| number of CO contacts | 4 |
| switching capacity active power / at DC / maximum | 1 650 W |
| switching capacity active power / at DC / maximum / note | at 110V DC |
Mechanical Design
| width | 120 mm |
| height | 80 mm |
| depth | 144.5 mm |
| type of electrical connection | screw terminal |
| design of the snap-on socket base | flush mounting socket |
Degree of protection / protection class
| protection class IP / on the front | IP40 |
| protection class IP / rear side | IP10 |
Environmental conditions
| ambient temperature / during operation | -10 ... +55 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
7TS1642-0AA00-1: frequently asked questions
When can 7TS1642-0AA00-1 be shipped?
7TS1642-0AA00-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7TS1642-0AA00-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7TS1642-0AA00-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7TS1642-0AA00-1, subject to availability and destination.
