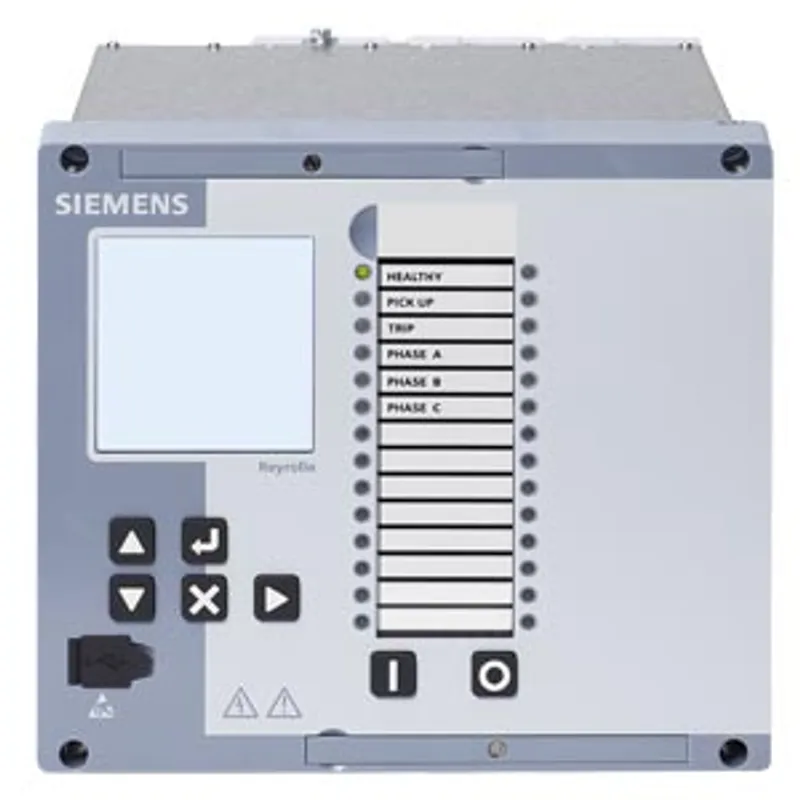

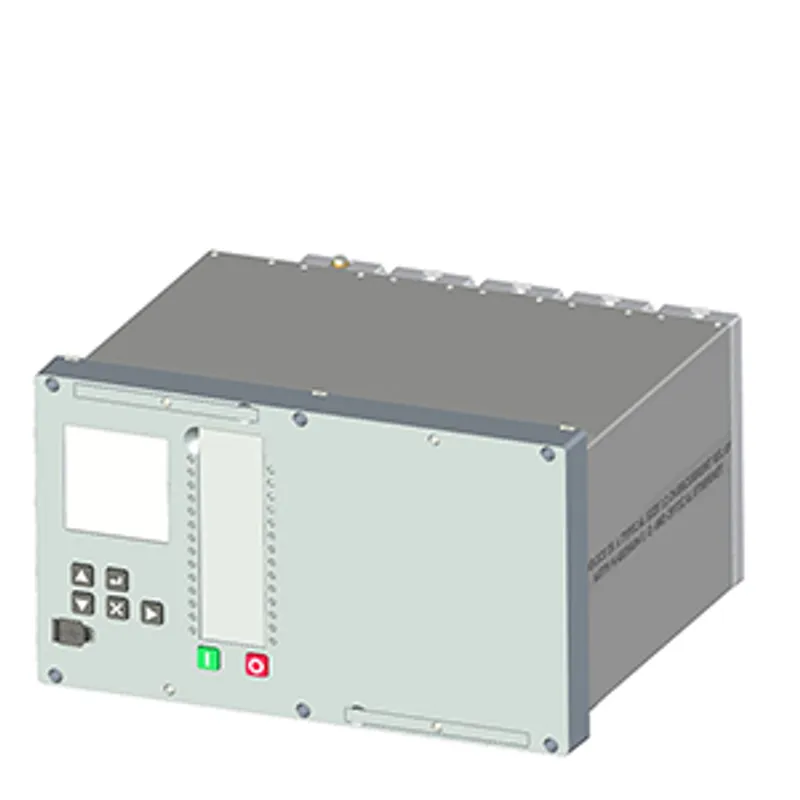

Siemens 7SR5710-3AF12-0AA0
Motor prot. 7SR57 4 curr. trans., 8 TSI (Temperature Sensor Input), 18 BI
- MPN
- 7SR5710-3AF12-0AA0
- Category
- Reyrolle 7SR57 - 4/8xl, 0/4xV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7SR5710-3AF12-0AA0?
Motor prot. 7SR57 4 curr. trans., 8 TSI (Temperature Sensor Input), 18 BI, 10 BO Standard interface: 1 x USB (front), RS 485 (rear) + 2 x RJ45 interfaces, S8 enclosure
Specifications
Product details
| product feature / conformal coating | No |
| warranty period | 5 a |
| number of function keys | 7 |
| number of LEDs | 28 |
Product Functions
| type of measured value detection / of operational measured value / standard | Yes |
| type of measured value detection / expanded / min./max. values, mean values | Yes |
| switching statistics | Yes |
| circuit breaker monitoring | Yes |
| product feature / logic editor | Yes |
| control | Yes |
| fault recording for analog and digital signals | Yes |
| sequence-of-events recorder | Yes |
| monitoring | Yes |
| number of parameter sets | 4 |
| parameter set switchover | Yes |
| circuit breaker test | Yes |
Protection Functions
| three-pole tripping | Yes |
| with blocked rotor (ANSI 14) | Yes |
| undervoltage protection (ANSI 27) | No |
| undervoltage protection (ANSI 27) / 3-phase | No |
| directional power monitoring (ANSI 32) | No |
| undercurrent protection (ANSI 37) | Yes |
| temperature monitoring (ANSI 38) | Yes |
| unbalance protection (ANSI 46) | Yes |
| overcurrent-time protection negative sequence system (ANSI 46) | Yes |
| phase-rotation supervision (ANSI 47) | No |
| blocked rotor monitoring (ANSI 48) | Yes |
| thermal overload protection (ANSI 49) | Yes |
| definite overcurrent-time protection (ANSI 50/50N) | Yes |
| arc protection (ANSI AFD) | No |
| sensitive ground current protection (ANSI 50Ns) | No |
| circuit breaker failure protection (ANSI 50BF) | Yes |
| load step protection (ANSI 50L) | No |
| dependent overcurrent-time protection (ANSI 51/51N) | Yes |
| power factor (ANSI 55) | No |
| overvoltage protection (ANSI 59) | No |
| overvoltage protection zero-sequence system (ANSI 59N) | No |
| grounding protection (machine) (ANSI 64) | No |
| reclosing lockout (ANSI 66) | Yes |
| directional overcurrent-time protection, phases (ANSI 67) | No |
| directional ground fault protection (ANSI 67N) | No |
| directional sensitive ground-fault detection for resonant-grounded systems and isolated systems (ANSI 67Ns) | No |
| trip-circuit supervision (ANSI 74TC) | Yes |
| frequency protection (ANSI 81) | No |
| closing lock-out (ANSI 86) | Yes |
| protection function / high-impedance ground fault differential protection (ANSI 87N) | Yes |
| protection function / differential protection, motor (ANSI 87M) | No |
| external trip initiation | Yes |
Supply voltage
| supply voltage / at AC | 100 ... 230 V |
| supply voltage / at DC | 24 ... 250 V |
| type of voltage / of the supply voltage | AC/DC |
Inputs / Outputs
| number of digital inputs / maximum | 18 |
| number of inputs / for temperature sensor | 8 |
| number of sensor inputs / for arc detectors | 0 |
| number of digital outputs / incl. signaling contact / maximum | 10 |
| number of fast digital outputs | 0 |
| number of voltage inputs / maximum | 0 |
| number of current inputs / maximum | 4 |
| product component / with RTD unit connection | Yes |
Communication
| type of electrical connection / of the communication interface | 1x USB (front), 1x RS485, 2x optical LC |
| product component / operating interface (on the front) | Yes |
| protocol / is supported / Modbus TCP | Yes |
| protocol / is supported / SNMP v3 | Yes |
| protocol / is supported / IEC 60870-5-103 | Yes |
| protocol / is supported / IEC 61850-8-1 | Yes |
| protocol / is supported / Modbus RTU device | Yes |
| protocol / is supported / DNP 3, serial | Yes |
| protocol / is supported / DNP 3.0 TCP as server | Yes |
| protocol / is supported / PRP | Yes |
| protocol / is supported / RSTP | Yes |
| protocol / is supported / HSR | Yes |
Time synchronization
| type of time synchronization | Data comms or Digital input |
Mechanical Design
| width | 205 mm |
| height | 177 mm |
| depth | 217.5 mm |
| frame size of enclosure | S8 |
| product function / hardware configuration expandable | No |
| design of the display | LCD |
Environmental conditions
| ambient temperature / during operation | -10 ... +55 °C |
