Siemens 7PV1508-1BW30
Timing relay, electronic Multifunction 2 change-over contacts
- MPN
- 7PV1508-1BW30
- Category
- 7PV15 timing relays 17.5 mm
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

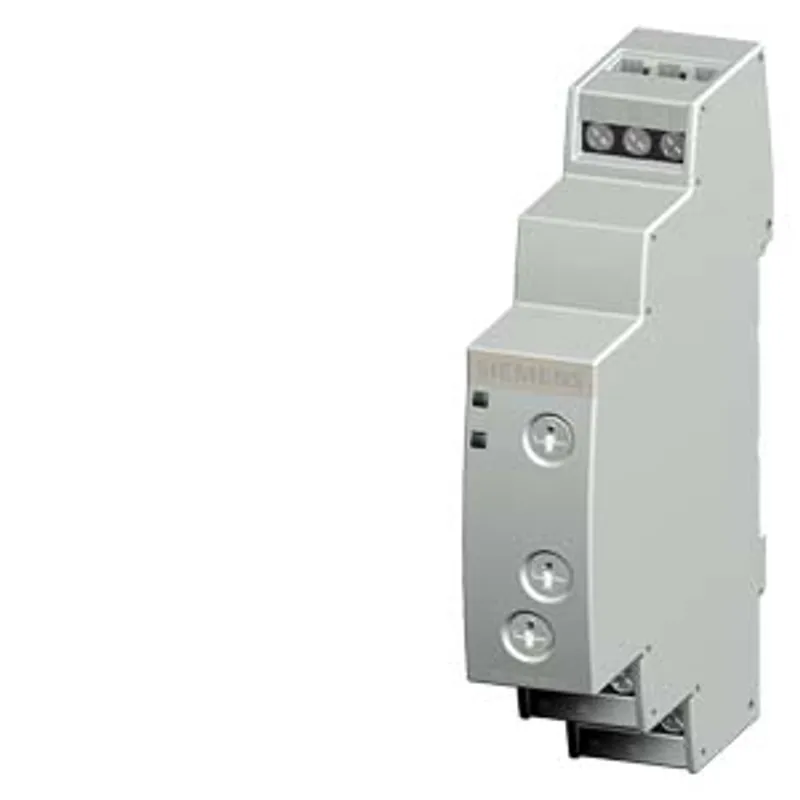

What is the Siemens 7PV1508-1BW30?
Timing relay, electronic Multifunction 2 change-over contacts, 7 functions 7 time ranges 0.05 s ... 100 h 12-240 V AC/DC with LED, Screw terminal
Specifications
General
| product brand name | SIRIUS |
| product designation | timing relay |
| design of the product | Multifunctional |
| product type designation | 7PV15 |
General technical data
| product component semi-conductor output | No |
| product extension required remote control | No |
| product extension optional remote control | No |
| power loss [W] maximum | 2 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| test voltage for isolation test | 2.2 kV |
| degree of pollution | 2 |
| surge voltage resistance rated value | 4 000 V |
| test voltage for surge voltage test | 4 800 V |
| shock resistance according to IEC 60068-2-27 | 11 g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| adjustable time | 0.05 s ... 100 h |
| relative setting accuracy relating to full-scale value | 5 %; +/- |
| ON period/maximum minimum | 35 ms |
| recovery time | 500 ms |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 2 %; +/- |
| influence of the surrounding temperature | 2% in complete temperature range for the set duration |
| power supply influence | 2% in complete voltage range for the set duration |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 82 g |
Control circuit/ Control
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 12 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 12 ... 240 V |
| control supply voltage 1 at AC — at 50 Hz | 12 ... 240 V |
| control supply voltage 1 at AC — at 60 Hz | 12 ... 240 V |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| control supply voltage at DC rated value | 12 ... 240 V |
| control supply voltage 1 at DC | 12 ... 240 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.85 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value | 1.1 |

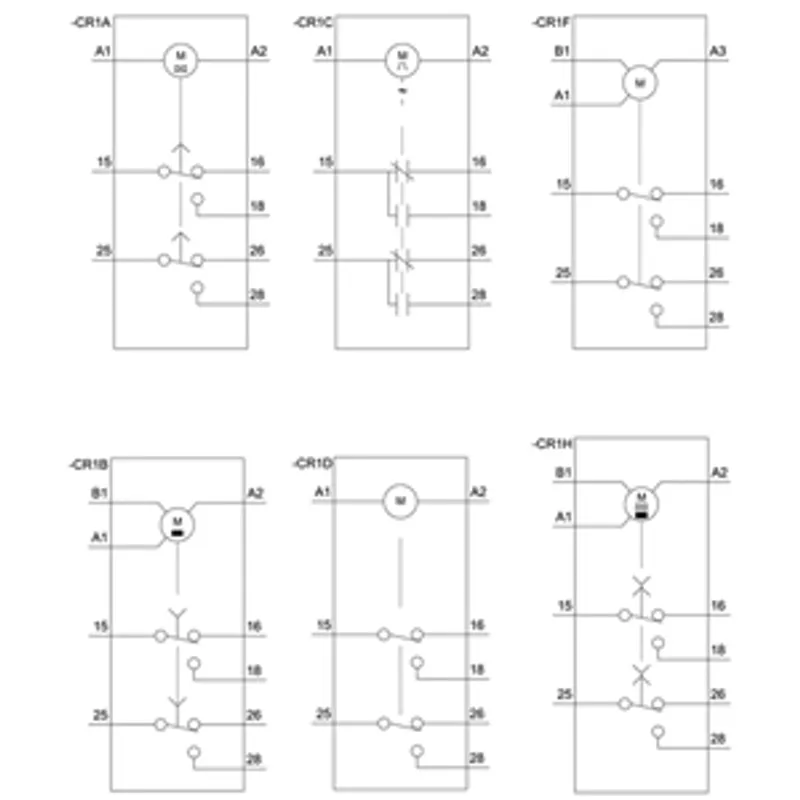

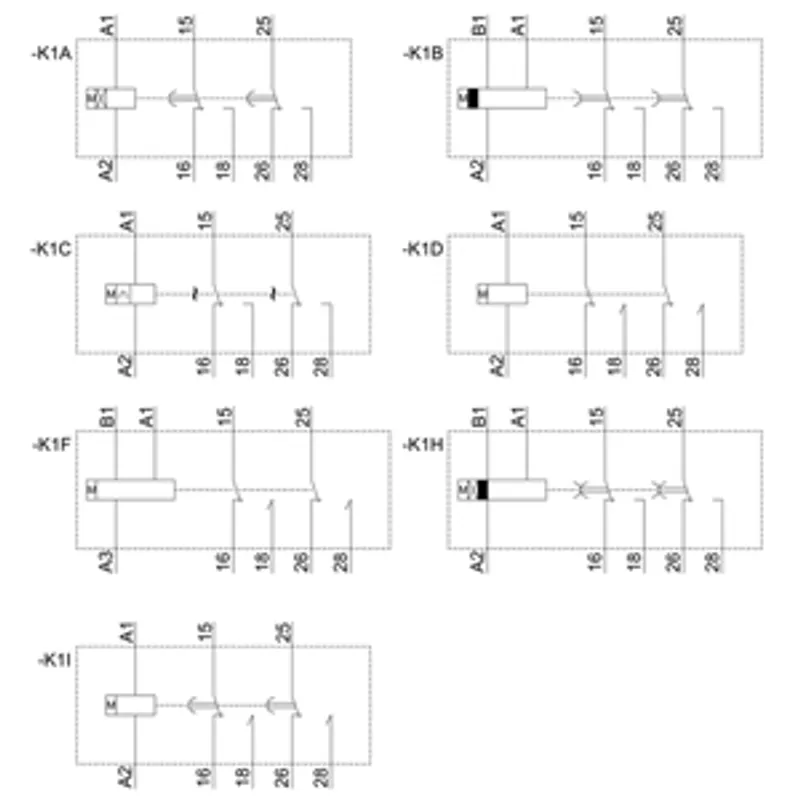

Switching Function
| switching function — ON-delay | Yes |
| switching function — ON-delay/instantaneous contact | No |
| switching function — passing make contact | Yes |
| switching function — passing make contact/instantaneous contact | No |
| switching function — OFF delay | No |
| switching function — flashing symmetrically with interval start/instantaneous | No |
| switching function — flashing symmetrically with interval start | Yes |
| switching function — flashing symmetrically with pulse start/instantaneous | No |
| switching function — flashing symmetrically with pulse start | No |
| switching function — flashing asymmetrically with interval start | No |
| switching function — flashing asymmetrically with pulse start | No |
| switching function — star-delta circuit with delay time | No |
| switching function — star-delta circuit | No |
| switching function with control signal — additive ON-delay | No |
| switching function with control signal — passing break contact | No |
| switching function with control signal — passing break contact/instantaneous | No |
| switching function with control signal — OFF delay | Yes |
| switching function with control signal — OFF delay/instantaneous | No |
| switching function with control signal — pulse delayed | Yes |
| switching function with control signal — pulse delayed/instantaneous | No |
| switching function with control signal — pulse-shaping | Yes |
| switching function with control signal — pulse-shaping/instantaneous | No |
| switching function with control signal — additive ON-delay/instantaneous | No |
| switching function with control signal — ON-delay/OFF-delay | Yes |
| switching function with control signal — ON-delay/OFF-delay/instantaneous | No |
| switching function with control signal — passing make contact | No |
| switching function with control signal — passing make contact/instantaneous contact | No |
| switching function of interval relay with control signal — retrotriggerable with deactivated control signal/instantaneous contact | No |
| switching function of interval relay with control signal — retrotriggerable with switched-on control signal | No |
| switching function of interval relay with control signal — retrotriggerable with switched-on control signal/instantaneous contact | No |
| switching function of interval relay with control signal — retriggerable with deactivated control signal | No |
| design of the control terminal non-floating | Yes |
Short-circuit protection
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
Auxiliary circuit
| material of switching contacts | AgSnO2 |
| number of NC contacts — delayed switching | 0 |
| number of NC contacts — instantaneous contact | 0 |
| number of NO contacts — delayed switching | 0 |
| number of NO contacts — instantaneous contact | 0 |
| number of CO contacts — delayed switching | 2 |
| number of CO contacts — instantaneous contact | 0 |
| operational current of auxiliary contacts at AC-15 — maximum | 3 A |
| operational current of auxiliary contacts at AC-15 — at 24 V | 3 A |
| operational current of auxiliary contacts at AC-15 — at 250 V | 3 A |
| operational current of auxiliary contacts as NC contact at AC-15 — at 24 V | 3 A |
| operational current of auxiliary contacts as NC contact at AC-15 — at 250 V | 3 A |
| operational current of auxiliary contacts as NO contact at AC-15 — at 24 V | 3 A |
| operational current of auxiliary contacts as NO contact at AC-15 — at 250 V | 3 A |
| operational current of auxiliary contacts at DC-13 | 1 ... 0.01 |
| operational current of auxiliary contacts at DC-13 — at 24 V | 1 A |
| operational current of auxiliary contacts at DC-13 — at 125 V | 0.22 A |
| operational current of auxiliary contacts at DC-13 — at 250 V | 0.1 A |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| contact rating of auxiliary contacts according to UL | R150 / B300 |
| switching capacity current with inductive load | 0.01 ... 3 A |
Inputs/ Outputs
| product function — at the relay outputs switchover delayed/without delay | No |
| product function — non-volatile | No |
| ampacity of the output relay at AC-15 at 250 V at 50/60 Hz | 3 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0.22 A |
Electromagnetic compatibility
| EMC immunity according to IEC 61812-1 | EN 61000-6-2 |
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
Safety related data
| category according to EN 954-1 | none |
| protection class IP on the front according to IEC 60529 | IP20 |
| type of insulation | Basic insulation |

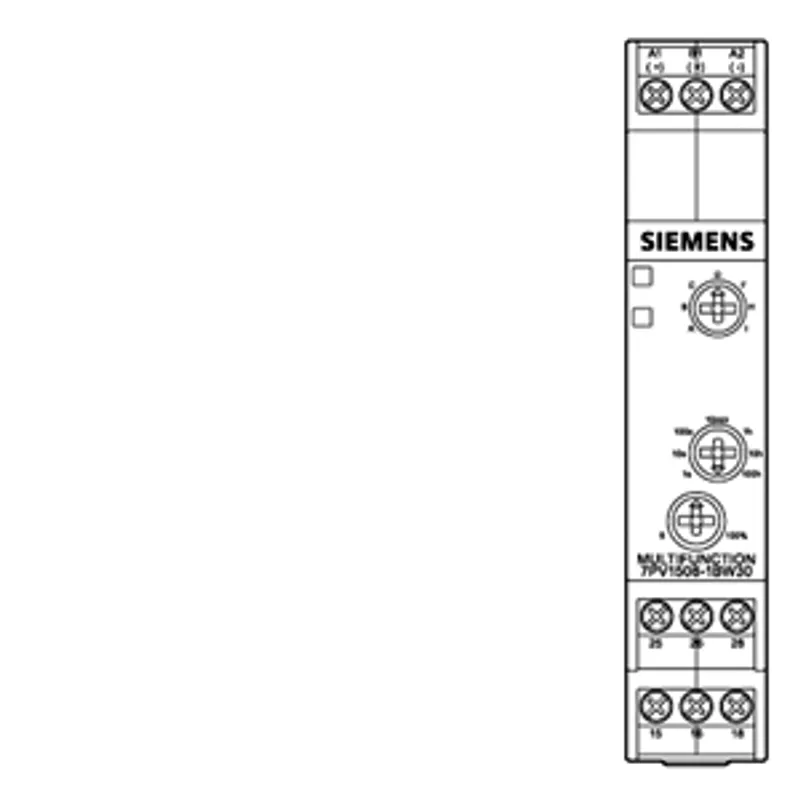

Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | No |
| type of electrical connection | screw terminal |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — solid | 1x (0.2 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 1x (0.2 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (24 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 1x (24 ... 14) |
| connectable conductor cross-section — solid | 0.2 ... 2.5 m² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 m² |
| connectable conductor cross-section — finely stranded without core end processing | 0.2 ... 1.5 m² |
| AWG number as coded connectable conductor cross section — solid | 24 ... 14 |
| AWG number as coded connectable conductor cross section — stranded | 24 ... 14 |

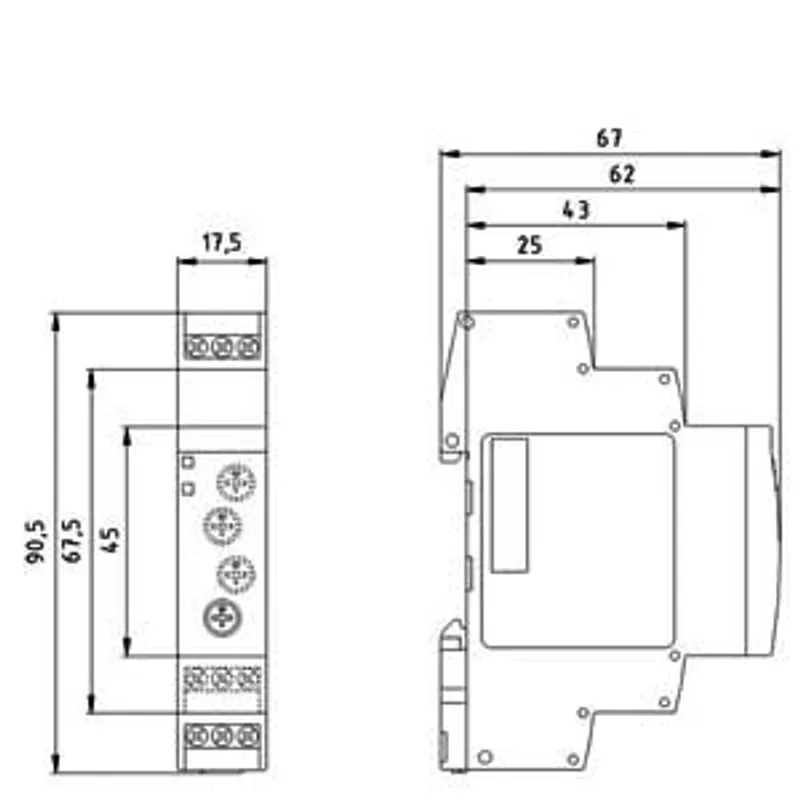

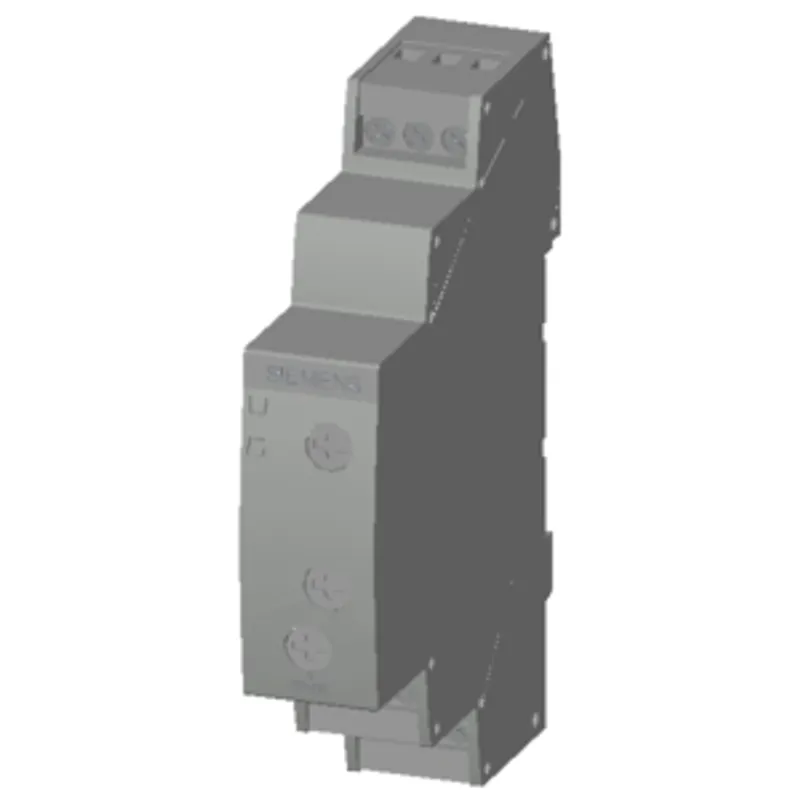

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on fastening on 35 mm DIN rail |
| height | 90 mm |
| width | 17.5 mm |
| depth | 66.7 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| relative humidity during operation | 15 ... 85 % |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 1.34 kg |
| global warming potential [CO2 eq] / during operation | 21.2 kg |
| global warming potential [CO2 eq] / after end of life | -0.156 kg |
| global warming potential [CO2 eq] / total | 22.4 kg |
