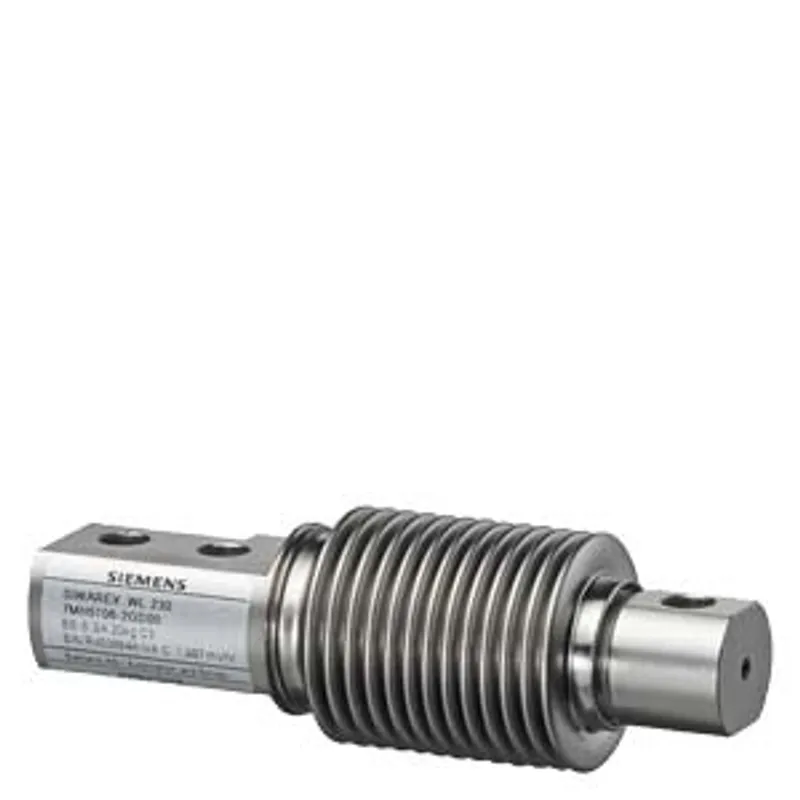

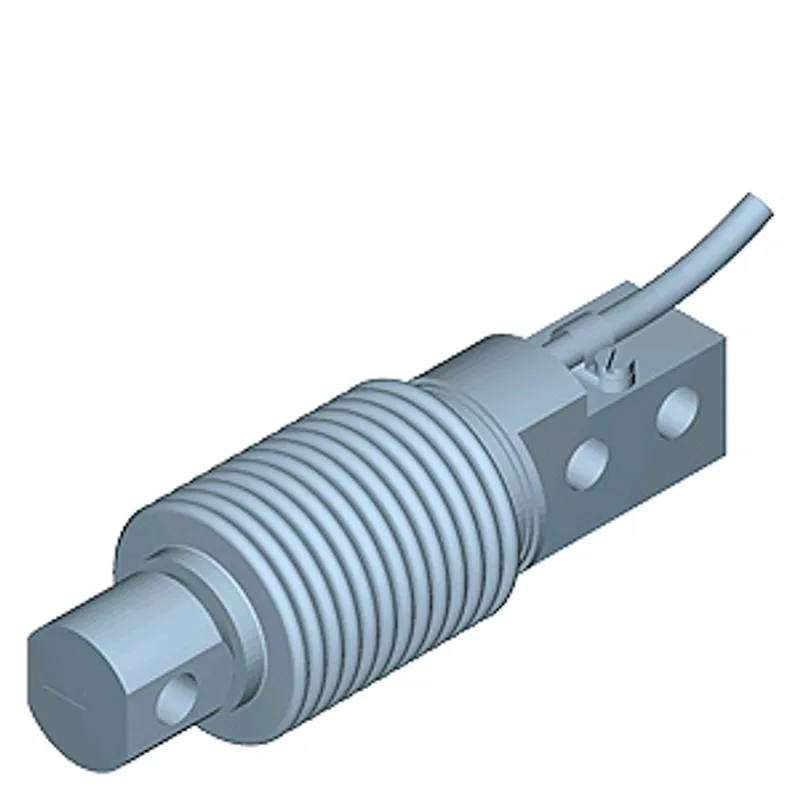

Siemens 7MH5106-2PD01
Load cell SIWAREX WL230 BB-S SA 50kg C3 Ex, strain gauge in bending beam / multi point design
- MPN
- 7MH5106-2PD01
- Category
- Load cell
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7MH5106-2PD01?
Load cell SIWAREX WL230 BB-S SA 50kg C3 Ex, strain gauge in bending beam / multi point design, rated load 50kg, accuracy class C3, cable length 3m, 4 wire, material stainless steel EN 1.4542, degree of protection IP68, with explosion protection
Specifications
General
| manufacturer's name | Siemens |
| product brand name | SIWAREX WL230 |
| product designation | Weighing Technology - Load cell |
| supplier name | Siemens |
| marketing text / 1 / as slogan | The right load cell for every application |
| marketing text | SIWAREX load cells from Siemens are designed for use in both static and dynamic weighing systems. They enable high-precision weight detection in platform, hopper, belt, or crane scales as well as in dosing and filling systems. The load cells work on the basis of full-bridge, analog strain gauges (EMS). They cover a wide range of rated loads – from a few kilograms to several tons – and are available in a variety of designs and materials. They are suitable for use in harsh industrial environments and meet degrees of protection up to IP68. |

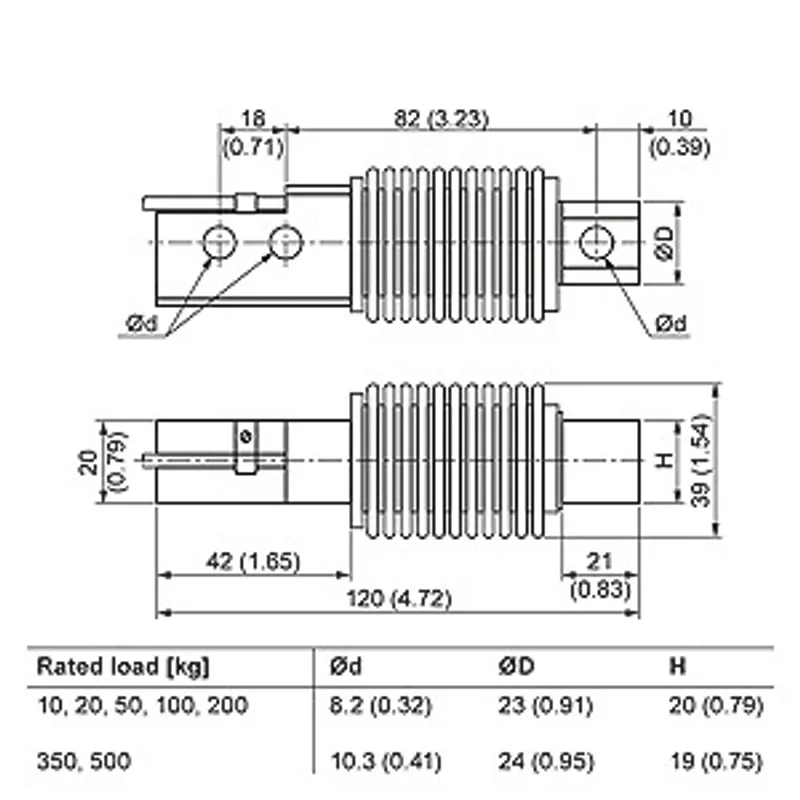

design, dimensions and weights
| depth | 39 mm |
| width | 120 mm |
| height | 39 mm |
| diameter | 39 mm |
| net weight | 0.6 kg |
| product type designation | SIWAREX WL230 load cell |
| design | bending beam / multi-point |
| material | corrosion-free steel |
electrical data
| design of the product | strain gauge |
| design of the interface | analog |
| accuracy class | C3 |
ambient conditions
| ambient temperature / during operation / minimum | -35 °C |
| ambient temperature / during operation / maximum | 65 °C |
| protection class IP | IP68 |
| product feature / explosion-protected design | Yes |
