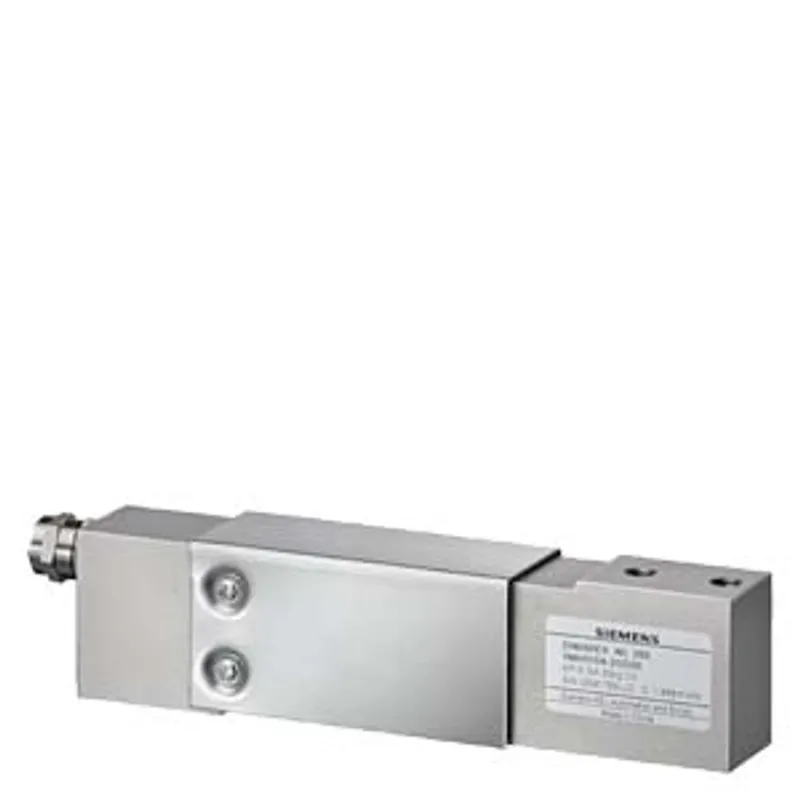

Siemens 7MH5104-2PD01

Load cell SIWAREX WL260 SP-S SA 50kg C3 Ex, strain gauge in platform / single point design, rated load 50kg

MPN
7MH5104-2PD01
Category
Load cell
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 7MH5104-2PD01?

Load cell SIWAREX WL260 SP-S SA 50kg C3 Ex, strain gauge in platform / single point design, rated load 50kg, accuracy class C3, cable length 1m, 6 wire, material stainless steel EN 1.4542, degree of protection IP67, with explosion protection

Specifications

General

manufacturer's nameSiemens
product brand nameSIWAREX WL260
product designationWeighing Technology - Load cell
supplier nameSiemens
marketing text / 1 / as sloganThe right load cell for every application
marketing textSIWAREX load cells from Siemens are designed for use in both static and dynamic weighing systems. They enable high-precision weight detection in platform, hopper, belt, or crane scales as well as in dosing and filling systems. The load cells work on the basis of full-bridge, analog strain gauges (EMS). They cover a wide range of rated loads – from a few kilograms to several tons – and are available in a variety of designs and materials. They are suitable for use in harsh industrial environments and meet degrees of protection up to IP68.

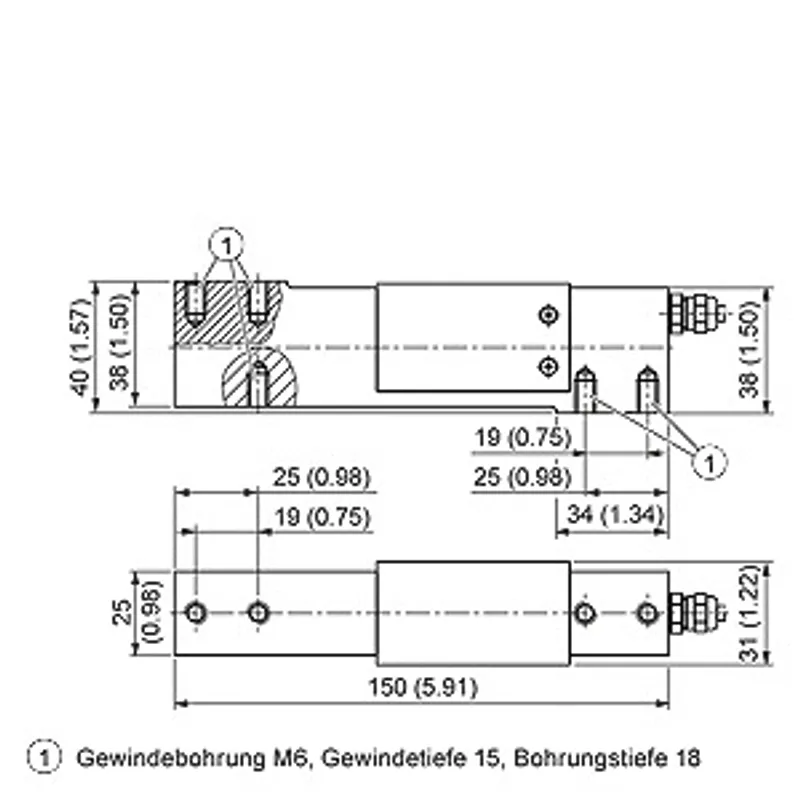

design, dimensions and weights

depth25 mm
width150 mm
height40 mm
net weight1.1 kg
product type designationSIWAREX WL260 load cell
designplatform / single-point
materialcorrosion-free steel

electrical data

design of the productstrain gauge
design of the interfaceanalog
accuracy classC3

ambient conditions

ambient temperature / during operation / minimum-35 °C
ambient temperature / during operation / maximum65 °C
protection class IPIP67
product feature / explosion-protected designYes

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

7MH5104-2PD01: frequently asked questions

When can 7MH5104-2PD01 be shipped?

7MH5104-2PD01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7MH5104-2PD01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7MH5104-2PD01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7MH5104-2PD01, subject to availability and destination.
