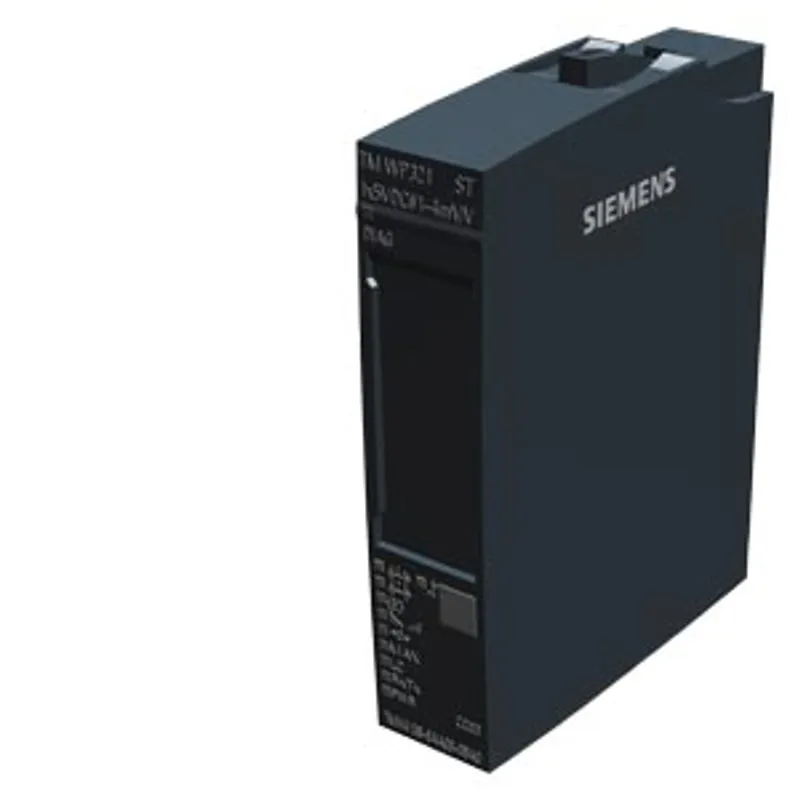

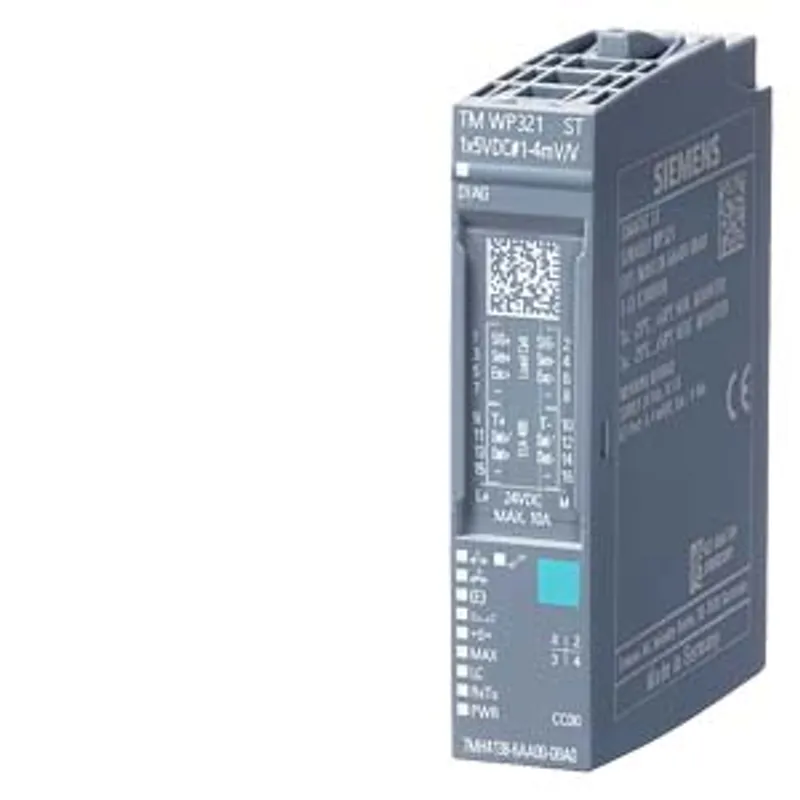

Siemens 7MH4138-6AA00-0BA0

SIMATIC ET 200SP, TM SIWAREX WP321 ST

MPN
7MH4138-6AA00-0BA0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 7MH4138-6AA00-0BA0?

SIMATIC ET 200SP, TM SIWAREX WP321 ST, single-channel weighing module for platform or hopper scales with analog load cells / strain gauges (full bridges), 1xRS485, 1xLC load cell interface (1-4mV/V), suitable for BU type A0, packing quantity: 1 unit, Detailed load cell diagnostics with digital junction box SIWAREX DB (7MH5001-0AD20 or 7MH5001-0AD01)

Specifications

General information

Product type designationTM SIWAREX WP321 ST
HW functional statusFS04
Firmware versionV1.4.3
Firmware version — FW update possibleYes
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC00
Product function — I&M dataYes; I&M0 to I&M3
Product function — Isochronous modeNo
Product function — Adjustment of measuring rangeNo
Engineering with — STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V14 or higher
Engineering with — STEP 7 configurable/integrated from versionFrom STEP 7 V5.4 and higher
Engineering with — PROFIBUS from GSD version/GSD revisionGSD Revision 5
Engineering with — PROFINET from GSD version/GSD revisionGSDML V2.34

Supply voltage

Rated value (DC)24 V
Load voltage L+ — Rated value (DC)24 V
Load voltage L+ — permissible range, lower limit (DC)19.2 V
Load voltage L+ — permissible range, upper limit (DC)28.8 V
Load voltage L+ — Short-circuit protectionYes
Load voltage L+ — Reverse polarity protectionYes

Input current

Current consumption, max.100 mA

Encoder supply

Output voltage (DC)4.85 V
Short-circuit protectionYes

Power

Power consumption from the backplane bus70 mW

Power loss

Power loss, typ.2 W

Address area

Address space per module — Inputs16 byte
Address space per module — Outputs16 byte

Hardware configuration

Automatic encodingYes
Automatic encoding — Mechanical coding elementYes
Automatic encoding — Type of mechanical coding elementtype B

Encoder

Connection of signal encoders — For strain gauges (full bridges) with 4-conductor connectionYes
Connection of signal encoders — For strain gauges (full bridges) with 6-conductor connectionYes
Connection of signal encoders — Resistance of full bridge, min.40 Ω; when using SIWAREX IS: 50 ohm for 7MH4710-5BA; 105 ohm when using 7MH4710-5CA
Connection of signal encoders — Resistance of full bridge, max.4 100 Ω

Errors/accuracies

Linearity error (relative to input range), (+/-)0.01 %
Error limit according to DIN 1319-10.05 %; of full-scale value
Temperature coefficient, zero point​≤ ±0.1 μV/K
Temperature coefficient, span≤ ±5 ppm/K
Temperature coefficient, span, 4-wire connection (in relation to end value)≤ ±5 ppm/K
Temperature coefficient, span, 6-wire connection (in relation to end value)≤ ±10 ppm/K

Interfaces

Number of RS 485 interfaces1; SIWATOOL V7 or SIWAREX DB or SIEBERT remote display

1. Interface

Interface types — RS 485Yes; 390 Ω, 220 Ω, 390 Ω connectable termination

Interface types

RS 485 — Transmission rate, max.115.2 kbit/s
RS 485 — Cable length, max.1 000 m; ≤ 115 kbps, shielded cable

Interrupts/diagnostics/status information

Diagnostics functionYes; Diagnostic alarm
Substitute values connectableNo
Alarms — Diagnostic alarmYes; Parameterizable
Alarms — Hardware interruptYes; Parameterizable
Diagnoses — Monitoring the supply voltageYes
Diagnoses — Wire breakYes
Diagnoses — short-circuitYes
Diagnoses — Group errorYes
Diagnostics indication LED — ERROR LEDYes; green/red DIAG LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Integrated Functions

CounterNo
Load cell — Non-automatic weighing instrumentNAWI
Load cell — permissible input signal per verification interval, min.0.5 µV/d (d=e)
Load cell — Sampling rate600 Hz
Load cell — Resolution of input signal±500 000 parts pro mV/V
Load cell — Common mode voltage, min.0.25 V
Load cell — Common mode voltage, max.4.75 V
Load cell — input resistance of signal line, typ.4 MΩ
Load cell — input resistance of sense line, typ.2 MΩ
Load cell — Cable length, max.500 m; when using the SIWAREX 7MH4702-8AG cable
Measuring functions — Measuring range — 1 mV/V to +1 mV/VYes; corresponds to a resolution of ±500 000 parts
Measuring functions — Measuring range — 2 mV/V to +2 mV/VYes; corresponds to a resolution of ±1 000 000 parts
Measuring functions — Measuring range — 4 mV/V to +4 mV/VYes; corresponds to a resolution of ±2 000 000 parts

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsNo
Ecological footprint — environmental product declarationYes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]43.15 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]5.1 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]38 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]0.05 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.-25 °C
Ambient temperature during operation — horizontal installation, max.60 °C
Ambient temperature during operation — vertical installation, min.-25 °C
Ambient temperature during operation — vertical installation, max.50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.5 000 m; more than 2 000 m above sea level, the ambient temperature is reduced by -1 °C per 100 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude​1 080 ... 795 hPa (-1 000 ... 5 000 m above sea level)

Decentralized operation

to SIMATIC S7-300Yes
to SIMATIC S7-400Yes
to SIMATIC S7-1200Yes
to SIMATIC S7-1500Yes
to standard PROFIBUS masterYes
to standard PROFINET controllerYes

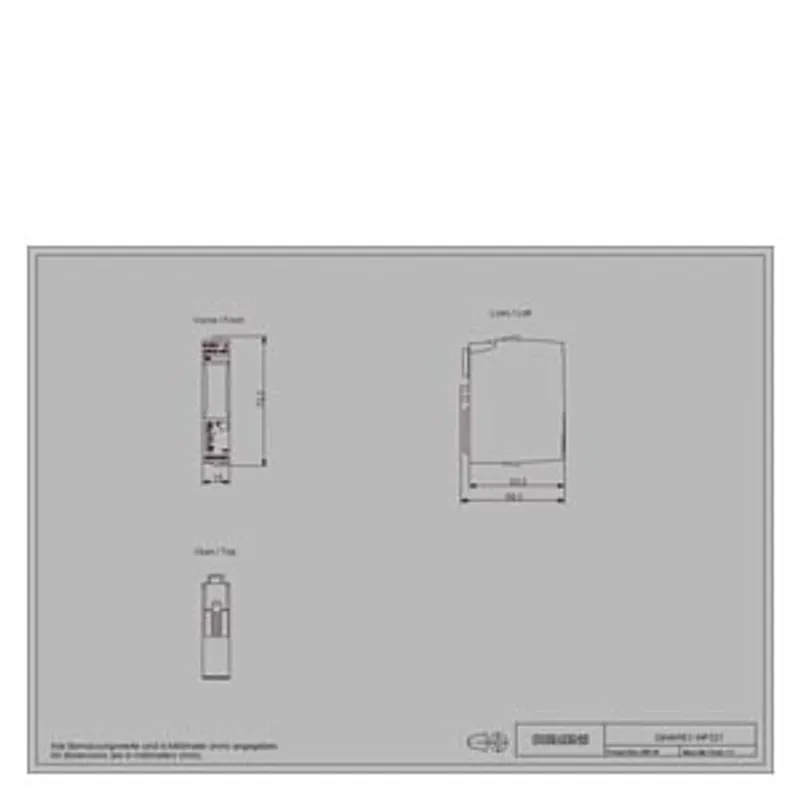

Dimensions

Width15 mm
Height73 mm
Depth58 mm

Weights

Weight, approx.30 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

7MH4138-6AA00-0BA0: frequently asked questions

When can 7MH4138-6AA00-0BA0 be shipped?

7MH4138-6AA00-0BA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7MH4138-6AA00-0BA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7MH4138-6AA00-0BA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7MH4138-6AA00-0BA0, subject to availability and destination.
