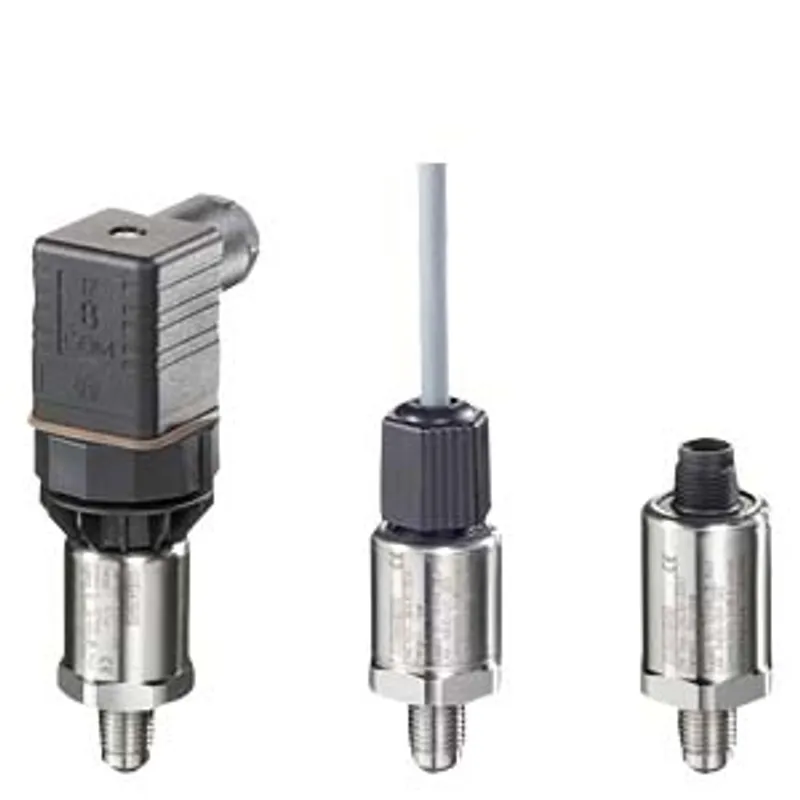

Siemens 7MF1565-3CD70-2AA1

SITRANS P200 pressure transmitter, measuring range: 0-25 bar, gauge pressure, output signal: IO-Link

MPN
7MF1565-3CD70-2AA1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 7MF1565-3CD70-2AA1?

SITRANS P200 pressure transmitter, measuring range: 0-25 bar, gauge pressure, output signal: IO-Link, without Ex, M12 electrical connection, connection: G1/2"M process connection. SITRANS P200 with IO-Link: Additional measuring ranges, process connections, and seal variants can be configured in the PIA selector.

Specifications

General

manufacturer's nameSiemens
supplier nameSiemens
product designationgauge pressure transmitter
product brand nameSITRANS P200
marketing text / 1 / as sloganThe compact pressure transmitter
physical measuring principlepiezo-resistive
pressure measuring range — as relative pressure0 ... 25 bar
largest pressure measuring span25 bar
operating pressure — as relative pressure-1 ... +62.5 bar
process temperature-15 ... +125 °C
ambient temperature — during operation-25 ... +85 °C
ambient temperature — during storage-50 ... +100 °C
relative humidity / with condensation / maximum100 %
protection class IP / of the enclosureIP67
design of the process connectionmale thread
standard / for process connectionEN 837-1
nominal size / of the process connectionG1/2 inch B
type of connection technologyM12
type of electrical connectionFixcon
number of the plug contacts / of the electrical connection4
design rules / for CAx connection symbols — for type of measurementno
design rules / for CAx connection symbols — for signal connection with functionno
design rules / for CAx connection symbols / for explosion protectionno
design rules / for CAx connection symbols / for galvanic isolationno
connection cable versionUnshielded
standard — for electrical connectionIEC 61076-2-101
standard — for safetyEN 61326-1/-2/-3
design of the measuring transducercompact version, sensor integrated
display versionwithout display
design of the housingsingle chamber housing

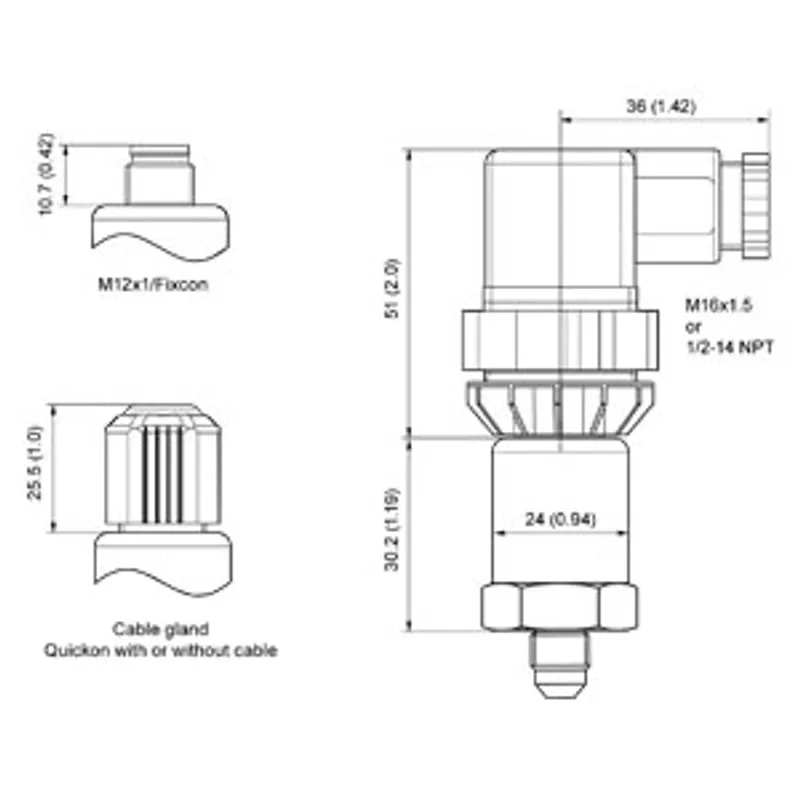

length / of the enclosure120 mm
width / of the enclosure24 mm
height / of the enclosure40.9 mm
material / of the process connectionstainless steel
material number / of the process connection — according to EN 10027-21.4404
material number / of the process connection — according to AISI316L
material / of the enclosurestainless steel
material number / of the enclosure — according to EN 10027-21.4404
material number / of the enclosure — according to AISI316L
material / of the measurement cell membraneceramic (Al2O3)
material / of the seal between sensor and housingfluorocarbon-rubber (FKM/FPM)
material brand name / of the seal between sensor and housingViton
type of voltageDC
supply voltage / at DC / rated value24 V
supply voltage / at DC18 ... 33 V
certificate of suitabilityCE
certificate of suitability — as approval for CanadaUnderwriters Laboratories (UL)
certificate of suitability — as approval for USAUnderwriters Laboratories (UL)
certificate of suitability — drinking water approvalACS, France
Marine classification association — French marine classification society (BV)Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)Yes
Marine classification association — Det Norske Veritas (DNV)Yes
Marine classification association — Germanische Lloyd (GL)Yes
Marine classification association — Lloyds Register of Shipping (LRS)Yes
pressurized device category / according to Directive DGRL 97/23/ECArticle 3.3
fluid group / according to Directive DGRL 97/23/ECgas group 1, liquid group 1
instance data sheet / for productPressure
MTBF1 066 a
standard / for MTBF determinationSN 29500
measuring procedure / for MTBF determinationNumber of registered failures
range of validity / for MTBF determinationMeasuring device

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

7MF1565-3CD70-2AA1: frequently asked questions

When can 7MF1565-3CD70-2AA1 be shipped?

7MF1565-3CD70-2AA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7MF1565-3CD70-2AA1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7MF1565-3CD70-2AA1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7MF1565-3CD70-2AA1, subject to availability and destination.
