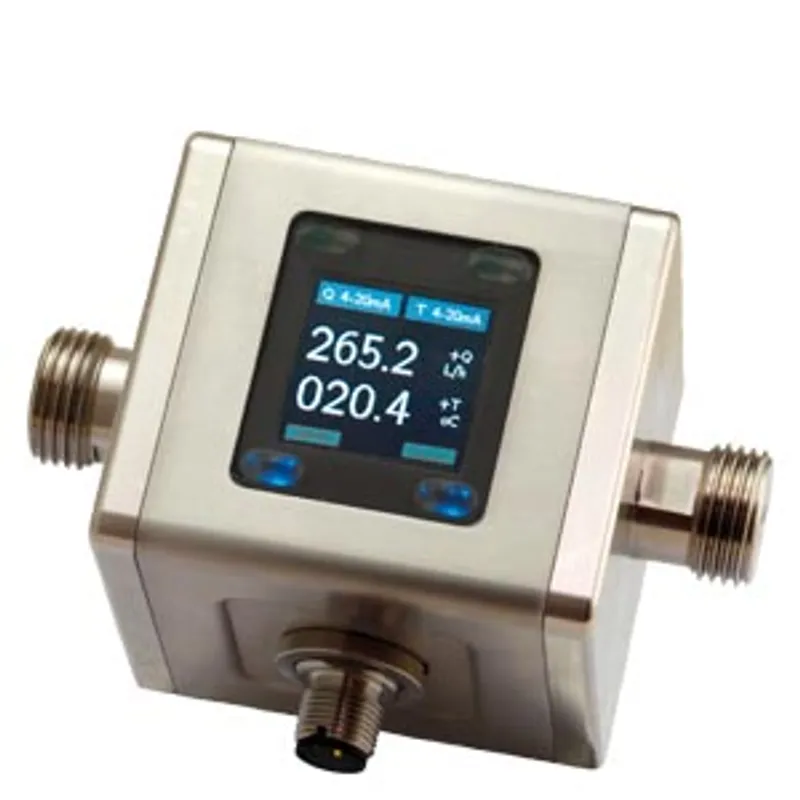

Siemens 7ME6010-1FA00
SITRANS FM100 flow meter, process connection: 1/2" NPT female thread, measuring range: 0.011 … 2.6 gal/min
- MPN
- 7ME6010-1FA00
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 7ME6010-1FA00?
SITRANS FM100 flow meter, process connection: 1/2" NPT female thread, measuring range: 0.011 … 2.6 gal/min, transmitter design: compact design without cable, seal material: FKM/FPM, quality test certificate: without test certificate.
Specifications
General
| Hersteller-Name | Siemens |
| Produkt-Markenname | SITRANS FM100 |
| Produkt-Bezeichnung | Volumendurchflussmesser, Temperaturmesser |
Elektrische Daten Eingang
| physikalisches Messprinzip | Elektromagnetische Induktion |
| relative Messgenauigkeit | 2 % |
| relative Messgenauigkeit des Massendurchflusses | 0,8 % |
Elektrische Daten Ausgang
| Signalfrequenz am Frequenzausgang bei ohmscher Last minimal | 50 Hz |
| Signalfrequenz am Frequenzausgang bei ohmscher Last maximal | 1 000 Hz |
| Ausgangsspannung am aktiven Impulsausgang Nennwert | 10 V |
| Bürde am Analogausgang maximal | 500 Ω |
| Versorgungsspannung bei DC | 19 ... 30 V |
Umgebungsbedingungen
| Umgebungstemperatur während Betrieb minimal | -20 °C |
| Umgebungstemperatur während Betrieb maximal | 60 °C |
| Prozesstemperatur minimal | -20 °C |
| Prozesstemperatur maximal | 70 °C |
| kinematische Viskosität des Silikonöls M50 als Füllflüssigkeit bei 20 °C | 70 mm²/s |
| Leitfähigkeit des Messstoffs minimal erforderlich | 20 µS/cm |
Mechanische Daten
| Bauform der Dichtfläche des Prozessanschlusses | NPT |
| Schutzart IP des Messumformers | IP67 |
| Material des Gehäuses des Messaufnehmers | Edelstahl |
| Betriebsdruck als Relativdruck maximal | 16 bar |
| Norm für Prozessanschluss | ANSI/ASME B1.20.1 |
| Ausführung des Gehäuses | Kompakt, Messumformer integriert |
| Ausführung des Prozessanschlusses | Innengewinde |
| Nennweite des Prozessanschlusses | 1/2 inch |
| Material des Prozessanschlusses | Edelstahl |
| Material-Nummer des Prozessanschlusses gemäß DIN EN 10027-2 | 1.4404 |
| Einbaulänge | 108 mm |
