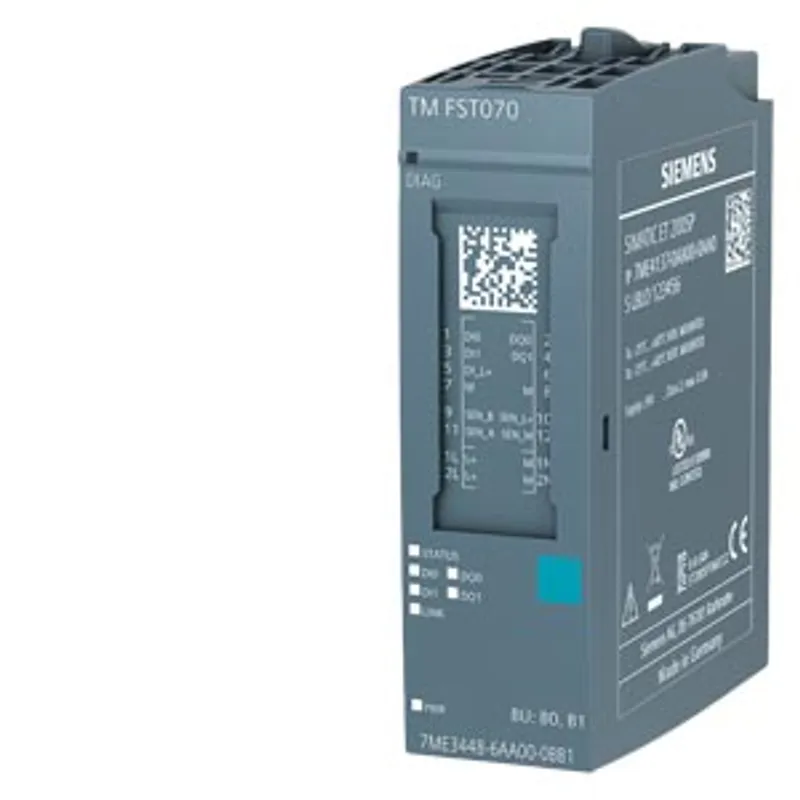

Siemens 7ME3448-6AA00-0BB1

The technology module SITRANS FST070 is a ultrasonic flow transmitter for the SIMATIC ET 200SP

MPN
7ME3448-6AA00-0BB1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 7ME3448-6AA00-0BB1?

The technology module SITRANS FST070 is a ultrasonic flow transmitter for the SIMATIC ET 200SP. The TM FCT070 flow transmitter can be operated directly in the SIMATIC PCS 7 or in TIA Portal with the FST070 faceplates. TM FST070 offers real-time data processing and the display of all measuring and status data of the ultrasonic flowmeter. The TM FST070 can work with FSS100, FSS200 and FSS300. The flow meters need the FS DSL interface to connect them to the TM FST070.

Specifications

General information

Product type designationTM FST070
Firmware versionV1.0
Firmware version — FW update possibleYes
usable BaseUnitsBU type B1
Color code for module-specific color-coded labelCC40
Product function — I&M dataYes; I&M 0
Engineering with — STEP 7 TIA Portal configurable/integrated from versionV17
Engineering with — STEP 7 configurable/integrated from versionV5.6 SP4 and higher
Engineering with — PROFINET from GSD version/GSD revisionGSDML V2.35

Supply voltage

Rated value (DC)24 V
Load voltage L+ — Rated value (DC)24 V
Load voltage L+ — permissible range, lower limit (DC)19.2 V
Load voltage L+ — permissible range, upper limit (DC)28.8 V
Load voltage L+ — Short-circuit protectionYes
Load voltage L+ — Reverse polarity protectionYes; against destruction

Input current

Current consumption, max.500 mA

Power

Active power input1.2 W

Address area

Address space per module — Inputs132 byte
Address space per module — Outputs11 byte

Hardware configuration

Automatic encodingYes
Automatic encoding — Mechanical coding elementYes
Automatic encoding — Type of mechanical coding elementtype D

Digital inputs

Number of digital inputs2
Digital inputs, parameterizableYes
Input characteristic curve in accordance with IEC 61131, type 3Yes
Digital input functions, parameterizable — product function, parameterizableforced output, freeze output, zero adjustment, counter 1 reset, counter 2 reset, counter 3 reset
Digital input functions, parameterizable — Freely usable digital inputYes
Input voltage — Type of input voltageDC
Input voltage — Rated value (DC)24 V
Input voltage — for signal "0"-30 to +5 V
Input voltage — for signal "1"+11 to +30V
Input voltage — permissible voltage at input, min.-30 V
Input voltage — permissible voltage at input, max.30 V
Input current — for signal "1", typ.2.5 mA
Cable length — shielded, max.50 m; depending on load and cable quality
Cable length — unshielded, max.25 m; depending on load and cable quality

Digital outputs

Number of digital outputs2
Current-sourcingYes
Digital outputs, parameterizableYes
Short-circuit protectionYes; electronic/thermal
Digital output functions, parameterizable — Freely usable digital outputYes
Switching capacity of the outputs — with resistive load, max.300 mA
Switching capacity of the outputs — on lamp load, max.8 W
Load resistance range — lower limit80 Ω
Load resistance range — upper limit10 kΩ
Output voltage — Type of output voltageDC
Output voltage — for signal "0", max.1 V
Output voltage — for signal "1", min.23.2 V; L+ (-0.8 V)
Output current — for signal "1" rated value300 mA
Switching frequency — switching frequency, min.0 Hz
Switching frequency — switching frequency, max.12 Hz
Pulse output (passive) — Output voltage, max.23.2 V
Pulse output (passive) — ampacity of the external power supply300 mA
Frequency output — number of frequency outputs1
Frequency output — percentage pulse/pause ratio50 %
Cable length — shielded, max.50 m; depending on load and cable quality
Cable length — unshielded, max.25 m; depending on load and cable quality

Errors/accuracies

relative suppression of the residual flow / min.0 %
relative suppression of the residual flow / max.9.9 %

Interfaces

Design of the interface for communicationDigital Sensor Link (DSL), ET 200SP backplane bus

Protocols

Bus protocol/transmission protocolPROFINET

Interrupts/diagnostics/status information

Substitute values connectableYes; Parameterizable
Alarms — Diagnostic alarmYes
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
Diagnostics indication LED — for module diagnosticsYes; green/red DIAG LED

Integrated Functions

Measuring functions — Measured variablevolume flow, standard flow, density, temperature
Measuring functions — Measuring range — 1 mV/V to +1 mV/Vcorresponds to a resolution of ±500 000 parts

Potential separation

Potential separationto all inputs, to all supplies, to all communications interfaces
Design of electrical isolationgalvanic isolation
Potential separation channels — between the channelsNo
Potential separation channels — between the channels and backplane busYes

Permissible potential difference

between different circuits75 V DC/60 V AC (base isolation)

Isolation

Isolation tested with707 V DC (type test)

Ambient conditions

Ambient temperature during operation — horizontal installation, min.-25 °C
Ambient temperature during operation — horizontal installation, max.60 °C; Observe derating
Ambient temperature during operation — vertical installation, min.-25 °C
Ambient temperature during operation — vertical installation, max.50 °C; Observe derating
Ambient temperature during storage/transportation — Storage, min.-40 °C
Ambient temperature during storage/transportation — Storage, max.70 °C
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Relative humidity — Operation, min.5 %
Relative humidity — Operation, max.95 %

Mechanics/material

Material of housing — of the transmitterplastic

Decentralized operation

to SIMATIC S7-300Yes
to SIMATIC S7-400Yes
to SIMATIC S7-1200Yes
to SIMATIC S7-1500Yes
to standard PROFINET controllerYes

Dimensions

Width20 mm
Height73 mm
Depth58 mm

Weights

Weight, approx.32 g
